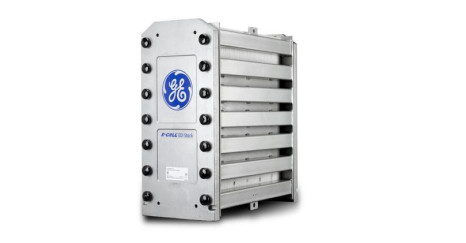

GE E-Cell-3X Stack Industrial Electrodeionization Stacks Ultrapure Water Edi Module Silica SiO2 < 1.0 Mg/l < 1.0 Ppm

E-Cell*-3X is designed to

· Provide Ultrapure Water for industrial applications including Power, Semiconductor, and General Industry.

· Produce Mixed Bed quality water continuously.

· Require no caustic or acid for the regeneration of ion exchange resin within the stack.

· Be leak-free, guaranteed.

· Eliminate brine injection and concentrate recirculation, simplifying system design.

Description and Use

E-Cell-3X stacks are electrodeionization (EDI) stacks that use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water for the E-Cell-3X is at an Ultrapure level required in today's demanding applications.

Typical Applications

· Microelectronics

· Power Generation (NOx, Boiler Feed)

· General Industry

Quality Assurance

· CE, UL & CSA marked

· Manufactured in an ISO 9001:2000 facility

The following figure shows GE, Suez and Veolia from left to right (all the same product: Veolia EDI Module)

Typical Application Scenarios

Product water from the E-Cell-3X can be reliably used to meet today’s most demanding ultrapure water applications, including but not limited to:

- Ultrapure water for rinsing semiconductor chips, solar panels, and other microelectronic devices.

- Demineralized feed water for high-pressure boilers in power plants and other heavy industrial sites.

- Ultrapure water for green hydrogen generation in electrolyzers.

For ease of design and greater confidence in your EDI application, we offer E-Cell performance predictions and guarantees, which you can obtain through Winflows* software or by contacting us.

Quality Assurance

-CE, RoHS, CSA & EAC marked

-Manufactured in an ISO 9001 and ISO 14001 facility

-Certified with UKCA

-E-Cell-3X Stacks are Halal certified by the Islamic Food and Nutrition Council of America (IFANCA®)

Actual performance may vary depending on site conditions. Reference E-Calc projection software to verify actual performance. Patents pending.

1 Co-flow operation is acceptable when feed hardness concentrations are <0.1 ppm as CaCO3.

Other stack details can be found on the stack specific Fact Sheets.

For more models, please click: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
