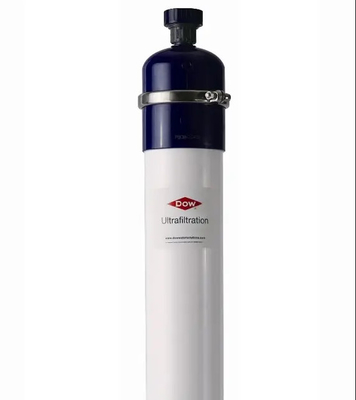

DOW Ultrafiltration (UF) modules are crafted from PVDF hollow fiber membranes of high mechanical strength. These modules offer outstanding performance and industry-leading membrane area. They possess the following properties and characteristics:
• A 0.03 µm nominal pore diameter for the removal of bacteria, viruses, and particulates, including colloids, to safeguard downstream processes such as RO.
• PVDF polymeric hollow fibers provide high mechanical strength and chemical resistance, ensuring a long membrane life and reliable operation.
• Hydrophilic PVDF fibers facilitate easy cleaning and wettability, aiding in maintaining long-term performance.
• The Outside-In flow configuration enables a wide range of solids in the feed water, minimizing the need for pretreatment processes and reducing the backwash volume compared to Inside-Out configurations. U-PVC housing helps eliminate the need for costly pressure vessels.
The 2860, which is shorter in length, is recommended for smaller systems and where building height is a concern. The 2880 has a higher membrane area within the same footprint, providing a more economical design.
DOW Ultrafiltration Modules can be utilized in a wide variety of treatment applications, such as surface water, seawater, and industrial and municipal wastewaters.
Product Specifications
|
Product
|
Type
|
Membrane Area
|
Hold-Up Volume
|
Weight (empty/water filled) |
| |
|
m2 |
ft2 |
liters |
gallons |
kg |
lbs |
| SFP-2860 |
Industrial |
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
| SFD-2860 |
NSF/ANSI 61
Drinking Water
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
| SFP-2880 |
Industrial |
77 |
829 |
39 |
10.3 |
61/100 |
135/220 |
| SFD-2880 |
NSF/ANSI 61 and 419
Drinking Water
|
77 |
829 |
39 |
10.3 |
61/100 |
135/220 |

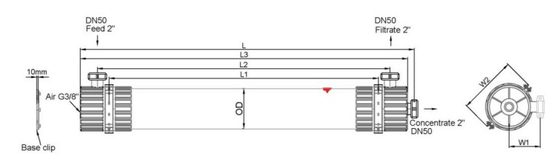

| Figure 1 |
SFP-2860, SFD-2860, SFP-2880, and SFD-2880 (8-inch diameter) |
|
Product
|
Units
|
|
Length |
|
Diameter |
Width |
|
| |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
| SFP-2860 and SFD-2860 |
SI (mm) |
1860±3 |
1500 |
1630±3 |
1820±3 |
225 |
180 |
342 |
| US (inch) |
73.2±0.1 |
59.1 |
64.2±0.1 |
71.7±0.1 |
8.9 |
7.1 |
13.5 |
| SFP-2880 and SFD-2880 |
SI (mm) |
2360±3 |
2000 |
2130±3 |
2320±3 |
225 |
180 |
342 |
| US (inch) |
92.9±0.1 |
78.7 |
83.9±0.1 |
91.3±0.1 |
8.9 |
7.1 |
13.5 |
Operating Limits
| |
SI Units |
US Units |
| Filtrate Flux (25ºC) |
40 – 90 l/m2hr |
24 – 53 gfd |
| Flow Range Per Module1 |
2.0 – 6.9 m3/hr |
8.8 – 30.4 gpm |
| Temperature |
1 – 40ºC |
34 – 104ºF |
| Maximum Inlet Module Pressure (20ºC) |
6.25 bar |
90.65 psi |
| Maximum Inlet Module Pressure (40ºC) |
4.75 bar |
68.89 psi |
| Maximum Operating TMP |
2.1 bar |
30.5 psi |
| Maximum Operating Air Scour Flow |
12 nm3/hr |
7.1 scfm |
| Maximum Backwash Pressure |
2.5 bar |
36 psi |
| Operating pH |
2 – 11 |
|
| Maximum NaOCl |
2,000 mg/L |
|
| Maximum Particle Size |
300 µ |
|
| Flow Configuration |
Outside in, dead end flow |
| Expected Filtrate Turbidity |
≤ 0.1 NTU |
|
| Expected Filtrate SDI |
≤ 2.5 |
|
1 Flow range represents DOW™ Ultrafiltration SFP-2860, SFD-2860, SFP-2880, and SFP-2880 Modules for filtrate flux range shown
Important Information
Proper start-up of an ultrafiltration system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved.
Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
