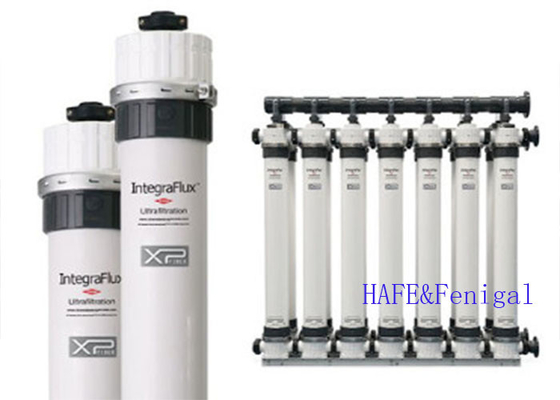

51m² 8-inch diameter DuPont Ultrafiltration Membrane Modules SFP 2860XP / SFD 2860XP
IntegraFlux™ Ultrafiltration (UF) modules with XP fiber are made from high permeability, high mechanical strength, hollow fiber PVDF membranes. The modules provide excellent performance, industry leading membrane area with low energy and chemical consumption. IntegraFlux™ modules have the following general properties and characteristics: l
- Up to 35% higher permeability than previous generation modules helping to improve operating efficiencies and productivity l
- 0.03 µm nominal pore diameter for removal of bacteria, viruses, and particulates including colloids to protect downstream processes such as RO
- PVDF polymeric hollow fibers for high mechanical strength with excellent chemical resistance providing long membrane life and reliable operation
- Outside-In flow configuration allowing a wide range of solids in the feed water minimizing the need for pretreatment processes and reducing the backwash volume compared to Inside-Out configurations
Product Specifications
|
Membrane area
|
Module volume
|
Weight
(empty/ water filled) |
| Model |
Type |
/ |
m2 |
ft2 |
Liters |
Gallons |
Kg/lbs |
Kg/lbs |
| SFP-2860XP |
Industrial |
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
| SFD-2860XP |
NSF/ANSI 61 and 419 |
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |

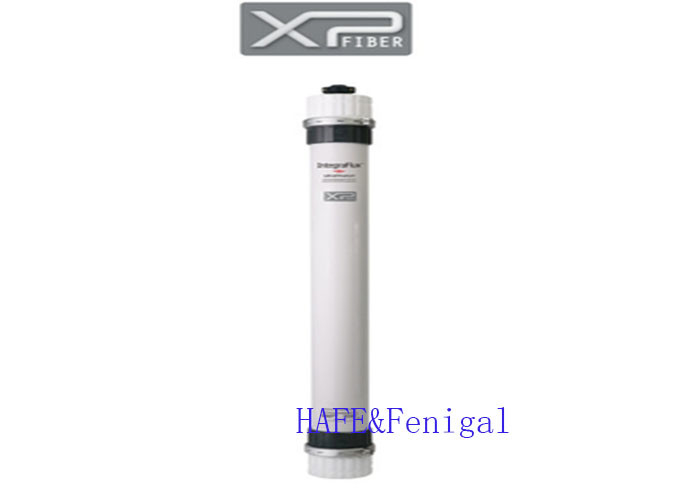

Figure 1: SFP and SFD 2860XP (8-inch diameter)
| Properties |
|
Length |
|
|
Diameter |
Width |
|
| Units |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
| SI (mm) |
1860 |
1500 |
1630 |
1820 |
225 |
180 |
342 |
Operating Parameters
| |
SI units |
US units |
| Filtrate Flux @ 25ºC |
40-110 l/m2/ hr |
24-65 gfd |
| Flow range |
2.0 – 8.5 m3/hr |
8.8 – 37.4 gpm |
| Temperature |
1-40ºC |
34-104ºF |
| Max. inlet module pressure (@ 20ºC) |
6.25 bar |
90.65 psi |
| Max. operating TMP |
2.1 bar |
30.5 psi |
| Max operating air scour flow |
12 nm3/hr |
7.1 scfm |
| Max backwash pressure |
2.5 bar |
36 psi |
| Operating pH |
2- 11 |
| NaOCl (max.) |
2,000 mg/L |
| Particle size (max.) |
300 µm |
| Flow configuration |
Outside in,dead end flow |
| Expected filtrate turbidity |
≤0.1 NTU |
| Expected filtrate SDI |
≤2.5 |
| / |
|
| / |
|
The difference between 28XX and 26XX

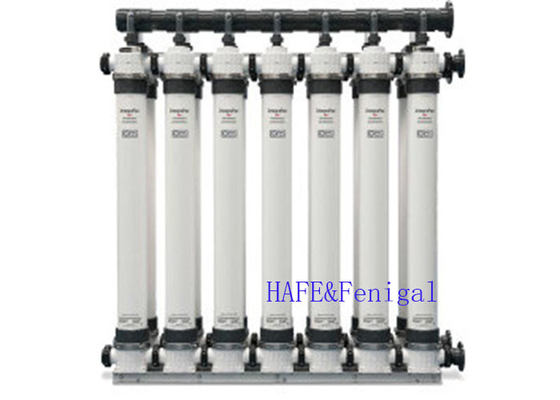

MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
