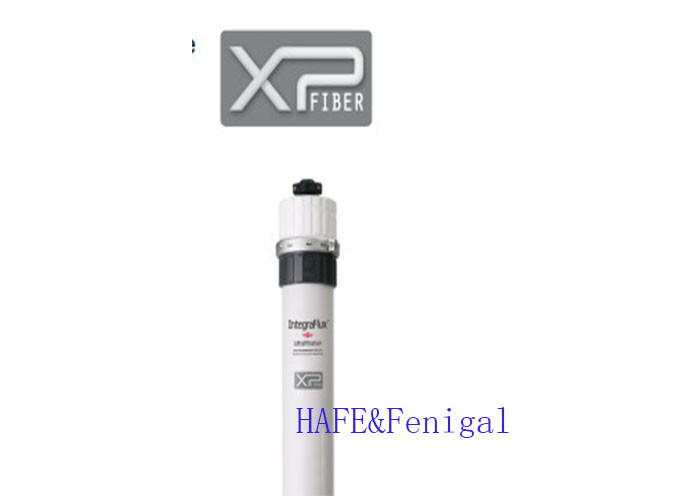

77 m² 0.03 µm PVDF DuPont Ultrafiltration Membrane Modules SFP 2880XP / SFD 2880XP
IntegraFlux™ Ultrafiltration (UF) modules with XP fiber are made from high permeability, high mechanical strength, hollow fiber PVDF membranes. The modules provide excellent performance, industry leading membrane area with low energy and chemical consumption. IntegraFlux™ modules have the following general properties and characteristics:
-
Exceptional Filtration Precision: Achieve superior filtration efficiency with these modules, effectively eliminating suspended solids, colloids, bacteria, and contaminants to ensure pristine water quality.
-
Chemical Resilience: Engineered to withstand a variety of chemicals encountered in water treatment, guaranteeing long-lasting performance and reliability.
-
Durable Design: Constructed with state-of-the-art materials, the SFP 2880XP and SFD 2880XP modules are built to last, delivering consistent results even in challenging operational conditions.
-
Energy-Efficient Operation: Operate efficiently at low pressures, reducing energy consumption and offering sustainable cost savings over the long term.
-
Versatile Applications: Tailored for diverse industrial needs including water purification and wastewater treatment, these modules offer a versatile and dependable solution for water filtration requirements.
Product Specifications
|
Membrane area
|
Module volume
|
Weight
(empty / water filled) |
| Model |
Type |
/ |
m2 |
ft2 |
Liters |
Gallons |
Kg/lbs |
Kg/lbs |
| SFP-2880XP |
Industrial |
|
77 |
829 |
39 |
10.3 |
61/100 |
135/220 |
| SFD-2880XP |
NSF/ANSI 61 and 419 |
|
77 |
829 |
39 |
10.3 |
61/100 |
135/220 |

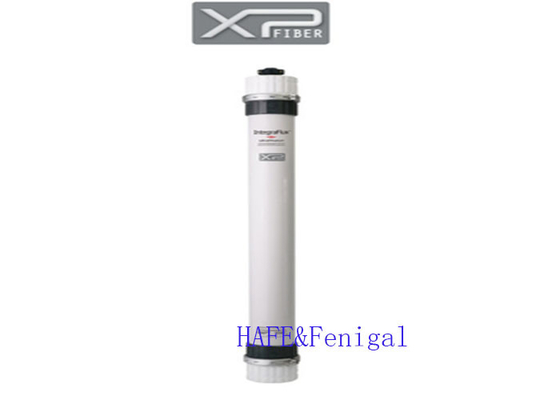

Figure 1: SFP and SFD 2860XP (8-inch diameter)
| Properties |
|
Length |
|
|
Diameter |
Width |
|
| Units |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
| SI (mm) |
2360 |
2000 |
2130 |
2320 |
225 |
180 |
342 |
Operating Parameters
| |
SI units |
US units |
| Filtrate Flux @ 25ºC |
40-110 l/m2/ hr |
24-65 gfd |
| Flow range |
2.0 – 8.5 m3/hr |
8.8 – 37.4 gpm |
| Temperature |
1-40ºC |
34-104ºF |
| Max. inlet module pressure (@ 20ºC) |
6.25 bar |
90.65 psi |
| Max. operating TMP |
2.1 bar |
30.5 psi |
| Max operating air scour flow |
12 nm3/hr |
7.1 scfm |
| Max backwash pressure |
2.5 bar |
36 psi |
| Operating pH |
2- 11 |
| NaOCl (max.) |
2,000 mg/L |
| Particle size (max.) |
300 µm |
| Flow configuration |
Outside in,dead end flow |
| Expected filtrate turbidity |
≤0.1 NTU |
| Expected filtrate SDI |
≤2.5 |
| / |
|
| / |
|
The difference between 28XX and 26XX

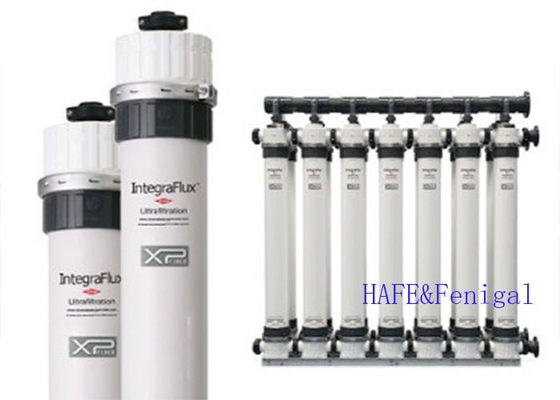

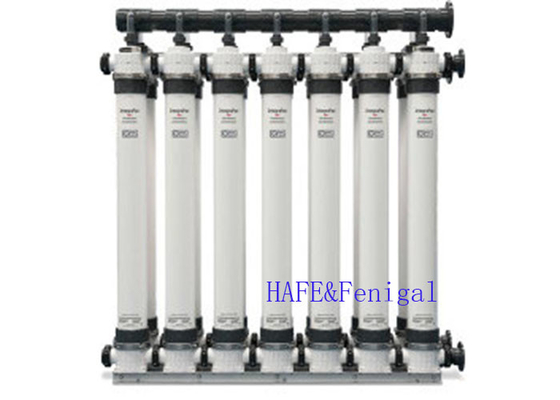

MODULE INSTALLATION
