DOW Ultrafiltration Membrane Modules SFP-2660 / SFD-2660 PVDF 0.03 µm 1.3 – 4.0 m3/hr
Product Details
| Membrane Area: | 33m² | Nominal Pore Diameter: | 0.03 µm |
|---|---|---|---|
| Operating Pressure: | 0.35MPa | Flow Range: | 1.3 – 4.0 M3/hr |
| Filtration Accuracy: | 0.01-0.1µm | Filter Method: | External Pressure |
| Temperature: | 1-40ºC | Particle Size (max.): | 300 µ |
| Max Backwash Pressure: | 2.5 Bar | TSS (max.): | 100 Mg/L |
| Highlight |
PVDF Ultrafiltration Membrane Modules,0.03 µm Ultrafiltration Membrane Modules,DOW Ultrafiltration Membrane Modules |
||
Product Description
DOW Ultrafiltration Membrane Modules SFP-2660 / SFD-2660 PVDF 0.03 µm 1.3 – 4.0 m3/hr

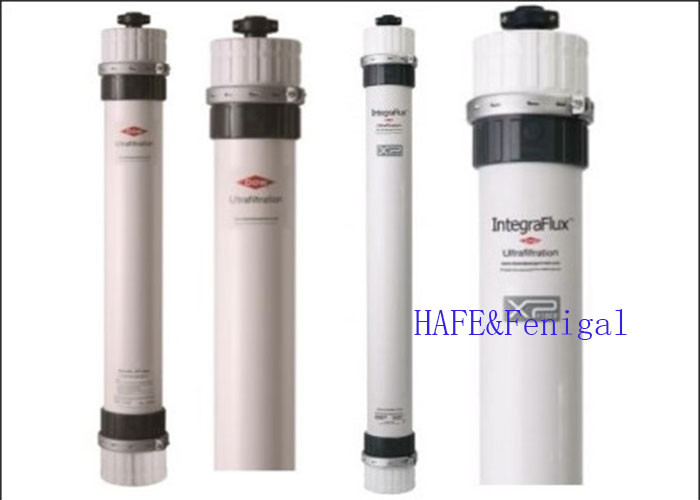

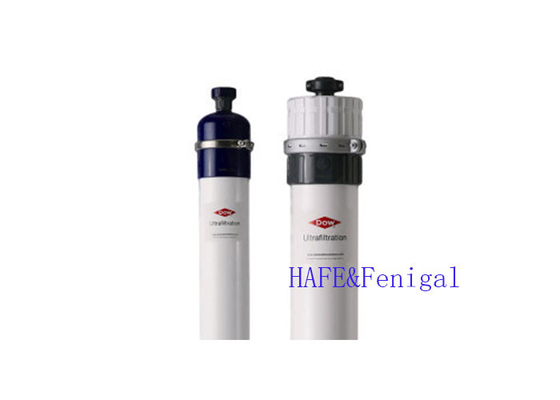

The DOW™ ultrafiltration (UF) modules are made from high strength, hollow fiber membranes that have excellent features and benefits:
- 1.Hydrophilic PVDF fiber: This fiber is easy to clean and wet, which helps to maintain stable performance over the long term.
- 2.External pressure structure: It can tolerate higher influent solid content, thereby reducing the pretreatment process.
- 3.U-PVC shell: No expensive pressure vessels are required, reducing costs.
- 4.Suitable for large-capacity systems: Suitable for systems with a capacity of more than 50m3/hr (220gpm).
- 5.Large effective membrane area: Larger diameter and packing density enable more economical membrane system design.
- 6.Wide application areas: Widely used in water treatment fields such as surface water, seawater, industrial wastewater and secondary biochemical effluent.
- 7.0.03 µm nominal membrane pore size: It can remove bacteria, viruses, particulate matter and colloids, and protect subsequent process equipment such as reverse osmosis systems.
- 8.High strength and strong chemical resistance: Ensure a longer service life of the membrane assembly.
Product Specifications
Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
Operating Parameters
Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
Product Details:
Payment & Shipping Terms:
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
