DuPont™ SFP-2880 For Seawater Desalination / Brackish Water
Product Overview
The DuPont™ SFP-2880 is a premium spiral-wound polyamide RO membrane element designed for demanding industrial and commercial water treatment applications. Engineered for high salt rejection, durability, and consistent performance, it delivers reliable filtration for brackish water desalination, wastewater reuse, and process water purification.
Typical Applications
-
Brackish water desalination (groundwater, wells)
-
Industrial process water (food & beverage, pharmaceuticals)
-
Wastewater recovery & reuse (mining, textiles, electronics)
-
Pre-treatment for ultrapure water (power plants, semiconductors)
Performance Specifications:
▶ Filtration Area: 55m² per module
▶ Operating Pressure: 0.1-0.3MPa
▶ pH Range: 2-11 (continuous operation)
▶ Maximum Feed Temperature: 40°C
▶ Chlorine Tolerance: <500,000ppm·h
Typical Applications:
✓ RO/NF pretreatment for desalination plants
✓ Industrial wastewater reuse (textile, petrochemical, power)
✓ Surface water treatment for municipal supply
✓ Food & beverage process water purification
System Advantages:
- 30% lower energy consumption than comparable UF modules
- 3-5 year typical membrane lifespan with proper maintenance
- Automated cleaning cycles maintain stable operation
- NSF/ANSI 61 certified for drinking water applications
For technical specifications and system design guidelines, please contact your local DOW Water Solutions representative.
*Based on internal testing at standard conditions (25°C, 100kDa PEG solution). Actual performance may vary by application.
.
Why Choose DuPont™ SFP-2880?
Backed by DuPont’s legacy of membrane innovation, the SFP-2880 ensures high productivity, low energy consumption, and extended service life—reducing total cost of ownership (TCO) for industrial water systems.
Compliance: NSF/ANSI 61 (if applicable), FDA compliant (for food-contact applications, if relevant).
Product Specifications
| Product Specifications |
| Weight Membrane area Module volume (empty/ water filled) |
| Model |
Type |
Part # |
m2 |
ft2 |
Liters |
Gallons |
Kg |
lbs |
| SFP-2880 |
Pretreatment |
280934 |
77 |
829 |
39 |
10.3 |
61/100 |
135/220 |
| SFD-2880 |
NSF/ANSI 61
Drinking water
|
324169 |
77 |
829 |
39 |
10.3 |
61/100 |
135/220 |

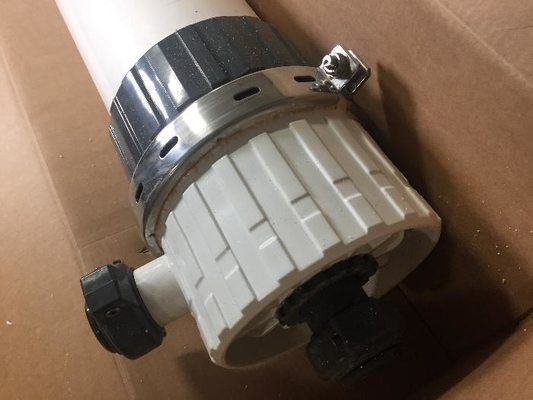

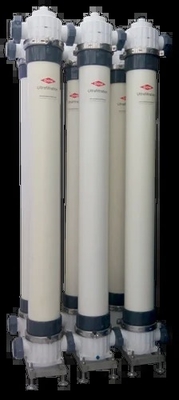

Figure 1: SFP and SFD 2880 (8-inch diameter)
Operating Parameters
|
SI units |
US units |
| Filtrate Flux @ 25ºC |
40-120 l/m2/ hr |
24-70 gfd |
| Flow range |
3.1-9.3 m3/hr |
13.6 – 40.9 gpm |
| Temperature |
1-40ºC |
34-104ºF |
| Max. inlet module pressure (@ 20ºC) |
6.25 bar |
93.75 psi |
| Max. operating TMP |
2.1 bar |
30 psi |
| Max operating air scour flow |
12 nm3/hr |
7.1 scfm |
| Max backwash pressure |
2.5 bar |
36 psi |
| Operating pH |
2- 11 |
| NaOCl (max.) |
2,000 mg/L |
| TSS (max.) |
100 mg/L |
| Turbidity (max.) |
300 ntu |
| Particle size (max.) |
300 µ |
| Flow configuration |
Outside in, dead end flow |
| Expected filtrate turbidity |
≤0.1 NTU |
| Expected filtrate SDI |
≤2.5 |
Ensuring that the UF system is properly started is critical to preparing the membrane for operation and preventing potential membrane damage. Following the correct startup sequence is essential to maintaining system parameters within design specifications, helping to achieve water quality and productivity goals.
Before beginning the startup procedure, membrane preconditioning, membrane module installation, instrumentation calibration, and system checks must be completed per the guidelines outlined in the product technical manual.
To prevent membrane damage, sudden pressure changes during startup, shutdown, cleaning, or other sequences should be avoided. Before startup, flush the UF system thoroughly to eliminate any remaining shipping solution. In addition, purge any residual air from the system before commencing operation.
Start the unit manually, with the goal of achieving an initial permeate flow rate of 60% of the design capacity. Depending on the application, it may be necessary to discard the permeate obtained during initial operation. Refer to the product technical manual for detailed instructions.
General information
If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty (Form No. 795-00027) will be null and void.
To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
Regulatory note NSF/ANSI 61 certified drinking water modules require specific conditioning procedures prior to producing potable water. Please refer to the product technical manual flushing section for specific procedures. Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use and sale.
