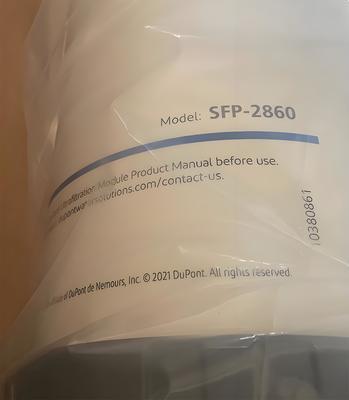

DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems

DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems

  • DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
  • DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
  • DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
Product Details:
Place of Origin: China
Brand Name: Dupont
Certification: CE
Model Number: SFP-2860
Document: Model SFP-2860, SFD 2860, S...80.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: Western Union,T/T
Supply Ability: 60000 Units per Month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (139)
Ultrafiltration Membrane Modules (57)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (136)
Moon Balloon Light (131)
Tripod LED Balloons (115)
Inflatable Light Tower (62)
Terminal Block Accessories (6)
Detailed Product Description
2860 Module Flow Range: 2.0 – 6.1 M3 /hr 2860 Module Flow Range Membrane Area: 51 M²
2860 Module Nominal Pore Diameter: 0.03 µm 2860 Module Material: PVDF
Diameter Of 2860 Module: 8 Inch 2860 Module Flow Direction Settings: External Pressure Structure, Dead End Filtration
Component NaOCl (max.): 2,000 Mg/L Component Max Backwash Pressure: 2.5 Bar
Component Main Usage: Water Treatment Pretreatment Advantages: High Filtration Accuracy

DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for RO Systems
DuPont SFP-2860 ultrafiltration membrane delivers superior water treatment performance with its advanced hollow fiber technology. Designed for industrial applications, this membrane provides excellent removal efficiency for turbidity, bacteria, and viruses while maintaining high flux rates. Its robust construction ensures reliable operation in challenging water conditions with strong chemical resistance. Ideal for reverse osmosis pretreatment, wastewater reuse, and process water purification, the SFP-2860 offers low energy consumption, reduced maintenance requirements, and extended service life. The system features easy scalability for various capacity needs and simplified maintenance procedures.
DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems 0
Key Features
  • Precision Filtration: 0.03 μm nominal pore size removes bacteria, viruses, colloids, and particulates to protect downstream RO systems.
  • Engineered Durability: Hydrophilic PVDF fibers offer superior mechanical strength and chemical resistance (pH 2-11) for extended service life.
  • Space-Saving Design: Shorter length (1,860 mm / 73.2 in) ideal for low-ceiling installations with 51 m² (549 ft²) effective membrane area.
  • Broad Compatibility: Processes surface water, seawater, industrial wastewater, and municipal effluents.
Technical Specifications
Attribute Value
Membrane Area 51 m² (549 ft²)
Flux Range (25°C) 40–90 LMH
Max TMP 2.1 bar
Flow Rate 2.0–6.9 m³/hr
Weight (Empty) 48kg
Target Applications Industrial wastewater reuse, Seawater pretreatment for desalination, Compact containerized plants, Cooling tower blowdown recovery
Operating Parameters
Parameter SI Units US Units
Filtrate Flux @ 25ºC 40-120 l/m2/hr 24-70 gfd
Flow range 2.0 - 6.1 m3/hr 9.2 - 26.7 gpm
Temperature 1-40ºC 34-104ºF
Max. inlet module pressure (@ 20ºC) 6.25 bar 93.75 psi
Max. operating TMP 2.1 bar 30 psi
Max operating air scour flow 12 nm3/hr 7.1 scfm
Max backwash pressure 2.5 bar 36 psi
Operating pH 2-11
Performance Guarantees
  • Filtrate turbidity ≤0.1 NTU
  • Filtrate SDI ≤2.5
Important Operation Guidelines

Proper start-up of a UF system is indispensable for preparing the membranes for operational service and preventing membrane damage. Adhering to the correct start-up sequence also contributes to ensuring that the operating parameters of the system conform to the design specifications.

Before commencing the system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration, and other system checks should be accomplished. Kindly refer to the product technical manual.

NOTICE: NSF/ANSI 61 certified drinking water modules demand specific conditioning procedures before generating potable water. Please refer to the flushing section of the product technical manual for detailed procedures.
Regulatory Note: The utilization of this product does not inevitably ensure the elimination of cysts and pathogens from water. Effective reduction depends on the complete system design as well as the operation and maintenance of the system.
