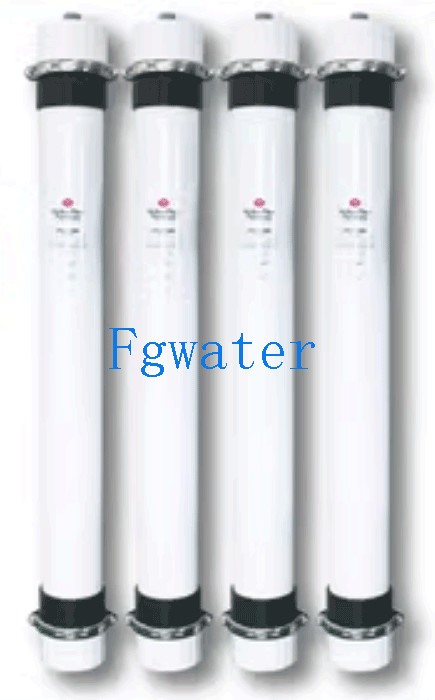

Dow Ultrafiltration Membrane Module SFD-2660 A Compact and Versatile Solution

Features and Benefits:

• High-performance filtration: Removes bacteria, viruses, and colloids with a 0.03-micron pore size.

• Durability: PVDF polymer fibers offer strength and chemical resistance for long-lasting performance.

• Easy maintenance: Hydrophilic modified fibers ensure efficient cleaning and prevent fouling.

• Flexible pretreatment: External pressure design accommodates larger particles, reducing pretreatment needs.

• Compact design: Small size and U-PVC shells eliminate the need for bulky pressure vessels.

Ideal Applications:

• Systems with a capacity of up to 50 m³/hr (220 gpm).

• Treatment of a variety of influents, including surface water, seawater, industrial wastewater, and secondary sewage.

Operating Parameters:

• Temperature: 5-45°C (41-113°F)

• pH: 5-9

• Feed water turbidity: <5 NTU

• Feed water total solids: <500 ppm

• Feed water pressure: 0.5-1.5 bar (7.3-21.8 psi)

Operation Guidelines:

• Avoid sudden pressure changes: To prevent membrane damage.

• Flush system before startup: Remove transport protection fluid and air.

• Start gradually: Increase water production slowly to 60% of design capacity during initial operation.

Note:

• Compliance with local regulations and safe handling practices is essential.

• Dow assumes no liability for product use or information provided.

Application Scenario
