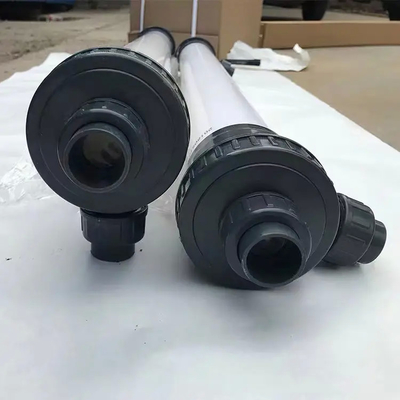

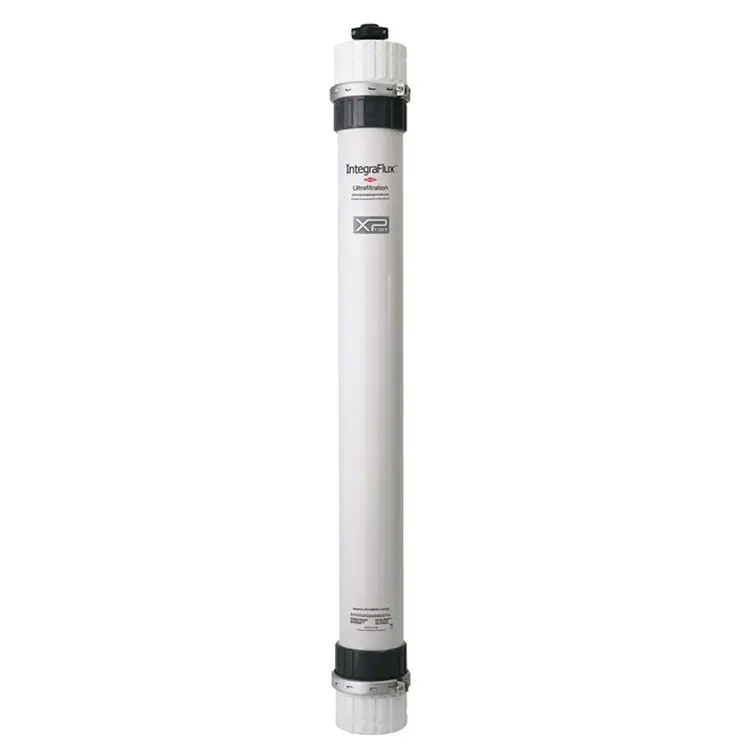

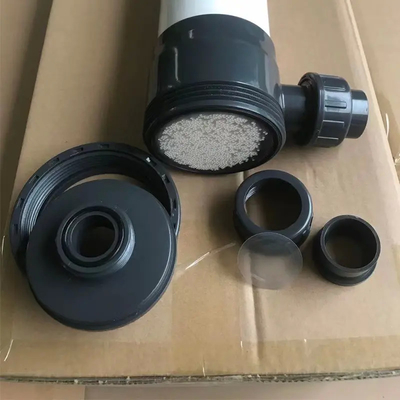

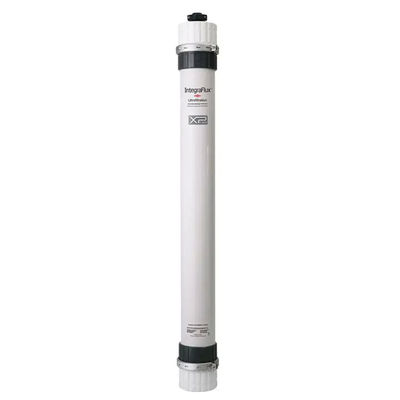

PVDF DuPont Dow Ultrafiltration Membrane Modules SFP 2860XP / SFD 2860XP 2.0 – 8.5 M³/hr
The specific advantages are as follows:
1. Dow ultrafiltration membrane has an ultra-small pore size, which can efficiently remove particulate matter, bacteria, most viruses and colloids, and combined with uniform membrane space and external pressure structure, it can ensure that the components can still guarantee efficient and stable operation under a variety of complex water quality conditions. When the pressure increases, it can be cleaned and maintained by backwashing and air washing to extend the life of the membrane.
2. The pore size of the ultrafiltration membrane is ultra-small, ensuring efficient filtration and the water quality meets the water use standard. The sterilization rate can reach 99.99%.
3. The material is super strong and can extend the service life. The unique double-layer structure membrane has strong chemical resistance and is enough to resist the erosion of strong acids and alkalis. The mechanical strength is high and not easy to break.
4. The structure has strong pressure resistance and can ensure continuous low-energy consumption and stable operation. The Dow ultrafiltration membrane has an external pressure structure, a larger filtration area, low water inlet requirements, and a wider range of suitable raw water. The external pressure membrane is not easy to clog, the cleaning frequency is greatly reduced, and energy consumption and cost are saved.
The Dow membrane has obtained the international drinking water standard certification (NSF61 certification) and has become the preferred membrane element in the water treatment industry.
Product Specifications
|
Membrane area
|
Module volume
|
Weight
(empty/ water filled) |
| Model |
Type |
/ |
m2 |
ft2 |
Liters |
Gallons |
Kg/lbs |
Kg/lbs |
| SFP-2860XP |
Industrial |
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
| SFD-2860XP |
NSF/ANSI 61 and 419 |
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
Figure 1: SFP and SFD 2860XP (8-inch diameter)
| Properties |
|
Length |
|
|
Diameter |
Width |
|
| Units |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
| SI (mm) |
1860 |
1500 |
1630 |
1820 |
225 |
180 |
342 |
Operating Parameters
| |
SI units |
US units |
| Filtrate Flux @ 25ºC |
40-110 l/m2/ hr |
24-65 gfd |
| Flow range |
2.0 – 8.5 m3/hr |
8.8 – 37.4 gpm |
| Temperature |
1-40ºC |
34-104ºF |
| Max. inlet module pressure (@ 20ºC) |
6.25 bar |
90.65 psi |
| Max. operating TMP |
2.1 bar |
30.5 psi |
| Max operating air scour flow |
12 nm3/hr |
7.1 scfm |
| Max backwash pressure |
2.5 bar |
36 psi |
| Operating pH |
2- 11 |
| NaOCl (max.) |
2,000 mg/L |
| Particle size (max.) |
300 µm |
| Flow configuration |
Outside in,dead end flow |
| Expected filtrate turbidity |
≤0.1 NTU |
| Expected filtrate SDI |
≤2.5 |
| / |
|
| / |
|
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
