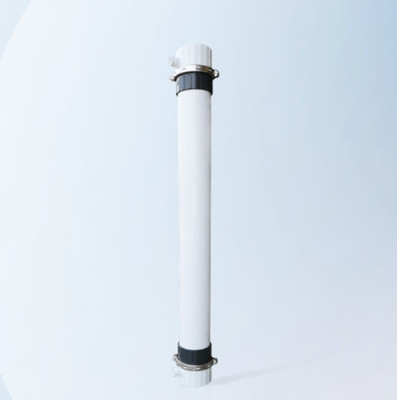

Chemical Resistant Cleaning Ultrafiltration Membrane Modules UF₃OA225L For Desalination

Product Details:

Place of Origin:	china
Brand Name:	Zhaojin Motian
Certification:	CE
Model Number:	UF₃OA225L
Document:	Motian UF Membrane Data She...5L.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	tandard export packing
Delivery Time:	5- 8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	60000 Units per Month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (132)

Ultrafiltration Membrane Modules (52)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (123)

Moon Balloon Light (131)

Tripod LED Balloons (71)

Inflatable Light Tower (56)

Terminal Block Accessories (6)

Detailed Product Description

Model Of This Element:	UF₃OA225L	Material:	PVDF(Polyvinylidene Fluoride)
Membrane Surface Area Of Element:	75m²(807.3ft²)	Pore Size Of This Element:	0.03µm
Module Maximum Water Inlet Pressure Of This Element:	0.2MPa	Module Molecular Weight Cutoff:	100,000Dal
Module Fiber Inner/outer Diameter:	0.7/1.2mm	Module Maximum Transmembrane Pressure Difference:	0.15MPa
Module Operating Temperature Range:	5-45°C	Product Feature:	Dead-end Filtration
Maximum Transmembrane Differential Pressur:	0.15Mpa	Application Of This Element:	Desalination
Highlight:	Chemical Resistant Ultrafiltration Membrane Modules , Cleaning Ultrafiltration Membrane Modules , Desalination uf membrane modules

Chemical Resistant Cleaning Ultrafiltration (UF) Membrane Module UF₃OA225L For Desalination

Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module

1. The quality of the produced water is greatly improved, and most of the suspended matter, colloids, microorganisms, organic pollutants, etc. contained in the water can be filtered out. The pollution index of the ultrafiltration membrane component is SDI15<2.
2. The water quality of the ultrafiltration membrane component is relatively stable and will not change with the operation time and the water quality of the system inlet.
3. The ultrafiltration membrane component is less polluted and has a long service life.
4. The operation intensity of the ultrafiltration membrane system is reduced, and full automatic control can be achieved, reducing the investment of labor costs.
5. The ultrafiltration membrane system has a compact structure design and saves floor space.

Chemical Resistant Cleaning Ultrafiltration Membrane Modules UF₃OA225L For Desalination 0

· Simple preprocessing

Excellent runner design broadens the influent water conditions.

· Long cleaning cycle

Strong pollution resistance, long decay period, good drug resistance, easy to clean and restore.

· Long service life

Membrane filament strength is high, continuous filament, permanent hydrophilic, slow flux decay.

· Safe and reliable water production

Mean aperture structure, large water production flux, wide range of adaptation to raw water quality.

· Low operating cost

Super hydrophilic modification, fast infiltration, less agent demand, thorough cleaning.

Chemical Resistant Cleaning Ultrafiltration Membrane Modules UF₃OA225L For Desalination 1

Chemical Resistant Cleaning Ultrafiltration Membrane Modules UF₃OA225L For Desalination 2

Chemical Resistant Cleaning Ultrafiltration Membrane Modules UF₃OA225L For Desalination 3

Chemical Resistant Cleaning Ultrafiltration Membrane Modules UF₃OA225L For Desalination 4

Material Specifications
Description	Material
Casing	uPVC
Cap	uPVC
Potting	Epoxy resin
O-ring	EPDM
