Pressurized Outside To In Ultrafiltration Membrane Modules UF₃OA200
Product Details
| Product Model: | UF₃OA200 | Material Of Module: | PVDF(Polyvinylidene Fluoride) |
|---|---|---|---|
| Surface Area: | 60m²(646ft²) | Product Nominal Pore Size: | 0.03µm |
| Product Maximum Water Inlet Pressure: | 0.2MPa | Product Molecular Weight Cutoff: | 100,000Dal |
| Product Module Fiber Inner/outer Diameter: | 0.8 /1.3mm | Product Maximum Transmembrane Pressure Difference: | 0.15MPa |
| Product Operating Temperature Range: | 5-45°C | Feature Of Product: | Pressurized Outside To In |
| Highlight |
Pressurized Ultrafiltration Membrane Modules,Pressurized uf membrane modules,Outside To In Ultrafiltration Membrane Modules |
||
Product Description

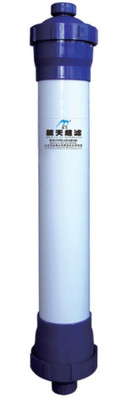

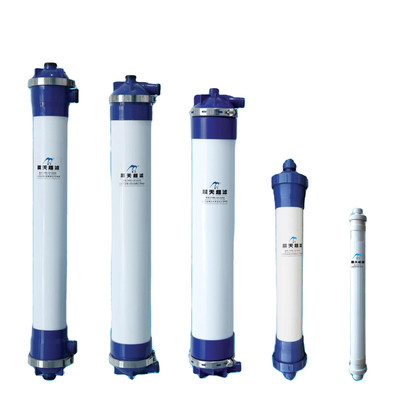

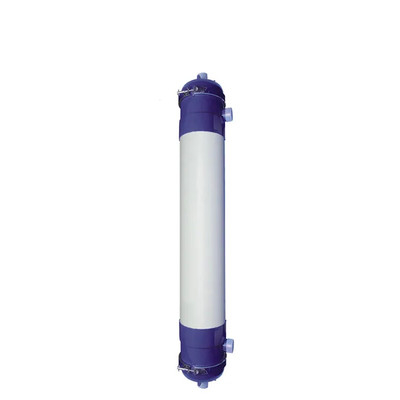

Pressurized Outside To In Ultrafiltration Membrane Modules UF₃OA200
Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module
Pressurized outside-in/dead-end filtration ultrafiltration (UF) membrane modules are a highly efficient membrane separation technology that pushes water or solutions from the outside of the membrane to the inside by applying pressure, thereby achieving effective filtration and separation of tiny particles such as suspended solids, colloidal particles, bacteria and viruses. This membrane technology is widely used in water treatment, food processing, biopharmaceuticals and other fields, and can effectively remove suspended solids and microorganisms, improve water quality and product purity. The design and material selection of UF membrane modules play a vital role in their filtration performance and service life, so reasonable design and operation are required according to specific application requirements when selecting and using them.
|
| Material Specifications | |
| Description | Material |
| Casing | uPVC |
| Cap | uPVC |
| Potting | Epoxy resin |
| O-ring | EPDM |
