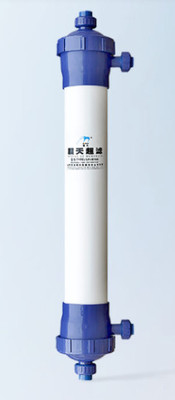

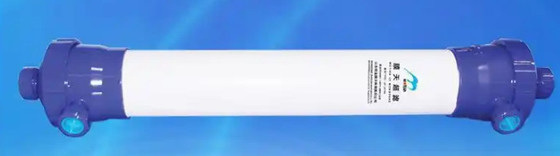

PVDF High Flux Internal Pressure Ultrafiltration Membrane Modules UF₃OA160L

Product Details:

Place of Origin:	china
Brand Name:	Zhaojin Motian
Certification:	CE
Model Number:	UF₃OA160L

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	tandard export packing
Delivery Time:	5- 8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	60000 Units per Month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (132)

Ultrafiltration Membrane Modules (52)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (123)

Moon Balloon Light (131)

Tripod LED Balloons (71)

Inflatable Light Tower (56)

Terminal Block Accessories (6)

Detailed Product Description

Membrane Model:	UF₃OA160(L)	Membrane Material:	PVDF(Polyvinylidene Fluoride)
Outer Membrane Surface Area:	55m²(592ft²)	Nominal Flow:	4500 L/h
Maximum Water Inlet Pressure:	0.2MPa	Molecular Weight Cutoff:	100,000Dal
Fiber Inner/outer Diameter:	0.8/1.3mm	Maximum Transmembrane Pressure Difference:	0.15MPa
Operating Temperature Range:	5-45°C	Feature:	High Flux Internal Pressure
Highlight:	PVDF Ultrafiltration Membrane Modules , High Flux Ultrafiltration Membrane Modules , Internal Pressure Ultrafiltration Membrane Modules

PVDF High Flux Internal Pressure Ultrafiltration Membrane Modules UF₃OA160L

Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module

Motian's PVDF membrane construction is highly resistant to chlorine and strong acids, which allows for better cleaning and optimization of filtration flux rates after cleaning. The hollow fiber modules effectively remove suspended solids, viruses, and bacteria and are certified for drinking water applications

· Simple preprocessing

Excellent runner design broadens the influent water conditions.

· Long cleaning cycle

Strong pollution resistance, long decay period, good drug resistance, easy to clean and restore.

· Long service life

Membrane filament strength is high, continuous filament, permanent hydrophilic, slow flux decay.

· Safe and reliable water production

Mean aperture structure, large water production flux, wide range of adaptation to raw water quality.

· Low operating cost

Super hydrophilic modification, fast infiltration, less agent demand, thorough cleaning.

Dimensions and Weight	Unit	UF3OA160	UF3OA160L
Diameter	mm (in)	160(6.3)
Length	mm (ft)	1,350(4.43)	1,734(5.69)
Weight	kg (lbs)	24(52.9)	30(66.2)

Material Specifications
Description	Material
Casing	uPVC
Cap	uPVC
Potting	Epoxy resin
O-ring	EPDM

Dimensions and Weight	Unit	UF3OA160	UF3OA160L
Diameter	mm (in)	160(6.3)
Length	mm (ft)	1,350(4.43)	1,734(5.69)
Weight	kg (lbs)	24(52.9)	30(66.2)
