Electrical Outdoor Distribution Fiberglass Enclosure Box Powder Coating 300x250x140mm
Product Details
| Box Material: | Fiberglass | Product Certificate: | CE ROHS |
|---|---|---|---|
| Whether It Can Be Customized: | Acceptable | Treatment Of Surface: | Powder Coating |
| Product Application: | Industrial Electrical Field | Working Temperature: | -60℃-+150℃ |
| Lifetime: | More Than 20 Years | Boxes Are Completed With: | Mounting Plate |
| Material Of Body: | Glass Fiber Reinforced Polyesters(SMC) | ||
| Highlight |
300x250x140mm Fiberglass Enclosure Box,Powder Coating Fiberglass Enclosure Box,Outdoor Distribution Fiberglass Enclosure Box |
||
Product Description
Electrical Outdoor Distribution Fiberglass Enclosure Box Powder Coating 300x250x140mm
Electrical enclosures are essential components in various industries, providing a secure housing for sensitive electrical and electronic equipment. In addition to safeguarding users from potential electric shock hazards, these enclosures shield crucial components from a range of environmental factors, including dust, moisture, and extreme temperatures.
Manufacturers put significant emphasis on both safety and aesthetics when designing electrical enclosures. By blending functionality with visual appeal, they ensure that these enclosures not only offer protection but also enhance the overall look of the equipment and the environment in which it is installed.
The versatility of electrical enclosures is a key feature, allowing them to accommodate a wide array of components such as switches, displays, knobs, circuit boards, and more. This adaptability makes them indispensable in diverse applications across industries.
These enclosures are constructed from various materials, each chosen for its specific properties. Metals like stainless steel, carbon steel, and aluminum offer robustness and durability, while plastics provide flexibility and corrosion resistance.
Customized electrical enclosures are tailored to the specific requirements of mass-produced equipment, offering a tailored solution that fits seamlessly with the intended application. On the other hand, standardized enclosures are ideal for low-production equipment where cost-effectiveness and quick deployment are priorities.
Beyond their aesthetic and functional roles, electrical enclosures serve as critical shields for sensitive equipment such as transmitters, power distribution systems, and generators. By providing a protective barrier against external elements and potential hazards, these enclosures ensure the reliability, longevity, and optimal performance of the enclosed electrical systems.
| Product Description | |
| Model Number | FN-SMC-32514 |
| External Size | 300*250*140MM |
| Material | Fiber glass/(SMC) |
| Certificate | CE ROHS |
| Customization | Acceptable |
| Surface treatment | Powder coating |
| Thickness | 1.2mm /1.5mm |
| Application Industrial | Electrical field |
| Protection degree | IP66 |
| Working temperature | -40°℃ to +120℃ |
| Machanical impact | lKO8 |

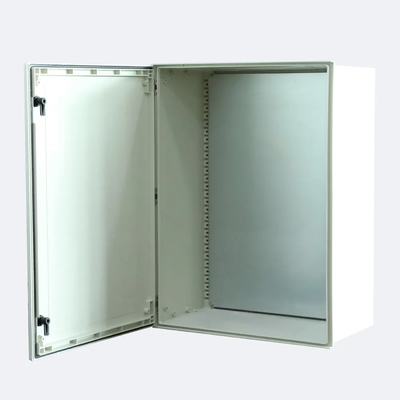

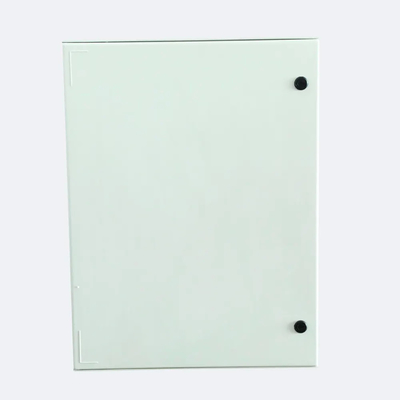

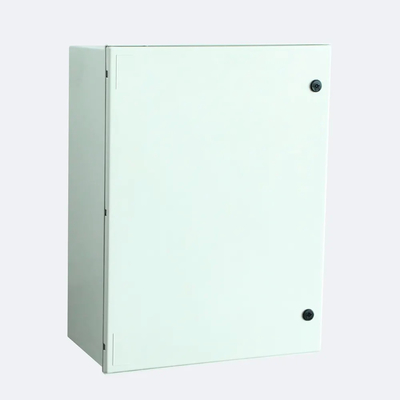

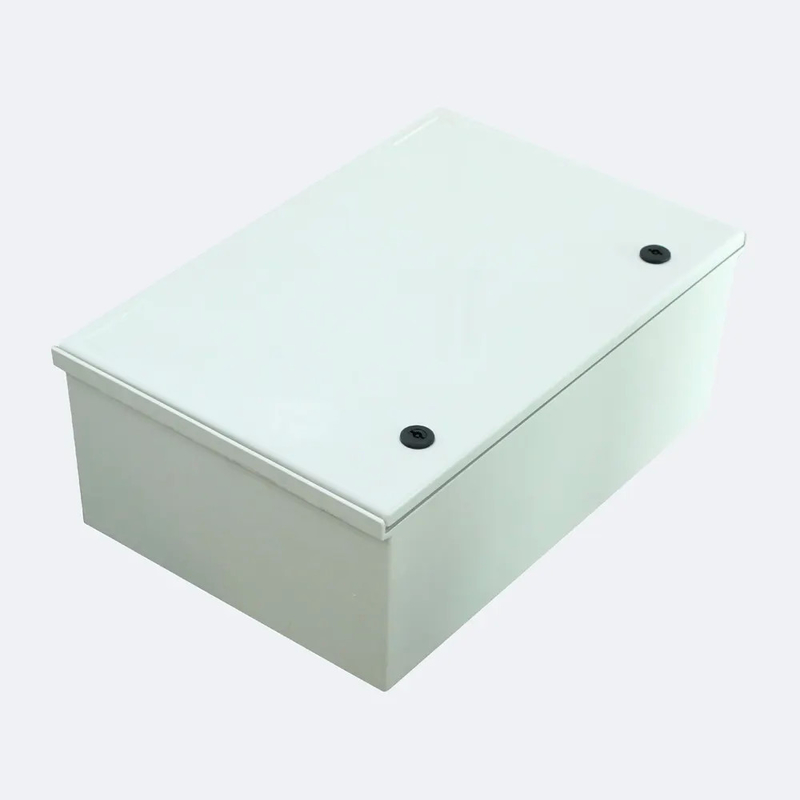

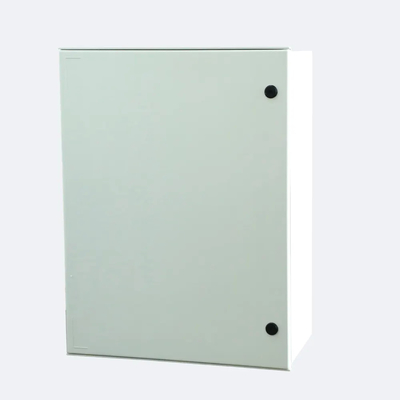

Overall product display:
PRODUCT FEATURES:
The SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with a waterproof rating of IP66 and an impact resistance of IK8. The characteristic of polyester is that it is itself mixed with 30% glass fiber to strengthen it, making it achieve a high electrical resistance and mechanical stiffness (IK8).
Compared with metal boxes, the SMC series weighs only 1/3 of metal boxes and is more adaptable to corrosion and humid environments.
SMC Box with solid lid
| Style Name | Dimension /mm |
| FN-SMC-32514 | 300*250*140 |
| FN-SMC-43020 | 400*300*200 |
| FN-SMC-44020 | 400*400*200 |
| FN-SMC-54020 | 500*400*200 |
| FN-SMC-64023 | 600*400*230 |
| FN-SMC-65023 | 600*500*230 |
| FN-SMC-86030 | 800*600*300 |
SMC Box with transparent lid
| Style Name | Dimension/mm |
| FN-SMT-32514 | 300*250*140 |
| FN-SMT-43020 | 400*300*200 |
| FN-SMT-44020 | 400*400*200 |
| FN-SMT-54020 | 500*400*200 |
| FN-SMT-64023 | 600*400*230 |
| FN-SMT-65023 | 600*500*230 |
| FN-SMT-86030 | 800*600*300 |
