IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm

IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm

IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm
video
IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm
Product Details:
Place of Origin: China
Brand Name: Fenigal/None
Certification: CE,CCC
Model Number: FN-SMC-43020
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10~USD100
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 1,000pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (147)
Ultrafiltration Membrane Modules (52)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (130)
Moon Balloon Light (131)
Tripod LED Balloons (109)
Inflatable Light Tower (56)
Terminal Block Accessories (6)
Detailed Product Description
Material Of The Product: Fiberglass Product Certificate: CE ROHS
Whether It Can Be Customized: Acceptable Treatment Of Surface: Powder Coating
Product Application: Industrial Electrical Field Product Working Temperature: -60℃-+150℃
Product Lifetime: More Than 20 Years Boxes Are Completed With: Mounting Plate
Material Of Body: Glass Fiber Reinforced Polyesters(SMC) Place Of Origin: China
Ip Level: IP66
Highlight:

IP66 Fiberglass Enclosure Box

,

Outdoor Waterproof Fiberglass Enclosure Box

,

400*300*200mm Fiberglass Enclosure Box

IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm

1.SMC composite unique properties, solving wood, steel, plastic meter box easy to aging, corrosive, insulation is poor, poor cold tolerance, flame resistance is poor, the shortcomings of short life, the excellent performance of the composite meter box, there is absolutely waterproof seal properties, corrosion resistance, tamper-proof, never need grounding wire, beautiful appearance, a lock and seal security protection, long life, composite cable bracket, cable channel bracket, meter boxes are widely used in composite rural , Chengwanggaizao use.

2.Usage :waterproof fiberglass box because and focalization geographic disparities to the scope of different names different also used for industrial main junction box , instrument box , electronic housings , etc mainly for indoor and outdoor electric , communication , fire fighting facilities , steel puddling , electronic , power , railway , construction site , stopcocks , airport , guesthouses , large factory , environmental pollution
3.The waterproof fiberglass box has passed waterproof and dustproof carried out under rigid quality standards.(IP 66).
4.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal , Relay and Sensor , Communication and joint Box etc.
5.High quality waterproof fiberglass box series, new imported materials , no recycled material.Good strength. Can do transparent and opaque or PC material , with corresponding backplate for choice.
6.The product weighs approximately 1/3 the weight of an iron box and can be easily installed or moved,The product is free from corrosion, carries superior insulation.
7.The use is also convenient for the installation of Terminal Substitution Rail, aluminium case , Button Box, Small Terminal, Signal ,Relay and Sensor, Communication and joint Box etc.



IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm 0



Product Description
Model Number FN-SMC-43020
External Size 400*300*200mm
Material Fiber glass/(SMC)
Certificate CE ROHS
Customization Acceptable
Surface treatment Powder coating
Thickness 1.2mm /1.5mm
Application Industrial Electrical field
Protection degree IP66
Working temperature -40°℃ to +120℃
Machanical impact lKO8

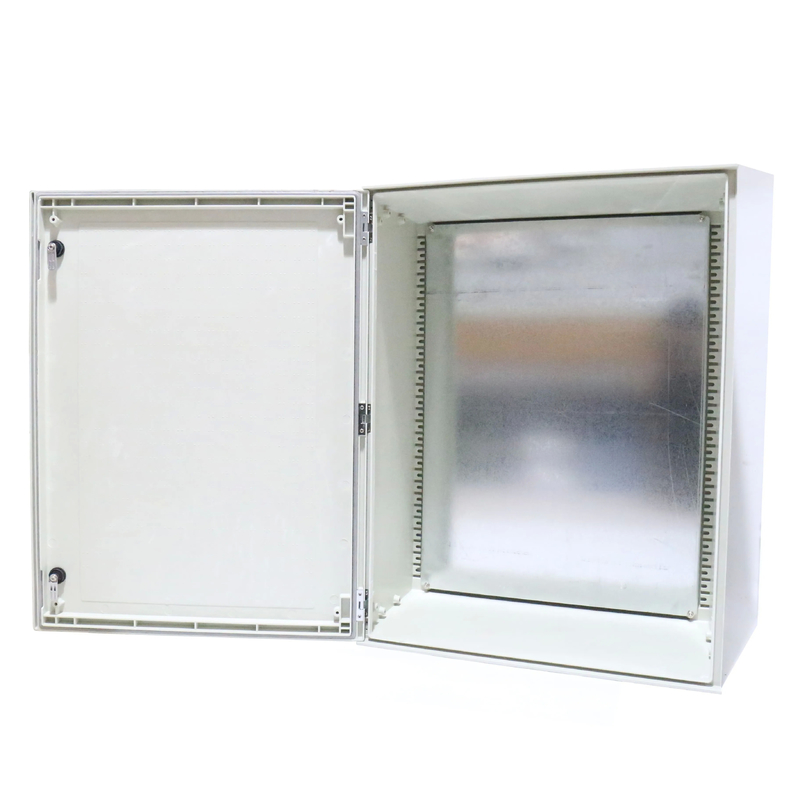

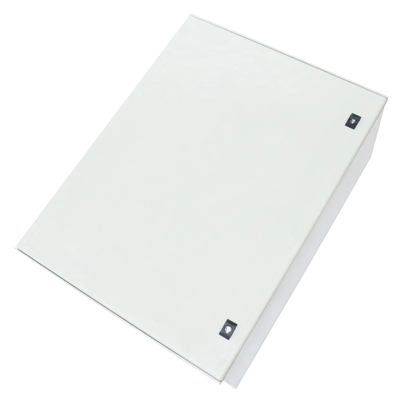

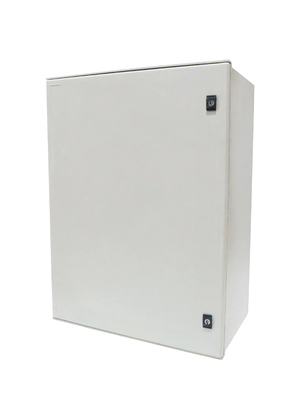

Overall product display:



IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm 1



PRODUCT FEATURES:



The SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with a waterproof rating of IP66 and an impact resistance of IK8. The characteristic of polyester is that it is itself mixed with 30% glass fiber to strengthen it, making it achieve a high electrical resistance and mechanical stiffness (IK8).



Compared with metal boxes, the SMC series weighs only 1/3 of metal boxes and is more adaptable to corrosion and humid environments.

IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm 2

IP66 SMC Ployster Fiberglass Enclosure Box Outdoor Waterproof Electrical 400*300*200mm 3

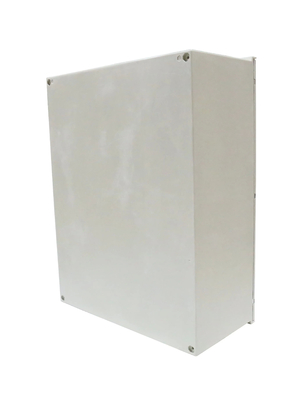

SMC Box with solid lid

Style Name Dimension /mm
FN-SMC-32514 300*250*140
FN-SMC-43020 400*300*200
FN-SMC-44020 400*400*200
FN-SMC-54020 500*400*200
FN-SMC-64023 600*400*230
FN-SMC-65023 600*500*230
FN-SMC-86030 800*600*300



SMC Box with transparent lid

Style Name Dimension/mm
FN-SMT-32514 300*250*140
FN-SMT-43020 400*300*200
FN-SMT-44020 400*400*200
FN-SMT-54020 500*400*200
FN-SMT-64023 600*400*230
FN-SMT-65023 600*500*230
FN-SMT-86030 800*600*300
