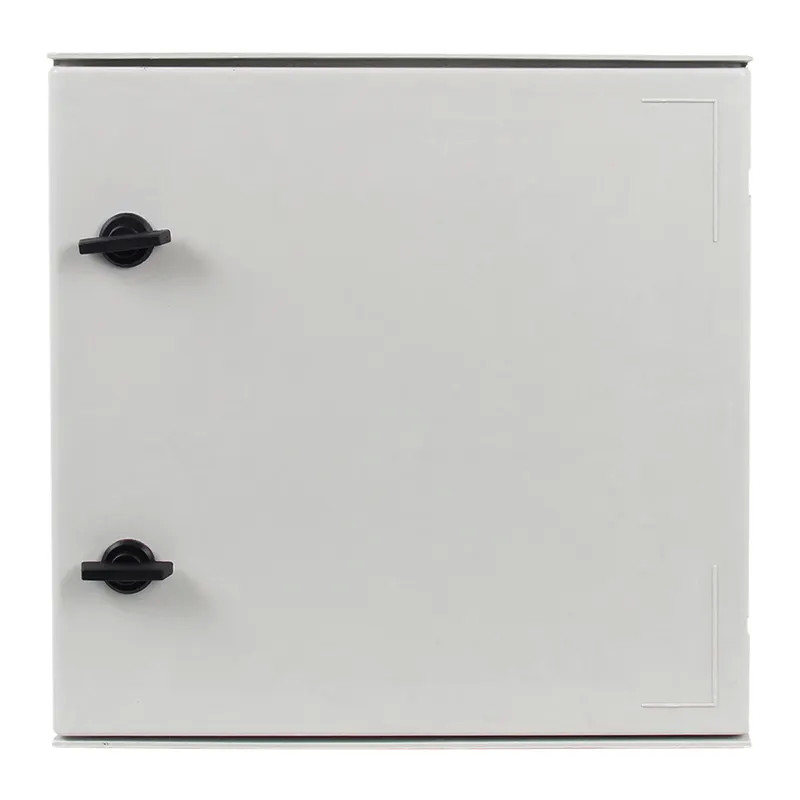

Outdoor FRP IP66 Waterproof Reinforced Fiberglass Enclosure Box 400*400*200mm
Product Details
| Main Certificate: | CE ROHS | Product Customized: | Acceptable |
|---|---|---|---|
| Treatment Of Surface: | Powder Coating | Product Application: | Industrial Electrical Field |
| Product Working Temperature: | -60℃-+150℃ | Product Lifetime: | More Than 20 Years |
| Boxes Are Completed With: | Mounting Plate | Core Material: | Glass Fiber Reinforced Polyesters(SMC) |
| Place Of Origin: | China | Product Ip Level: | IP66 |
| Highlight |
Outdoor Fiberglass Enclosure Box,Waterproof Fiberglass Enclosure Box,IP66 Fiberglass Enclosure Box |
||
Product Description
Outdoor FRP IP66 Waterproof Reinforced Fiberglass Enclosure Box 400*400*200mm
1) The SMC outdoor cable distribution box is fully insulated and safe to use: The box material is made of excellent insulating material SMC composite material, which has high insulation resistance and breakdown voltage, can prevent leakage accidents, maintain good dielectric properties at high frequencies, does not reflect, block the propagation of microwaves, does not rust and can be used for a long time. It is suitable for use in crowded or narrow places to avoid electric shock;
(2) The SMC outdoor cable distribution box is corrosion-resistant and has a long life: The box material SMC composite material has good corrosion resistance and can effectively resist corrosion from water, gasoline, alcohol, electrolytic salt, acetic acid, hydrochloric acid, sodium potassium compound urine, asphalt, various acid and alkali soils, and acid rain. The product itself has good anti-aging properties, and the surface of the product has a protective layer with strong UV resistance. The double protection makes the product have higher anti-aging properties; it is suitable for all kinds of severe weather, and can still maintain good physical and mechanical properties in an environment of -50℃—+150℃, with a protection level of IP54. The box has a long service life and is maintenance-free. (3) The SMC outdoor cable distribution box is easy to install and transport: the box adopts a plate structure combination and modular installation, which is suitable for transportation and simple to install. It can be assembled or disassembled on site.
(4) Heat insulation and anti-condensation: The box material SMC composite material is a poor conductor of heat, with low thermal deformation rate at high temperature, which can reduce the impact of ambient temperature difference on the inside of the box. Compared with metal materials, it can effectively reduce condensation and frost inside the box;
(5) Beautiful and anti-theft: The surface is designed with diamond-shaped protrusions to prevent small advertisements from being pasted. Moreover, the shape is unique and beautiful, beautifying the urban environment. Since SMC composite material is a thermosetting composite material, its recycling value is low, which effectively prevents the box from being stolen.
| Product Description | |
| Model Number | FN-SMC-43020 |
| External Size | 400*300*200mm |
| Material | Fiber glass/(SMC) |
| Certificate | CE ROHS |
| Customization | Acceptable |
| Surface treatment | Powder coating |
| Thickness | 1.2mm /1.5mm |
| Application Industrial | Electrical field |
| Protection degree | IP66 |
| Working temperature | -40°℃ to +120℃ |
| Machanical impact | lKO8 |
Overall product display:
PRODUCT FEATURES:
The SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with a waterproof rating of IP66 and an impact resistance of IK8. The characteristic of polyester is that it is itself mixed with 30% glass fiber to strengthen it, making it achieve a high electrical resistance and mechanical stiffness (IK8).
Compared with metal boxes, the SMC series weighs only 1/3 of metal boxes and is more adaptable to corrosion and humid environments.
SMC Box with solid lid
| Style Name | Dimension /mm |
| FN-SMC-32514 | 300*250*140 |
| FN-SMC-43020 | 400*300*200 |
| FN-SMC-44020 | 400*400*200 |
| FN-SMC-54020 | 500*400*200 |
| FN-SMC-64023 | 600*400*230 |
| FN-SMC-65023 | 600*500*230 |
| FN-SMC-86030 | 800*600*300 |
SMC Box with transparent lid
| Style Name | Dimension/mm |
| FN-SMT-32514 | 300*250*140 |
| FN-SMT-43020 | 400*300*200 |
| FN-SMT-44020 | 400*400*200 |
| FN-SMT-54020 | 500*400*200 |
| FN-SMT-64023 | 600*400*230 |
| FN-SMT-65023 | 600*500*230 |
| FN-SMT-86030 | 800*600*300 |
