IP66 Waterproof Reinforced Fiberglass Enclosure Box 500*400*200mm For Harsh Working Conditions
Product Details
| Model Number: | FN-SMC-54020 | Size: | 500*400*200mm |
|---|---|---|---|
| Customized: | Acceptable | Treatment Of Surface: | Powder Coating |
| Product Application: | Industrial Electrical Field | Working Temperature Of Product: | -60℃-+150℃ |
| Product Lifetime: | More Than 20 Years | Boxes Are Completed With: | Mounting Plate |
| Core Material: | Glass Fiber Reinforced Polyesters(SMC) | Place Of Origin: | China |
| Protection Degree: | IP66 | Type: | SMC Box With Solid Lid |
| Highlight |
Harsh Working Conditions Fiberglass Enclosure Box,IP66 Waterproof Fiberglass Enclosure Box,500*400*200mm Fiberglass Enclosure Box |
||
Product Description

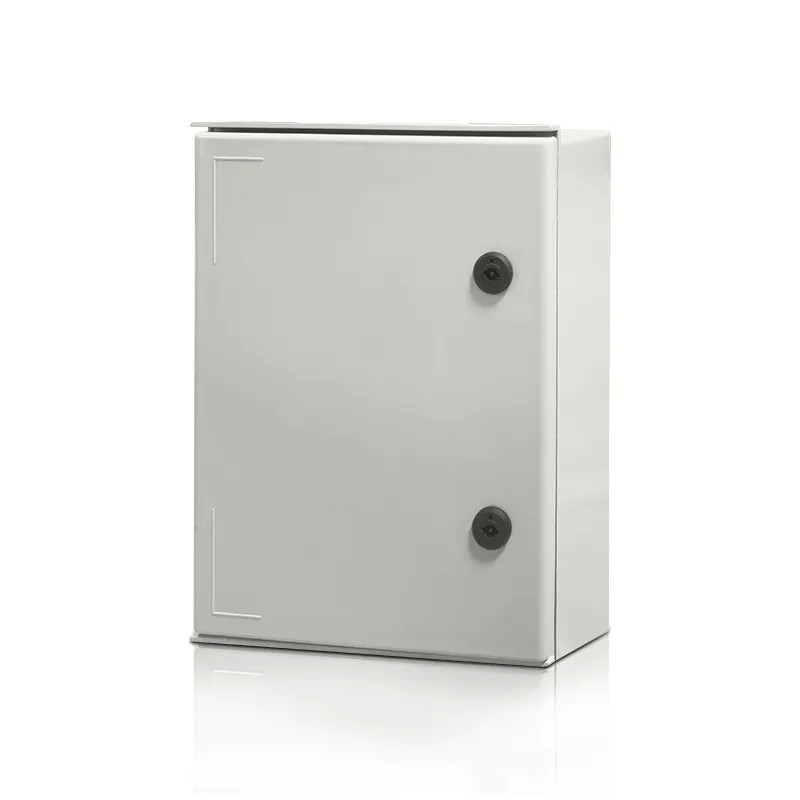

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 500*400*200mm
☆ SMC outdoor cable distribution box body is corrosion-resistant and has a long service life: the box body material SMC composite material has good corrosion resistance performance
The SMC outdoor cable distribution box is easy to install and transport.
☆ Insulation and anti condensation
☆ Unique and beautiful appearance, beautifying the urban environment.
Rust prevention: corrosion resistance, aging resistance, rain proof, suitable for various adverse weather conditions and various acid and alkali soils.
Anti theft: Equipped with advanced composite materials and unique structural design.
Rainwater prevention: Reasonable structure and European made rubber sealing strips ensure that rainwater cannot enter.
Anti leakage: The box is completely insulated and isolated, with no risk of leakage or electric shock in any weather. Even in areas with dense mobile populations, children's activity areas, and narrow streets, it ensures safety and reflects respect for life.
Impact resistance: The product has strong impact resistance, prevents external damage, prevents electricity theft, and remains deformation free for a long time.
Full specifications: The product is suitable for precision machining, with precise dimensions, complete specifications, and can be expanded.
Easy to install: The product is lightweight, suitable for handling, and has a flexible structure. It is entirely composed of plate panels, making it easier to install and replace during production.
Environmental Protection: Environmentally friendly materials, recyclable, suitable for long-term industrial development needs in the future
Advantages and Characteristics:
Fiberglass reinforced polyester material box completely solves the problems of metal box corrosion, leakage, roughness, etc;
◆ Easy to install, suitable for both indoor and outdoor use;
The box adopts a door lock, which is safe and reliable, and can meet different needs in the power station;
The entire box has a beautiful appearance and high durability;
Unified color, unified height, integrated design, easy to construct and operate;
◆ It is an ideal product for implementing the "safety, health, and environmental protection" standards in the power system.
| Product Description | |
| Model Number | FN-SMC-43020 |
| External Size | 400*300*200mm |
| Material | Fiber glass/(SMC) |
| Certificate | CE ROHS |
| Customization | Acceptable |
| Surface treatment | Powder coating |
| Thickness | 1.2mm /1.5mm |
| Application Industrial | Electrical field |
| Protection degree | IP66 |
| Working temperature | -40°℃ to +120℃ |
| Machanical impact | lKO8 |
Overall product display:
PRODUCT FEATURES:
The SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with a waterproof rating of IP66 and an impact resistance of IK8. The characteristic of polyester is that it is itself mixed with 30% glass fiber to strengthen it, making it achieve a high electrical resistance and mechanical stiffness (IK8).
Compared with metal boxes, the SMC series weighs only 1/3 of metal boxes and is more adaptable to corrosion and humid environments.
SMC Box with solid lid
| Style Name | Dimension /mm |
| FN-SMC-32514 | 300*250*140 |
| FN-SMC-43020 | 400*300*200 |
| FN-SMC-44020 | 400*400*200 |
| FN-SMC-54020 | 500*400*200 |
| FN-SMC-64023 | 600*400*230 |
| FN-SMC-65023 | 600*500*230 |
| FN-SMC-86030 | 800*600*300 |
SMC Box with transparent lid
| Style Name | Dimension/mm |
| FN-SMT-32514 | 300*250*140 |
| FN-SMT-43020 | 400*300*200 |
| FN-SMT-44020 | 400*400*200 |
| FN-SMT-54020 | 500*400*200 |
| FN-SMT-64023 | 600*400*230 |
| FN-SMT-65023 | 600*500*230 |
| FN-SMT-86030 | 800*600*300 |
