New Generation ComPacT NSX Series Schneider Electric Circuit Breaker EasyPact With Self-Powered
Product Details
| Rated Current In: | 25-160A | Leakage Current IΔn (Class A): | 30mA-100mA-300mA-500mA-1A |
|---|---|---|---|
| Leakage Current IΔn (AC Type):: | 3A-5A | Delay IΔt (ms): | 0ms-60ms-150ms-0.5s-1s |
| Working Voltage Ue: | 220-440V 50/60Hz | Advantages: | Self-powered, Can Still Work When Powered By Two Phases |
| Installation: | Fixed And Plug-in | Standard: | IEC 60947-2 |
| Highlight |
New Generation Schneider Electric Circuit Breaker,Self-Powered Schneider Electric Circuit Breaker |
||
Product Description

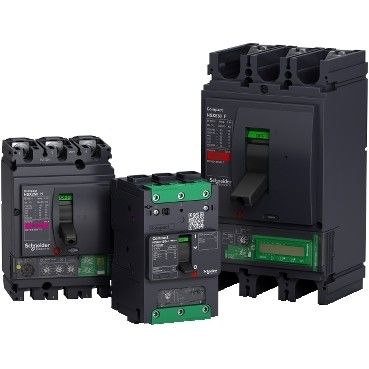

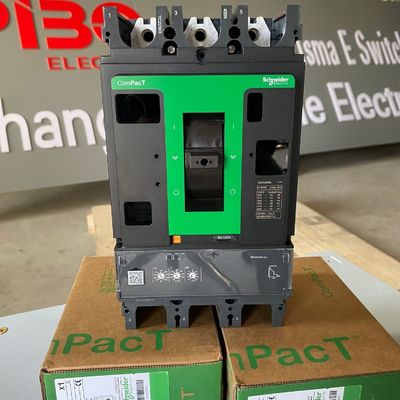

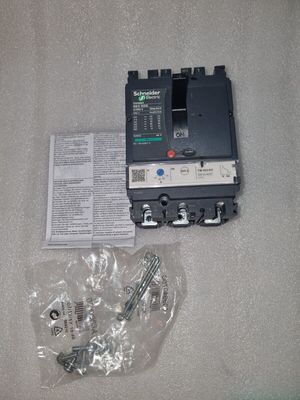

New Generation ComPacT NSX Series Schneider Electric Circuit Breaker EasyPact With Self-Powered
Specification:
---Flexible installation in any position: switchboard or wall-mounted
---Nominal current: 16 to 630 A
---9 breaking capacities for the 2 sizes of circuit breakers:
- up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V
- up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V
- both size of circuit breakers with 75 and 100 kA at 690 V
---1, 2, 3, and 4 pole versions available
---Large range of electronic and thermal-magnetic protections
---Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi
---Interchangeable trip-units to upgrade your panel with smarter functions
---Plug and ready wiring system and communicating accessories
---A wealth of options for auxiliaries and accessories (field installable)
---Integrated earth leakage protection via MicroLogic Vigi (earth leakage circuit breaker - ELCB)
New generation, simplercommercial references.
New meaningful referencesto make your life easier.
We know any change in commercial references will be an adjustement, but in the long run we believethis change is needed, and will make your life easier.The table below describes how new references are build.For instance LV429630 (ComPacT Breaker NSX100F 36kA AC 3P3D 100A TMD)becomes C10F3TM100.
| ComPacT type | Frame rating | Breaking capacity | Number of poles | Trip unit | Trip unit ratings | Suffix |
| NSX = C | 63m = 11 | 16kA = E | 1P = 1 | TMD = TM | 16 = 016 | EverLink = L |
| NSXm = C | 160m = 12 | 25kA = B | 2P = 2 | MA = MA | 20 = 020 | Busbar = B |
| 100 = 10 | 36kA = F | 3P3D = 3 | TMG = MG | 25 = 025 | Fixed = F | |
| 160 = 16 | 50kA = N | 4P4D = 4 | Mic 1.3 M = 1M | 30 = 030 | DC = D | |
| 250 = 25 | 70kA = H | 3P2D = 5 | Mic 2.2/2.3 = 2D | 40 = 040 | Switch = S | |
| 400 = 40 | 100kA = S | 4P3D = 6 | Mic 2.2G = 2G | 50 = 050 | DC PV = DP | |
| 630 = 63 | 150kA = L | Mic 4.1/4.2/4.3 = 4V | 63 = 063 | |||
| 800 = 80 | ... | Mic 4.2 = 4V | 80 = 080 | Acc with ID | ||
| ... | 100 = 100 | change = T | ||||
| ... |
Applications
An excellent choice for all standard and specific applications, including:
Standard applications: industries, buildings, infrastructures
Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers
Source-changeover systems (TransferPact): service sector (hospital operating rooms, computer rooms, ), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.)
| Characteristic | |
| Frame rated current | 100A, 160A, 250A, 400A, 630A, 800A, 1000A, 1250A, 1600A; |
| Trip unit ratings current | 2.5A, 6.3A, 12.5A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 150A, 160A, 200A, 220A, 250A, 320A, 400A, 500A, 570A, 630A, 1000A, 1200A, 1250A, 1500A, 1600A; |
| Breaking capacity | 16, 25, 36, 50, 70, 100, 150, 200KA, and Ics=100%Icu; |
| Trip Unit Type | Thermal-magnetic, Electronic; |
| Protection type | Distribution protection, Leakage Protection, Motor protection; |
| Installation method | Fixed type, Plug-in type, Withdrawable type; |
| Operation mode | Toggle the handle, Rotate the handle, Extend the rotation handle, Electric operating mechanism, Breaking capacity; |
Product Highlights
