Schneiders Original MicroLogic 5B Electronic Trip Units Complete Circuit Breakers
Product Details
| Shell Current: | 100/160/250/400/630A | Rated Current: | In=25-630A |
|---|---|---|---|
| Model: | MicroLogic 5B | Working Voltage Ue: | 220-440V 50/60Hz |
| Configures: | Electronic Trip Units And Complete Circuit Breakers | Advantage: | LSI Three-stage Protection, Ir, Tr, Isd, Tsd, Ii All Parameters Are Adjustable |
| Other Configures: | Long Delay, Short Delay, Instantaneous Protection Shutdown Optional | ||
| Highlight |
Complete Circuit Breakers MicroLogic 5B,Schneiders Original MicroLogic 5B,MicroLogic 5B Electronic Trip Units |
||
Product Description

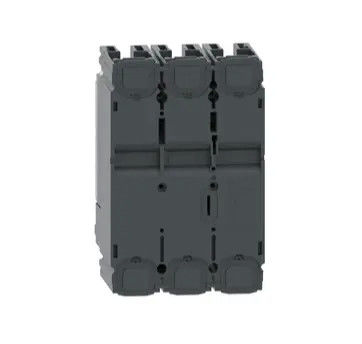

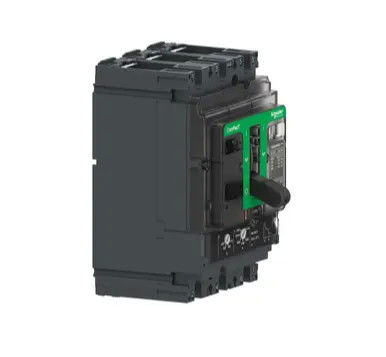

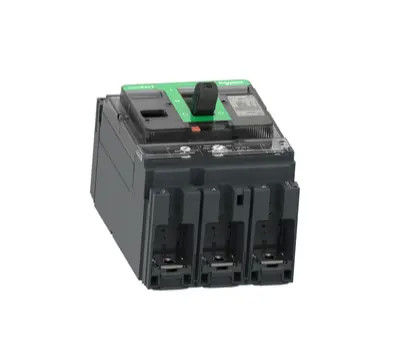

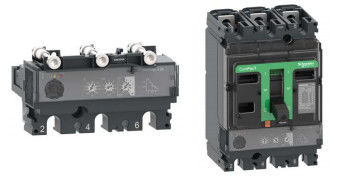

Schneiders Original MicroLogic 5B Electronic Trip Units And Complete Circuit Breakers

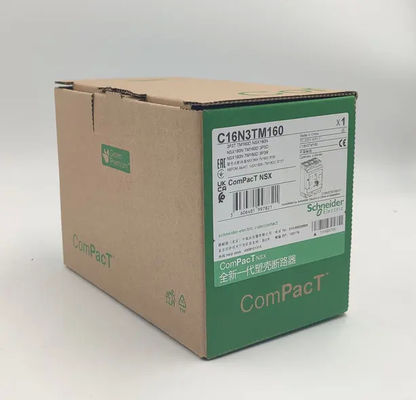

ComPact NSX
ComPact NSX is a new generation of molded case circuit breakers launched by Schneider Electric. It integrates 23 innovative patented technologies, which not only improves the protection performance, but also integrates comprehensive power management functions, becoming a measurement, management and communication tool for energy conservation and emission reduction.
Specification:
---Flexible installation in any position: switchboard or wall-mounted
---Nominal current: 16 to 630 A
---9 breaking capacities for the 2 sizes of circuit breakers:
- up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V
- up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V
- both size of circuit breakers with 75 and 100 kA at 690 V
---1, 2, 3, and 4 pole versions available
---Large range of electronic and thermal-magnetic protections
---Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi
---Interchangeable trip-units to upgrade your panel with smarter functions
---Plug and ready wiring system and communicating accessories
---A wealth of options for auxiliaries and accessories (field installable)
---Integrated earth leakage protection via MicroLogic Vigi (earth leakage circuit breaker - ELCB)
Frame current: 100/160/250/400/630A
Rated current: In=25-630A
LSI three-stage protection, Ir, Tr, Isd, Tsd, Ii all parameters adjustable
Long delay, short delay, instantaneous protection shutdown optional
| ComPacT type | Frame rating | Breaking capacity | Number of poles | Trip unit | Trip unit ratings | Suffix |
| NSX = C | 63m = 11 | 16kA = E | 1P = 1 | TMD = TM | 16 = 016 | EverLink = L |
| NSXm = C | 160m = 12 | 25kA = B | 2P = 2 | MA = MA | 20 = 020 | Busbar = B |
| 100 = 10 | 36kA = F | 3P3D = 3 | TMG = MG | 25 = 025 | Fixed = F | |
| 160 = 16 | 50kA = N | 4P4D = 4 | Mic 1.3 M = 1M | 30 = 030 | DC = D | |
| 250 = 25 | 70kA = H | 3P2D = 5 | Mic 2.2/2.3 = 2D | 40 = 040 | Switch = S | |
| 400 = 40 | 100kA = S | 4P3D = 6 | Mic 2.2G = 2G | 50 = 050 | DC PV = DP | |
| 630 = 63 | 150kA = L | Mic 4.1/4.2/4.3 = 4V | 63 = 063 | |||
| 800 = 80 | ... | Mic 4.2 = 4V | 80 = 080 | Acc with ID | ||
| ... | 100 = 100 | change = T | ||||
| ... |
Applications
An excellent choice for all standard and specific applications, including:
Standard applications: industries, buildings, infrastructures
Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers
Source-changeover systems (TransferPact): service sector (hospital operating rooms, computer rooms, ), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.)
| Characteristic | |
| Frame rated current | 100A, 160A, 250A, 400A, 630A, 800A, 1000A, 1250A, 1600A; |
| Trip unit ratings current | 2.5A, 6.3A, 12.5A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 150A, 160A, 200A, 220A, 250A, 320A, 400A, 500A, 570A, 630A, 1000A, 1200A, 1250A, 1500A, 1600A; |
| Breaking capacity | 16, 25, 36, 50, 70, 100, 150, 200KA, and Ics=100%Icu; |
| Trip Unit Type | Thermal-magnetic, Electronic; |
| Protection type | Distribution protection, Leakage Protection, Motor protection; |
| Installation method | Fixed type, Plug-in type, Withdrawable type; |
| Operation mode | Toggle the handle, Rotate the handle, Extend the rotation handle, Electric operating mechanism, Breaking capacity; |
