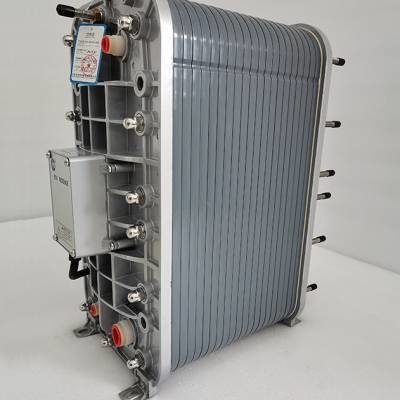

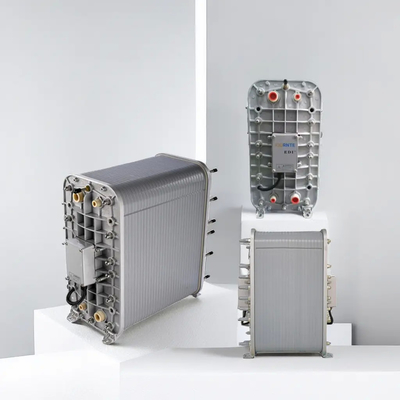

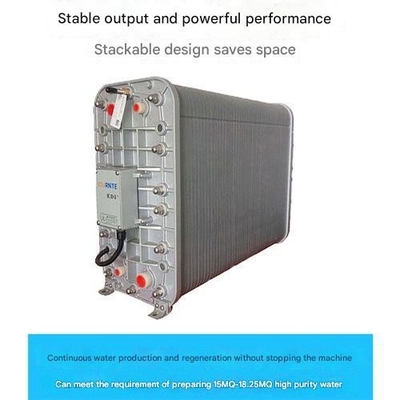

85 Degree Hot Water Disinfection EDI Stacks LX-HD-300 For Beverage Industry
Brand Name:
China brand
Model Number:
LX-HD-300
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 pc
Price:
Negotiable
Supply Ability:
60000 Units per Month
Delivery Time:
5- 8 work days
Payment Terms:
T/T, Western Union
Standard Packaging:
standard export packing
Product Details
| Water Flow Range(m³/h) Of This Module: | 2.0-3.5 | Standard Water Flow Rate(m³/h) Of This Module: | 3.0 |
|---|---|---|---|
| Resistivity Of Produced Water (MΩ Cm) Of This Module: | >15 | Silicon And Base Removal Rate (%) Of This Module: | ≥99 |
| Temperature Range (℃) Of This Module: | 15-35(Top 25) | Influent PH: | 6.5-9.0 |
| Influent Conductivity (us/cm): | 1-10(optimal<3) | Advantages Of The Module: | Perfect Structural Design,Easy To Operate |
| Application: | Beverage Industry | ||
| Highlight |
LX-HD-300 EDI Stacks,Beverage Industry EDI Stacks,Hot Water Disinfection EDI Stacks |
||
Product Description
85 Degree Hot Water Disinfection China EDI Stacks LX-HD-300 For Beverage Industry
Product Description
EDI Module | Electrodeionization
EDI is a new type of ultra-pure water technology developed in the 1990s, Its development is a revolutionary advance in the history of pure water production technology. EDI can replace traditional ion exchange technology, produce stable deionized water. Unlike the hybrid ion exchange device, the EDI system does not require chemical regeneration, and does not have to be stopped for Adding resins or chemical regeneration. Therefore, EDI can achieve continuous production of water, and water quality is stable.Meanwhile, equipment investment and operating expenses are minimized.
Basics of EDI Thermal Disinfection for Ultrapure and Pharmaceutical Waters
High temperature disinfection with EDI is very important for ultrapure and pharmaceutical waters, where even small amounts of bacteria can affect critical water systems, such as USP pharmaceutical water, dialysis water, and ultrapure water used in semiconductor manufacturing.
Bacteria are often killed by UV-254, chemicals, and high temperatures. Chemical disinfection is often unwelcome or prohibited in the pharmaceutical and ultrapure water industries, so it is particularly important to establish a stable pure water conversion system through high temperature disinfection.
Most bacteria are killed at 50-60°C, and essentially all bacteria are killed above 65°C.
Two general protocols for validating high purity water systems: 72°C for 30-60 minutes, bacteria are killed in 0.1 seconds. 80°C for 15-30 minutes, bacteria are killed in 0.001 seconds. Both protocols effectively kill all bacteria (except thermophiles).
Product features
- Using the full filling technology of the middle partition, the water quality is good
- No need to add salt and concentrate water circulation, easy to operate
- Excellent electrical performance, high current efficiency, low voltage, low energy consumption
- Pipelines are arranged side by side, two inlet and two outlet standard threaded interfaces, easy to install
- Perfect structural design to ensure zero leakage
Application
Typical Applications for EDI:
- purified water
- feed to WFI (Water For Injection) stills
- stream generation / boiler feed during power generation
- microelectronics/semiconductor production
- for high quality makeup demineralized water
- for biomedical and laboratory use, by pharmaceutical compounds as pretreatment for distillation
- surface finishing
- chemical manufacturing
- food and beverage industry
- purified water
- feed to WFI (Water For Injection) stills
- stream generation / boiler feed during power generation
- microelectronics/semiconductor production
- for high quality makeup demineralized water
- for biomedical and laboratory use, by pharmaceutical compounds as pretreatment for distillation
- surface finishing
- chemical manufacturing
- food and beverage industry
Applicable industry
-Boiler feedwater for power, chemical and metallurgical industries
-Super pure water for electronics, semiconductors and precision machinery
-Water for chemical processes
-Medical water
-Ultrapure lab water
-Boiler feedwater for power, chemical and metallurgical industries
-Super pure water for electronics, semiconductors and precision machinery
-Water for chemical processes
-Medical water
-Ultrapure lab water
Specification
| Water output | LX-HD-50 | LX-HD-100 | LX-HD-200 | LX-HD-300 | LX-HD-500 |
| Water flow range(m³/h) | 0.5-0.7 | 0.7-1.2 | 1.5-2.5 | 2.0-3.5 | 3.5-5.5 |
| Standard water flow rate(m³/h) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 |
| Resistivity of produced water (MO·cm) | >15 | >15 | >15 | >15 | >15 |
| Silicon and boron removal rate (%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
| Water inlet requirements | LX-HD-50 | LX-HD-100 | LX-HD-200 | LX-HD-300 | LX-HD-500 |
| Temperature range (℃) | 15-35(Top 25) | 15-35(Top 25) | 15-35(Top 25) | 15-35(Top 25) | 15-35(Top 25) |
| Influent pH | 6.5-9.0 | 6.5-9.0 | 6.5-9.0 | 6.5-9.0 | 6.5-9.0 |
| Influent conductivity (us/cm) | 1-10(optimal<3) | 1-10(optimal<3) | 1-10(optimal<3) | 1-10(optimal<3) | 1-10(optimal<3) |
| Total carbon dioxide (ppm) | <3(optimal<2) | <3(optimal<2) | <3(optimal<2) | <3(optimal<2) | <3(optimal<2) |
| Total hardness (ppm) | <1 | <1 | <1 | <1 | <1 |
| Silicon · Active silicon (ppm) | ≤0.5(optimal≤0.2) | ≤0.5(optimal≤0.2) | ≤0.5(optimal≤0.2) | ≤0.5(optimal≤0.2) | ≤0.5(optimal≤0.2) |
| Total organic carbon (ppm) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Residual oxygen (ppm) | ≤0.01 | ≤0.01 | 60.01 | ≤0.01 | 60.01 |
| Ionic metal (Fe/Mn.ppm) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
| Turbidity (NTU) | <1 | <1 | <1 | <1 | <1 |
| Grease | Not detected | Not detected | Not detected | Not detected | Not detected |
| Influent grains (um) | ≤1.0(optimal∈0.5) | ≤1.0(optimal≤0.5) | ≤1.0(optimal≤0.5) | ≤1.0(optimal≤0.5) | ≤1.0(optimal≤0.5) |
| Oxidant | Not detected | Not detected | Not detected | Not detected | Not detected |
