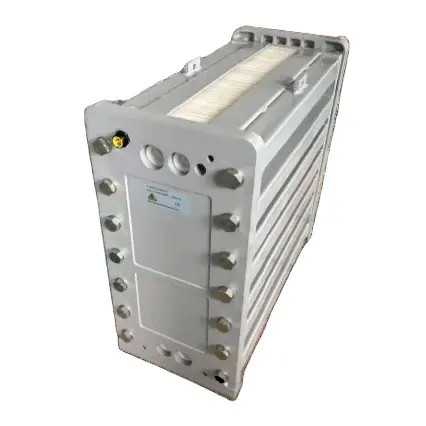

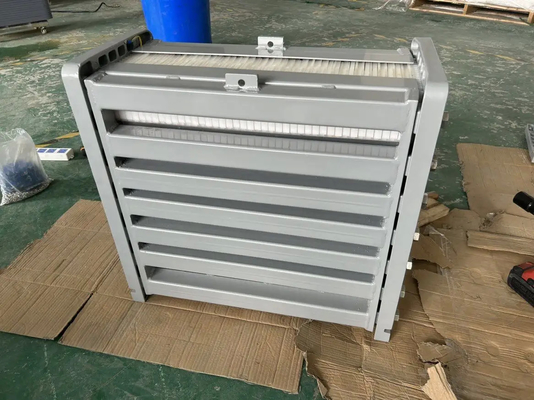

2.0-3.5m3/H EDI Stacks MK-3T For Deionized Water Replenishment
Brand Name:
China brand
Model Number:
MK-3T
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 pc
Price:
Negotiable
Supply Ability:
60000 Units per Month
Delivery Time:
5- 8 work days
Payment Terms:
T/T, Western Union
Standard Packaging:
standard export packing
Product Details
| Water Flow Range (m³/h) Of Module: | 2.0-3.5 | Standard Water Flow Rate (m³/h) Of Module: | 3.0 |
|---|---|---|---|
| Resistivity Of Produced Water (MΩ Cm) Of This Module: | >15 | Silicon And Base Removal Rate (%) Of This Module: | ≥99 |
| Fresh Water Inlet Pressure(Din、bar): | 1-5 | Fresh Water Outlet Pressure(Cin、bar): | 0.5-1.0 Lower Than Din End |
| Operating Voltage(VDC): | 60-120 | Advantages: | Perfect Structural Design,Easy To Operate |
| Application: | For High Quality Deionized Water Replenishment | ||
| Highlight |
2.0m3/H EDI Stacks,3.5m3/H EDI Stacks,Deionized Water Replenishment EDI Stacks |
||
Product Description
2.0-3.5m3/H China EDI Stacks MK-3T For High Quality Deionized Water Replenishment
Product Description
EDI Module | Electrodeionization
EDI is a new type of ultra-pure water technology developed in the 1990s, Its development is a revolutionary advance in the history of pure water production technology. EDI can replace traditional ion exchange technology, produce stable deionized water. Unlike the hybrid ion exchange device, the EDI system does not require chemical regeneration, and does not have to be stopped for Adding resins or chemical regeneration. Therefore, EDI can achieve continuous production of water, and water quality is stable.Meanwhile, equipment investment and operating expenses are minimized.
EDI (electrodeionization) technology in ultrapure water equipment, as an important innovation in the field of modern water treatment, not only greatly improves the quality of pure water, but also significantly reduces operating costs and environmental burden. EDI technology cleverly combines the advantages of electrodialysis and ion exchange. By applying a weak electric field, ions in water molecules are prompted to move toward the electrodes, and are continuously removed or converted in the process, without the need for the chemical regeneration process of traditional ion exchange resins.
How EDI Technology Works
The working principle of EDI (electrodeionization) technology lies in the ingenious integration of electrodialysis (ED) and ion exchange (IX) technology to form an efficient and continuous desalination process. Inside the EDI module, the fresh water chamber and the concentrated water chamber are separated by a semipermeable membrane, while ion exchange resin is filled in the fresh water chamber to form a unique "electrically regenerated" ion exchange bed.
The EDI module achieves "self-regeneration" of the ion exchange resin during operation. Due to the effect of the electric field, the ions adsorbed by the resin will be continuously carried by water molecules to the concentrated water chamber for release, thus avoiding the cumbersome steps of regular acid and alkali regeneration in the traditional ion exchange process, which not only reduces the operating cost, but also reduces Environmental pollution.
Product features
- Using the full filling technology of the middle partition, the water quality is good
- No need to add salt and concentrate water circulation, easy to operate
- Excellent electrical performance, high current efficiency, low voltage, low energy consumption
- Pipelines are arranged side by side, two inlet and two outlet standard threaded interfaces, easy to install
- Perfect structural design to ensure zero leakage

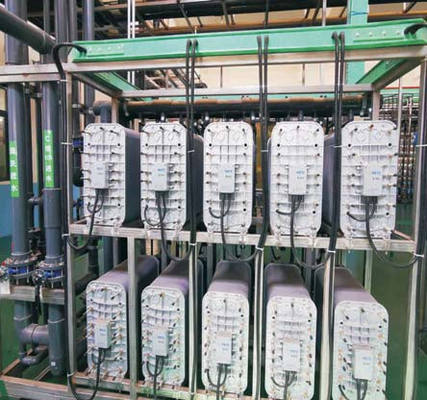

Application
Typical Applications for EDI:
- purified water
- feed to WFI (Water For Injection) stills
- stream generation / boiler feed during power generation
- microelectronics/semiconductor production
- for high quality makeup demineralized water
- for biomedical and laboratory use, by pharmaceutical compounds as pretreatment for distillation
- surface finishing
- chemical manufacturing
- food and beverage industry
- purified water
- feed to WFI (Water For Injection) stills
- stream generation / boiler feed during power generation
- microelectronics/semiconductor production
- for high quality makeup demineralized water
- for biomedical and laboratory use, by pharmaceutical compounds as pretreatment for distillation
- surface finishing
- chemical manufacturing
- food and beverage industry
Applicable industry
-Boiler feedwater for power, chemical and metallurgical industries
-Super pure water for electronics, semiconductors and precision machinery
-Water for chemical processes
-Medical water
-Ultrapure lab water
-Boiler feedwater for power, chemical and metallurgical industries
-Super pure water for electronics, semiconductors and precision machinery
-Water for chemical processes
-Medical water
-Ultrapure lab water
Specification
| MK- Series water inlet requirements | ||||
| Water inlet requirements | MK Series | Water output | MK-3T | MK-5T |
| Temperature range (℃) | 15-35(Top 25) | Water flow range (m³/h) | 2.0-3.5 | 3.5-5.5 |
| Influent PH | 6.5-9.0 | Standard water flow rate (m³/h) | 3.0 | 5.0 |
| Influent conductivity (us/cm) | 1-10(Optimal<5) | Resistivity of produced water (MΩ cm) | >15 | >15 |
| Total carbon dioxide (ppm) | <3(Optimal<2) | Silicon and base removal rate (%) | ≥99 | ≥99 |
| Total hardness (ppm) | <1 | Operation parameters | MK-3T | MK-5T |
| Silica ·Active Silicon(ppm) | ≤0.5(Optimal≤0.2) | Fresh water inlet pressure(Din,bar) | 1-5 | 1-5 |
| Total organic carbon (ppm) | ≤0.5 | Fresh water outlet pressure(Cin,bar) | 0.5-1.0 lower than Din end | 0.5-1.0 lower than Din end |
| Residual chlorine (ppm) | ≤0.01 | Concentrated water inlet pressure(Dout,bar) | 0.5-2 | 0.5-2 |
| Ionic metal (Fe/Mn.ppm) | 60.01 | Concentrated water outlet pressure(Cout,bar) | 0.5-1.0 lower than Din end | 0.5-1.0 lower than Din end |
| Turbidity (NTU) | <1 | Operating voltage(VDC) | 60-120 | 80-160 |
| grease | Not detected | Operating current(A) | 2-5 | 2-5 |
| Influent particles(um) | ≤1.0(Optimal≤0.5) | Recovery rate(%) | 85-90 | 85-90 |
| Oxidants | Not detected | |||
For application cases, please click:https://www.fgwater.com/Industries/
About Us
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.
OUR CLIENTS
PRODUCTION SYSTEM
Our production system consist of a list of industry-specialized partnership factories accross China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings. All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stays highly reliable even under toughest conditions.
