High water permeability DOW UF Membranes SFP 2860XP / SFD 2860XP
DuPont Dow UF membranes are a technological advancement in water treatment, providing a reliable and innovative solution to the problem of water purification. These high-efficiency membrane materials can effectively retain impurities, microorganisms and organic matter in water through their microscopic pore structure, ensuring that the water quality meets the highest standards.
These UF membranes not only excel in filtration performance, but also have excellent stability and durability. Whether used in drinking water purification, industrial wastewater treatment or water treatment processes in food processing and production, these membrane products can reliably provide excellent results and meet various water treatment needs.
DuPont Dow UF membranes not only focus on improving water treatment efficiency, but also are committed to energy conservation and environmental protection. Its low energy consumption characteristics make it an ideal choice for sustainable development, helping to reduce operating costs and reduce environmental impact.
In general, DuPont Dow UF membranes represent innovation and excellence in water treatment technology, providing high-quality and reliable water treatment solutions for various industries.
Product Specifications
| Membrane area |
Module volume |
Weight
(empty/ water filled) |
| Model |
Type |
/ |
m2 |
ft2 |
Liters |
Gallons |
Kg/lbs |
Kg/lbs |
| SFP-2860XP |
Industrial |
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
| SFD-2860XP |
NSF/ANSI 61 and 419 |
|
51 |
549 |
35 |
9.3 |
48/83 |
106/183 |
Figure 1: SFP and SFD 2860XP (8-inch diameter)
| Properties |
|
Length |
|
|
Diameter |
Width |
|
| Units |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
| SI (mm) |
1860 |
1500 |
1630 |
1820 |
225 |
180 |
342 |
Operating Parameters
| |
SI units |
US units |
| Filtrate Flux @ 25ºC |
40-110 l/m2/ hr |
24-65 gfd |
| Flow range |
2.0 – 8.5 m3/hr |
8.8 – 37.4 gpm |
| Temperature |
1-40ºC |
34-104ºF |
| Max. inlet module pressure (@ 20ºC) |
6.25 bar |
90.65 psi |
| Max. operating TMP |
2.1 bar |
30.5 psi |
| Max operating air scour flow |
12 nm3/hr |
7.1 scfm |
| Max backwash pressure |
2.5 bar |
36 psi |
| Operating pH |
2- 11 |
| NaOCl (max.) |
2,000 mg/L |
| Particle size (max.) |
300 µm |
| Flow configuration |
Outside in,dead end flow |
| Expected filtrate turbidity |
≤0.1 NTU |
| Expected filtrate SDI |
≤2.5 |
| / |
|
| / |
|
The difference between 28XX and 26XX

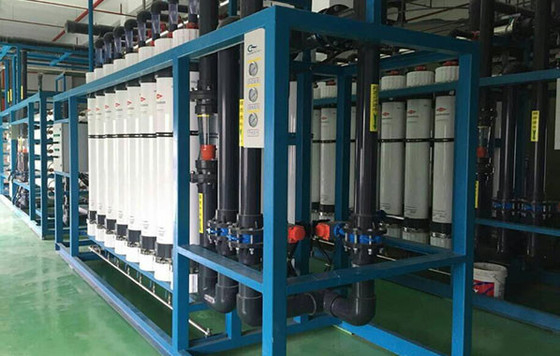

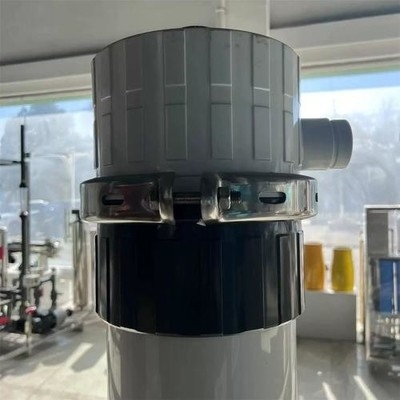

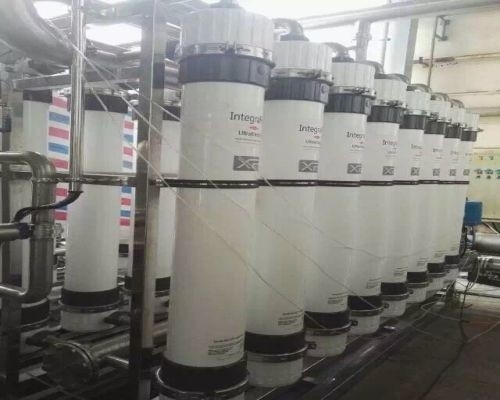

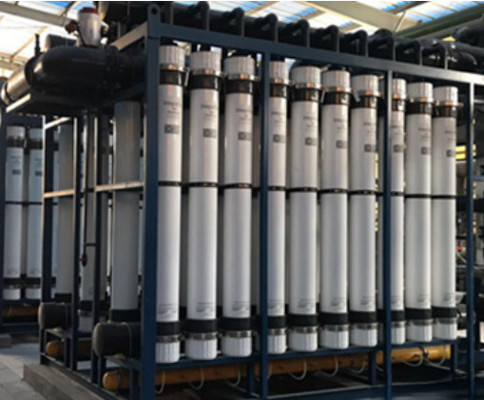

MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
For detailed parameters, please visit:
