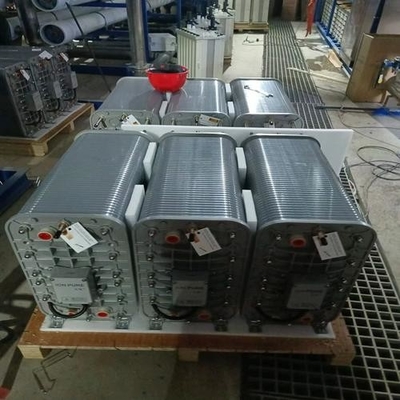

Ionpure CEDI LX-Z IP-LX8000Z-5 With Significantly Lower Operating Costs

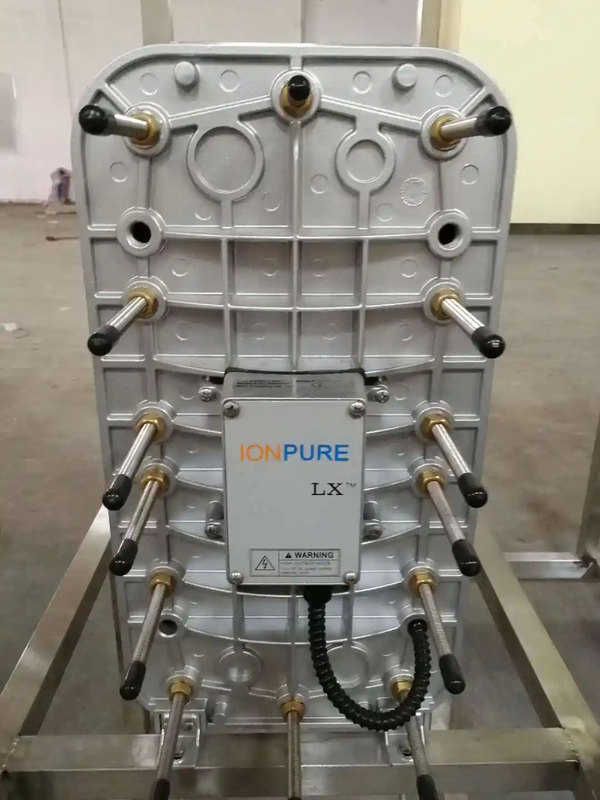

Ionpure LX-Z — Industrial CEDI Module

It has the following significant advantages:

1‌.High efficiency desalination and high recovery rate‌: Siemens EDI module adopts advanced electric-driven ion exchange technology, which can efficiently remove cations and anions in water, ensuring that the conductivity of the effluent water is stable at an extremely low level for a long time, usually below 0.055 μS/cm. This high-purity water is suitable for the production of high-precision electronic products, greatly improving the product yield.
In addition, the high recovery rate characteristics of the module enable it to achieve a water recovery rate of up to 95%, significantly saving water resources and reducing water costs.

2‌.Low energy consumption‌: Through the intelligent control system, the Siemens EDI module can accurately adjust the current and voltage, and compared with the traditional two-stage reverse osmosis plus mixed bed process, the energy consumption is reduced by about 30%. This not only reduces the company's electricity bill, but also achieves a win-win situation in economic and environmental benefits.

‌3.Compact design and convenient installation‌: The Siemens EDI module adopts a compact design, integrating key components in a small module unit, greatly reducing the footprint of the equipment. This design not only solves the problem of cramped space, but also makes installation and maintenance more convenient.

4‌.High purity and stability‌: The purity of the water from the EDI module is much higher than that of traditional methods, which can meet the needs of many high-precision applications. The water quality of its output water is equivalent to or even better than that of the mixed bed, and the water quality is stable and has no fluctuations‌.

5.Environmental protection and energy saving‌: No chemical agents need to be added during the treatment process, which reduces environmental pollution. At the same time, its energy consumption is relatively low, which meets environmental protection requirements‌.

‌6.Easy maintenance‌: The EDI module has a compact structure, simple maintenance, and reduced operating costs. Optimizing the design and operating parameters can significantly improve the quality of pure water. For example, improving the chamber septum design can improve the uniformity of water flow distribution and ensure that each area can effectively remove ions‌.

Key Applications for the EDI Ionpure IP-LX8000Z-5:
Flow rates range from 0.22 m3/h (1 gpm) to 10m3/h (44 gpm) per module

Significantly lower operating costs than conventional ion exchange

Generates mixed-bed quality DI water without chemicals

Continuous rather than batch production for consistent quality

Dual O-ring seals for leak-free operation

No acid/base, neutralization system or replaceable DI tanks required

Resin-filled concentrates for optimal performance and ease of operation

Continuous operation with feed concentrations up to 0.05 ppm (total CI2)

Wetted materials of construction meet NSF 14 and NSF 61 requirements

EDI Ionpure IP-LX8000Z-5 Operation and Quality Assurance Criteria:

Installation should be indoors, out of direct sunlight, with a maximum ambient temperature of 113°F (45°C).
Each module is factory tested to meet strict industry standards and manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.
Halal Certified. The Ionpure IP-LX8000Z-5 is manufactured to Islamic Food and Nutrition Council of America (IFANCA) standards and carries the Crescent M Halal logo.

QUALITY ASSURANCE STANDARDS

CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.

About the operating environment of the IONPURE LX-Z module:

The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.

* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

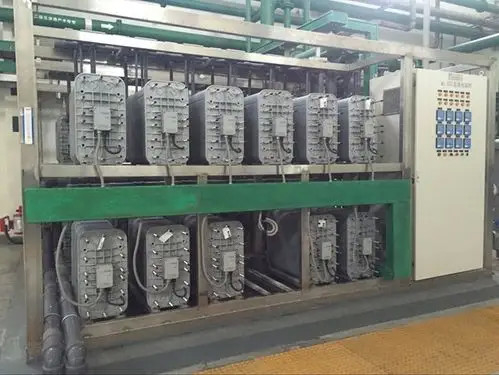

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
