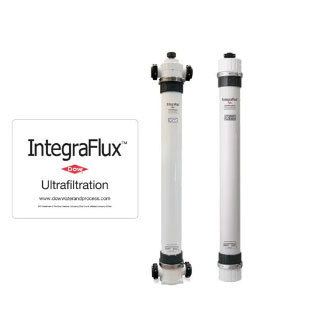

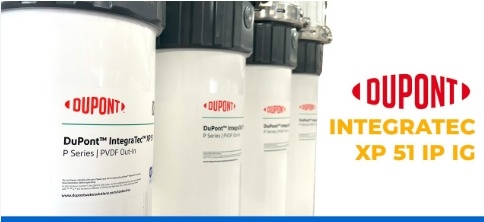

DuPont™ XP 51 IG PVDF UF Module High Recovery Rate For Industrial Water Treatment

DuPont™ XP 51 IG PVDF UF Module – High Recovery Rate For Industrial Water Treatment

The DuPont™ XP 51 IG is a premium polyvinylidene fluoride (PVDF) hollow fiber ultrafiltration (UF) membrane, engineered for superior performance in demanding water treatment applications. Designed with high chemical resistance and robust durability, this membrane delivers reliable filtration efficiency for industrial, municipal, and process water systems.

Key Features:

• Advanced PVDF Hollow Fiber Technology – Ensures high mechanical strength and long-term stability.

• High Chlorine and Chemical Resistance – Withstands aggressive cleaning regimes, reducing fouling and maintenance.

• Outer-Pressure (Out-to-In) Filtration – Handles high turbidity and suspended solids with minimal pretreatment.

• Precision Filtration (0.03μm Pore Size) – Effectively removes bacteria, viruses, and colloidal particles for superior water quality.

• Optimized for Large-Scale Systems – Available in standard 8-inch diameter configurations for high-capacity applications.

Applications:

• Industrial Wastewater Treatment & Reuse (e.g., chemical, textile, mining)

• Drinking Water Purification (removal of pathogens and turbidity)

• RO/NF Pretreatment (seawater desalination, boiler feed water)

• Municipal Water & Wastewater Treatment (tertiary filtration for reuse)

Technical Specifications:

• Membrane Material: Hydrophilic PVDF

• Filtration Mode: Dead-end / Crossflow (Outer-Pressure)

• Operating pH Range: Broad tolerance for acidic and alkaline conditions

• Temperature Range: Suitable for cold to moderate-temperature operations

• Certifications: Compliant with industry standards for water treatment

Why Choose DuPont™ XP 51 IG?

The XP 51 IG combines high flux performance, durability, and ease of maintenance, making it an ideal choice for harsh water treatment environments. Its PVDF-based construction ensures resistance to fouling and chemical degradation, while its optimized design maximizes system efficiency and lifespan.

Product Specifications

Figure 1:  XP 51/ XP 51 IG (8-inch diameter)

Operating Parameters

The difference between 28XX and 26XX

MODULE INSTALLATION

For application cases, please click:https://www.fgwater.com/Industries/

For detailed parameters, please visit:

DOW SFP-2860 And SFD-2860 Ultrafiltration Module	DuPont Ultrafiltration SFD 2860 XP IntegraFlux Module
