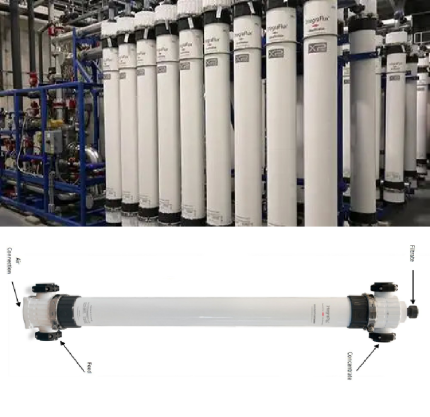

DuPont XP 77 IG 8 Inch PVDF UF Membrane for Industrial Water Treatment
Product Details
| Diameter Of XP 77 IG: | 8 Inch | Membrane Area Of XP 77 IG: | 77 M² |
|---|---|---|---|
| Material Of XP 77 IG: | PVDF | Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter Of XP 77 IG: | 0.03 µm | Operating Pressure Of XP 77 IG: | 1-5 Bar |
| Max. Operating TMP Of XP 77 IG: | 2.1 Bar | Max Operating Air Scour Flow Of XP 77 IG: | 12 Nm3/hr |
| XP 77 IG Usage: | Surface Water, Seawater,Drinking Water | XP 77 IG Adavantage: | Long Life And Stability |
| Highlight |
DuPont XP 77 UF membrane,industrial water treatment membrane,8 inch PVDF ultrafiltration module |
||
Product Description
| Attribute | Value |
|---|---|
| Diameter of XP 77 IG | 8 inch |
| Membrane Area of XP 77 IG | 77 m² |
| Material of XP 77 IG | PVDF |
| Flow Range Per Module | 2.0 – 8.5 m³/hr |
| Nominal pore diameter of XP 77 IG | 0.03 µm |
| Operating Pressure of XP 77 IG | 1-5 bar |
| Max. operating TMP of XP 77 IG | 2.1 bar |
| Max operating air scour flow of XP 77 IG | 12 nm3/hr |
| XP 77 IG Usage | Surface Water, Seawater, Drinking Water |
| XP 77 IG Advantage | Long Life And Stability |
The DuPont UF XP 77 IG is a high-performance ion exchange membrane designed for chlor-alkali electrolysis applications. It delivers high current efficiency (≥96%) and low energy consumption, enabling cost-effective production of caustic soda (NaOH), chlorine (Cl₂), and hydrogen (H₂).
- Ultra-Strong PVDF Membrane Material - Resists tearing, abrasion, and chemical degradation
- Superior Chemical Tolerance - Withstands aggressive cleaning agents and extreme pH conditions
- Outer-to-In Filtration Design - Handles high solids content and turbid feed water with minimal fouling
- Precision-Level Filtration Efficiency - Removes microorganisms, colloids, and fine particulates effectively
- Optimized for Heavy-Duty Systems - Ideal for large-scale industrial installations requiring extended service life
- Industrial Wastewater Reclamation (chemical processing, mining, power generation)
- Seawater Pretreatment for Desalination Plants
- Aggressive Process Water Treatment (textile dyeing, metal finishing, petrochemical)
- Municipal Water Purification in High-Stress Environments
- Material Science: Hydrophilic PVDF with enhanced structural integrity
- Filtration Mechanism: Outer-pressure configuration for high solids tolerance
- Operational Resilience: Broad chemical and thermal operating window
- Certifications: Meets international standards for industrial water safety
The XP 77 IG stands apart through its uncompromising resilience in corrosive and high-load environments. Its advanced polymer formulation resists common membrane failure modes, while the optimized fiber geometry balances flux stability with energy efficiency.
| Model | Type | Membrane Area (m²/ft²) | Module Volume (Liters/Gallons) | Weight (empty) Kg/lbs | Weight (water filled) Kg/lbs |
|---|---|---|---|---|---|
| XP77 IG | Industrial | 77 / 829 | 39 / 10.3 | 61 / 100 | 135 / 220 |
| XP77 | NSF/ANSI 61 and 419 | 77 / 829 | 39 / 10.3 | 61 / 100 | 135 / 220 |
| Parameter | SI units | US units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m²/hr | 24-65 gfd |
| Flow range | 2.0 - 8.5 m³/hr | 8.8 - 37.4 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Max. operating TMP | 2.1 bar | 30.5 psi |
| Max operating air scour flow | 12 nm³/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| Particle size (max.) | 300 µm | |
| Flow configuration | Outside in, dead end flow | |
| Expected filtrate turbidity | ≤0.1 NTU | |
| Expected filtrate SDI | ≤2.5 | |
For application cases, please visit: www.fgwater.com/Industries/
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment equipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water reverse osmosis (BWRO), ultrafiltration (UF) system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners.
Our production system consists of a list of industry-specialized partnership factories across China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings.
All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stay highly reliable even under toughest conditions.
