Veolia MK-3PharmHT Hot Water Sterilization EDI Module For Grade Ultrapure Water Preparation
Product Details
| EDI Stack Resistivity: | ≥ 10 MOhm-cm | EDI Stack Sodium: | ≥ 99.9% Removal |
|---|---|---|---|
| EDI Stack Silica (SiO2): | Up To 99% Removal | EDI Stack Hot Water Sanitization Cycles: | 160 |
| EDI Stack Inlet Pressure: | ≤ 6.9 Bar (100 Psi) | EDI Stack Pressure Drop: | 1.4–2.8 Bar |
| EDI Stack Total Exchangeable Anions (TEA As CaCO3: | ≤ 63.6 Ppm | EDI Stack Conductivity Equivalent: | ≤ 109 μS/cm |
| Application: | Grade Ultrapure Water Preparation | ||
| Highlight |
Veolia MK-3PharmHT EDI module,Hot water sterilization EDI module,Ultrapure water preparation EDI module |
||
Product Description

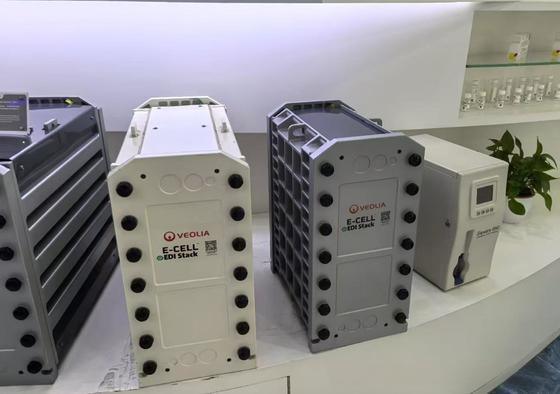

The Veolia MK-3PharmHT hot water disinfection EDI module is a high-performance electrodeionization (EDI) product from Suez (Veolia)'s E-CELL® series, designed for industries requiring consistent ultrapure water and stringent hygiene standards. Utilizing advanced hot water disinfection technology (up to 85°C), this module consistently produces high-purity water with a resistivity of ≥10 MΩ·cm without the need for chemical regeneration, significantly reducing operating costs and simplifying system operation.
1. Core Features:
High-Temperature Disinfection Capability: Supports hot water disinfection at temperatures up to 85°C, enabling up to 160 disinfection cycles, effectively inhibiting microbial growth and meeting the stringent hygiene requirements of the pharmaceutical and biotechnology industries.
Excellent Product Water Quality: Consistently produces water with a resistivity of ≥10 MΩ·cm, a sodium ion removal rate of ≥99.9%, and a silica removal rate of up to 99%, ensuring ultrapure water quality superior to traditional mixed-bed processes.
Energy Efficiency: The module utilizes a resin-filled concentrate chamber and countercurrent operation, resulting in low power consumption and a recovery rate of up to 90-96%. Regeneration requires no brine or chemicals, reducing environmental pollution and operational complexity.
Sustainable and Stable Performance: The module utilizes a contamination-resistant design and high-quality materials, and comes with a three-year prorated warranty, ensuring long-term leak-free operation and stable water quality.
Modularity and Convenience: The module features a compact design (approximately 30 × 61 × 54 cm, weighs approximately 100 kg) and supports parallel connection for easy expansion of water production capacity (single module flow rate range: 1.6–5.4 m³/h), making it suitable for systems of varying sizes.
2. Main Applications:
Pharmaceutical Industry: Water for Injection (WFI), purified water preparation, and high-temperature sterilization processes.
Semiconductor and Microelectronics: Ultrahigh-purity water for chip cleaning and wafer fabrication.
Power Generation and Energy: Boiler feed water and turbine cooling water.
Laboratory and Food & Beverage: Water for analytical instruments and food processing.
3. Why Choose MK-3PharmHT? Veolia MK-3PharmHT EDI module integrates ion exchange membrane and resin technology, and realizes continuous deionization and resin regeneration through DC electric field, ensuring the production of ultrapure water without chemical pollution and low operation and maintenance costs. Its excellent heat resistance and stability make it an ideal choice for high-standard water treatment projects.
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m3/h (15 gpm) |
| Flow Rate Range | 1.6-5.4 m3/h (7.0-23.8 gpm) |
| Dimensions | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Shipping Weight | 100 kg (220 lbs) |
| Recovery | Up to 96% |
| Voltage | 0-300 VDC |
| Amperage | 0-5.2 ADC |
- CE, RoHS, CSA, and EAC certified
- FDA-compliant materials
- UKCA certified
- ISO 9001 and ISO 14001 compliant manufacturing
- Halal certified by IFANCA®
For detailed performance projections and application-specific guarantees, Veolia offers the Winflows® software or direct technical support.
For more models and specifications, visit our Veolia EDI Module page.
