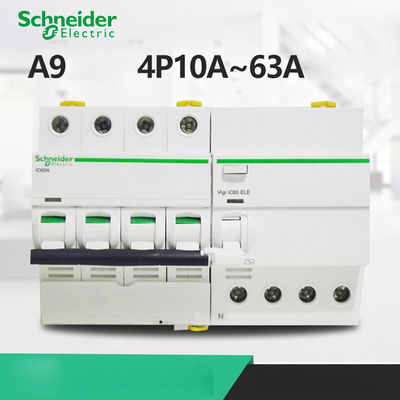

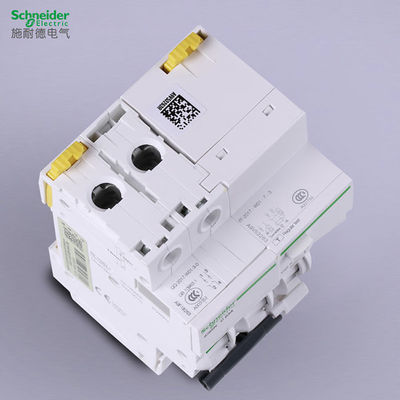

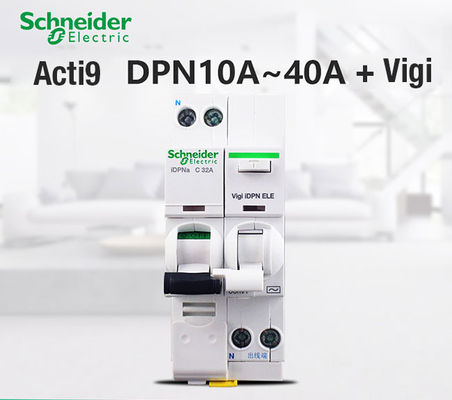

Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A
Product Details
| Poles: | DPN, 2P, 3P, 4P | Ampere (A): | 10, 16, 20, 25, 32, 40, 50, 63 |
|---|---|---|---|
| Voltage: | AC 230V / 400V | Standard: | IEC61009-1 |
| Trip Current: | 30mA, 100mA Etc. | Insulation: | Class 2 |
| Type: | AC, A, SI | Material: | Engineering Plastic Of Fire Retardant |
| Install: | 35mm DIN Rail Mount | Termminals: | Box/ Screw |
| Highlight |
molded case circuit breaker,electric circuit breaker |
||
Product Description
Vigi for Acti 9 iC60 Schneider Electric Miniature Circuit Breaker DPN, 2P,3P,4P from 10 to 63A

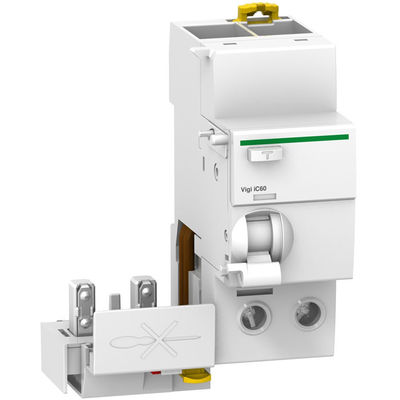

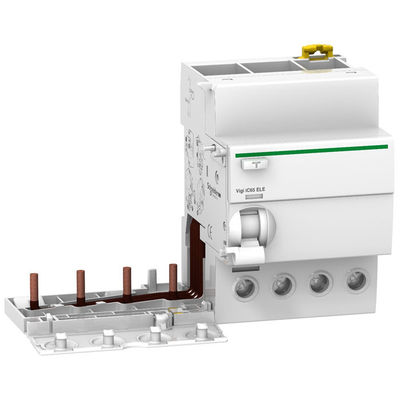

Residual current add-on devices up to 63 A for Acti 9 iC60 Miniature Circuit Breakers
Miniature circuit breaker with overload protection is a kind of electric devices or advanced circuit breaker for both overload/short circuit protection plus earth leakage fault detection (Residual current device). It is widely used is applications from household to industries.
Part of 9 Series
Simple to install and ideal for all industrial and commercial buildings, the residual current add-on devices for Acti 9 iC60 provide you with leakage protection whilst ensuring a greater continuity of service.
-
Features
Fully compliant with national standards and easy to install, the Acti 9 Vigi iC60 comes with a wealth of features:
-
Class-2 insulation: ensures continuous protection for both operators and unqualified personnel.
-
VISI-TRIP: quickly detects faulty outgoers and reduces intervention time.
-
Fully immune earth leakage protection: provides enhanced continuity of service, especially with the new “SI” (Super Immune) type for application in polluted environments and networks.
-
Easily connect to Acti 9 iC60 Miniature Circuit-Breakers (MCBs) either electronically or manually.
-
Nominal current ranges from 25 to 63 A.
-
Comes in “SI” (Super Immune), AC, and A types.
-
30 mA sensitivity for additional protection against direct contact (in compliance with IEC 60364).
-
100 mA, 300 mA, 500 mA and 1000 mA sensitivities for additional protection against fire and indirect contact (in compliance with IEC 60364).
-
“SI” (Super Immune) type: protects sensitive circuits (IT equipment) and those prone to disturbances (electronic ballasts for light fixtures, power electronics).
-
Selective type: guarantees selectivity to correctly distinguish between different residual current devices (RCDs) and trip the device closest to the fault.
-
Complies with IEC EN 61009-1 standard, certified by national authorities.
-
Acti 9 iC60 DIN rail miniature circuit breakers (MCBs) retain the same characteristics when combined with an Acti 9 Vigi iC60 DIN rail add-on residual current device (RCD).
Benefits
From adding protection to polluted environments and networks to ensuring a greater continuity of service, the Acti 9 Vigi iC60 also boasts impressive environmental credentials.
-
100% earth leakage protection in final distribution.
-
Greater continuity of service with VisiTrip.
-
Greater electrical immunity with “SI” (Super Immune) type.
-
Meaningful part numbers make selection easy.
-
Easy to install with robust terminal connections.
-
Environmentally friendly, made with 100% recyclable and recoverable materials.
Applications
Ideal for installation in all industrial and commercial buildings, residual current add-on devices provide protection against:
-
Electrocution (in compliance with IEC 60364 installation standards and national standards).
-
Fire hazards caused by leakage currents flowing into building materials.
-
|
range |
Acti 9 |
|
|---|---|---|
|
product or component type |
Add-on residual current devices |
|
|
device short name |
Vigi iC65 |
|
|
poles description |
4P |
|
|
[In] rated current |
40 A |
|
|
earth-leakage sensitivity |
100 mA |
|
|
earth-leakage protection time delay |
Instantaneous |
|
|
Earth leakage protection type |
Type AC |
|
|
network type |
AC |
|
|
network frequency |
50/60 Hz |
|
|
[Ue] rated operational voltage |
230 V AC 50/60 Hz conforming to GB 16917.22 |
|
|
standards |
GB 16917.22 |
|
|
9 mm pitches |
4 |
|
|
device location in system |
Outgoer |
|
|---|---|---|
|
residual current tripping technology |
Voltage dependent |
|
|
range compatibility |
Acti 9 iC60 |
|
|
product compatibility |
Single terminal |
|
|
local signalling |
Trip indicator |
|
|
mounting mode |
Clip-on |
|
|
mounting support |
DIN rail |
|
|
electrical connection to mcb |
By screws |
|
|
height |
91 mm |
|
|
depth |
73.5 mm |
|
|
ambient air temperature for operation |
-25…60 °C |
|
|---|
|
Sustainable offer status |
Green Premium product |
|
|---|---|---|
|
REACh Regulation |
REACh Declaration |
|
|
EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
|
|
Mercury free |
Yes |
|
|
RoHS exemption information |
|
|
|
China RoHS Regulation |
Download RoHS China Declaration |
|
Product name |
residual current circuit breaker, operated circuit breakers, ED81 1 Pole Miniature Circuit Breaker, RCCB circuit breaker, mini rcbo |
|
Rated frequency |
50/60 Hz, 50Hz, 50 HZ/60HZ |
|
Breaking capacity |
4.5KA, 4KA/6KA, 6KA/10KA |
|
Standard |
IEC61008-1, IEC60947-2, GB14048.2/IEC60947-2, ISO9001, IEC60898-1/GB10963.1 |
|
Material |
Copper, High Standard Plastic Silver Copper, Silver Contact, Flame Resistant Plastic, IP20 |
|
Color |
White, White/green, decided by customer, White/Transparent, Black and white |
|
Mechanical life |
4000 Times, 20000 Times |
|
Application |
Short-circuit Protection, Electrical Power, earth leakage protection |
|
Pole |
2P, 4P |
|
Endurance |
4000 |
|
Curve type |
C, B/C |
|
Printing |
Standard or customized, Customized |
|
Protection degree |
Housing IP40, IP 20 |
|
Rated operating voltage |
400V |
