EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V

EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V

  • EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V
  • EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V
  • EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V
  • EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V
Product Details:
Place of Origin: China
Brand Name: Schneider Electric
Certification: CE, CB, KEMA/Dekra etc.
Model Number: EZD
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD20~USD200
Packaging Details: Standard export carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Product Name: Mccb Moulded Case Circuit Breaker,Good Quality 3 Pole Tmax 100A Mccb Molded Case Circuit Breaker,compact NS 800A 1000A 1250A 1600A Mccb Molded Case Circuit Breaker Rated Voltage: 380V,380/400V,AC230/440/660,230/400V AC 50/60Hz
Rated Current: 16,25,32,40,50,63,80,100,125,160,200,250,315,350,400,500,630A Poles Number: 3,4,3P 4P
Breaking Capacity: 25-50kA Material: Plastic,High Standard Plastic Silver Copper,Nylon PA66
Installation: Fixed And Plug-in Standard: IEC 60947-2
High Light:

industrial type circuit breaker

,

electric circuit breaker

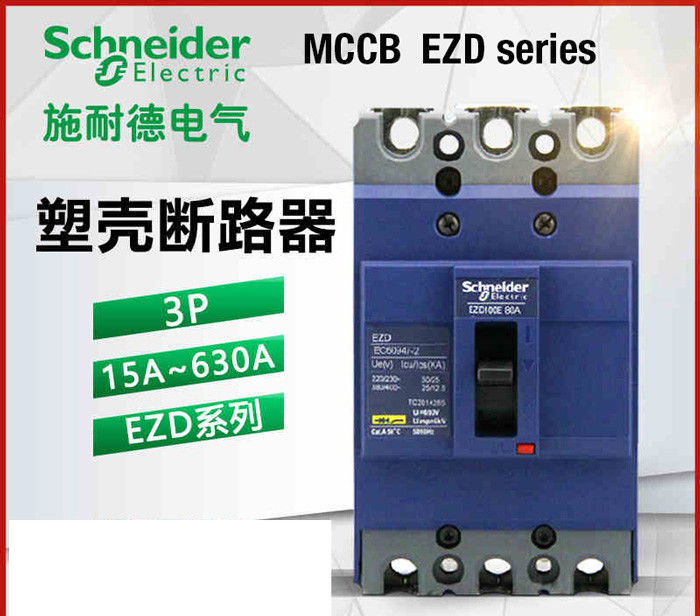

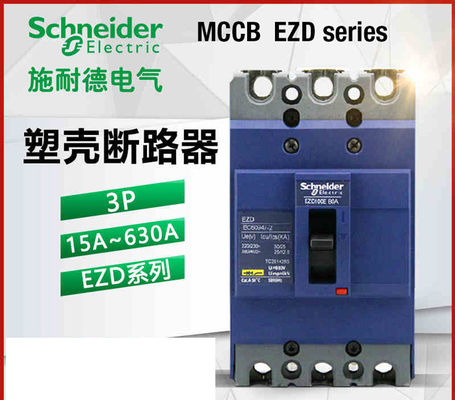

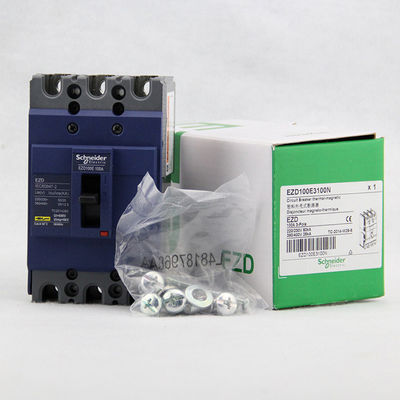

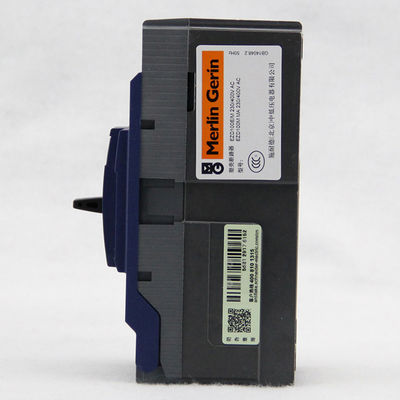

Schneider EZD Molded Case Circuit Breaker 3,4 Pole 15~100A,125~630A 25kA, 36kA, 50kA, 380V 415V Icu up to 50kA IEC-60947


Ideal for secondary electrical distribution
Molded-case circuit breakers (MCCB) with fixed settings, rated from 15 to 630 A, ideal for simple applications in small to medium-sized buildings

The EZD moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor.



Frame size:
EZD series moulded case circuit breaker: 63A, 125A, 160A, 250A, 320A, 400A, 630A
● Rated operational voltage: Ue (VAC): 400/415/500
● Breaking capacity code: E,M,S 25kA,36kA,50kA
● Number of poles: 3P, 4P
● Release type:

  • thermal magnetic fixed type;

  • electronic type - 630A

● Installation method: Fixed type; pulg-in type

Features:

EasyPact EZD range is the easy choice for total simplicity.
The fixed version design is particularly adapted to the OEM and building markets, offering good performance at competitive price.

  • Rated current from 15 to 630 A

  • Breaking capacity up to 50 kA at 400/415 V

  • 3 and 4 pole versions

  • 3 frame sizes

  • Thermal-magnetic for the entire range

  • Complete range of auxiliaries: rotary commands, auxiliaries, shunt trip, phase barrier, terminal cover, undervoltage trip

  • Built-in integrated earth-leakage protection (EZC 250 ELCB)

  • Compliance with international standards: IEC 60947-1 and 2, CCC, EAC and other local certifications

  • Green Premium product



Benefits

  • Panel builders: Economic and competitive solution bringing flexibility, ease of installation and total safety

  • OEMs: High endurance and maintenance free operation assure continuous performance of machines

  • Clients: Well balance of budget and quality, performance, reliability

  • Conforms to international standards: IEC 60947-2, and meets the requirements of common protection applications

Applications

Protection and management of low-voltage electrical installations:

  • Standard applications: industries, buildings

  • Earth-leakage protection (EZD 250 ELCB)


EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 0

Specification
Model -  Braking Capacity - Pole -  Rate Current In -  Install type
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 1
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 2

Main

range of product

Easy EZD Series

product or component type

Circuit breaker

device short name

Easy EZD250

circuit breaker name

Easy EZD250

device application

Distribution

poles description

3P

protected poles description

3t

network type

DC
AC

network frequency

50/60 Hz

[In] rated current

250 A at 40 °C

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

[Ue] rated operational voltage

550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2

breaking capacity code

N

breaking capacity

20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 125 V DC 1P conforming to IEC 60947-2
20 kA Icu at 250 V DC 2P conforming to IEC 60947-2
25 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service breaking capacity

10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 125 V DC conforming to IEC 60947-2
10 kA at 250 V DC conforming to IEC 60947-2
25 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
4 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

suitability for isolation

Yes conforming to IEC 60947-2

utilisation category

Category A

trip unit name

TM-D

trip unit technology

Thermal-magnetic

trip unit rating

160 A at 50 °C

protection type

Overload protection
Short-circuit protection

pollution degree

3 conforming to IEC 60664-1
3 conforming to IEC 947-1

Complementary

control type

Toggle

mounting mode

Fixed

mounting support

Backplate

upside connection

Front

downside connection

Front

mechanical durability

10000 cycles

electrical durability

Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2

connection pitch

35 mm

local signalling

Positive contact indication

neutral protection setting

Without protection

earth-leakage protection

Without

height

165 mm

width

105 mm

depth

60 mm

Environment

standards

GB/T 14048.2
EN/IEC 60947-1
EN/IEC 60947-2

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

ambient air temperature for operation

-25…70 °C

ambient air temperature for storage

-35…85 °C

EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 3
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 4
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 5
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 6
EZD Molded Case Industrial Circuit Breaker 3 4 Pole 16~100A 125~630A 25kA 36kA 50kA 380V 415V 7
