| Place of Origin: | China |
| Brand Name: | Schneider Electric |
| Certification: | CE, CB, KEMA/Dekra etc. |
| Model Number: | EasyPact |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD100~USD1,200 |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000pcs/month |
| Product Name: | Mccb Moulded Case Circuit Breaker,Good Quality 3 Pole Tmax 100A Mccb Molded Case Circuit Breaker,compact NS 800A 1000A 1250A 1600A Mccb Molded Case Circuit Breaker | Rated Voltage: | 380V,380/400V,AC230/440/660,230/400V AC 50/60Hz |
|---|---|---|---|
| Rated Current: | 16,25,32,40,50,63,80,100,125,160,200,250,315,350,400,500,630A | Poles Number: | 3,4,3P 4P |
| Breaking Capacity: | 25-50kA, 70kA | Material: | Plastic,High Standard Plastic Silver Copper,Nylon PA66 |
| Installation: | Fixed And Plug-in | Standard: | IEC 60947-2 |
| Highlight: | industrial type circuit breaker,molded case circuit breaker |
||

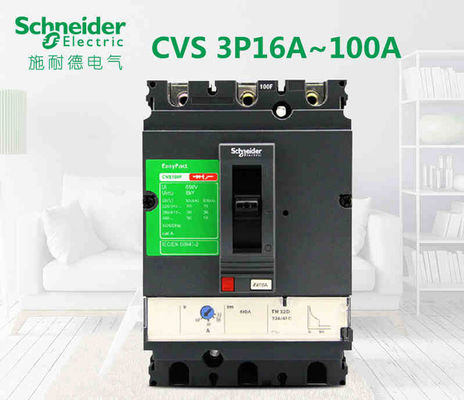

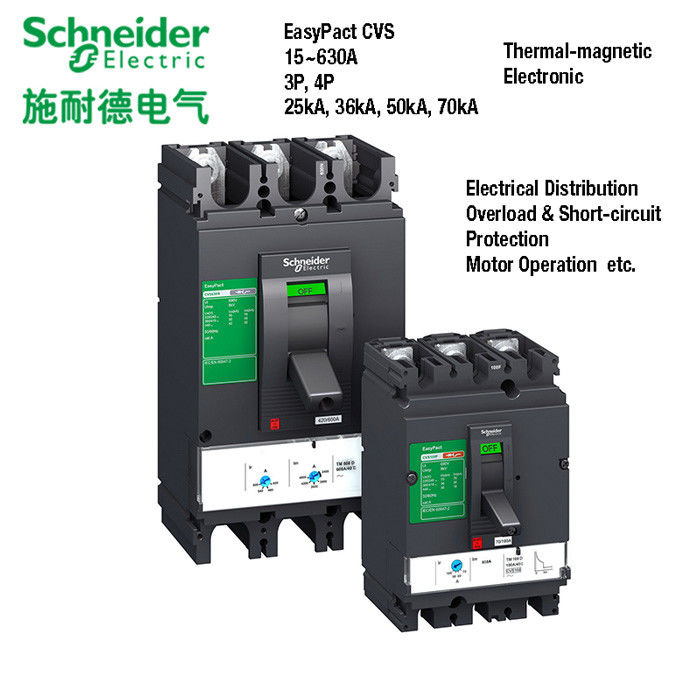

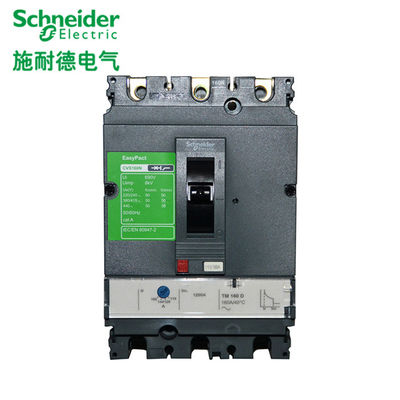

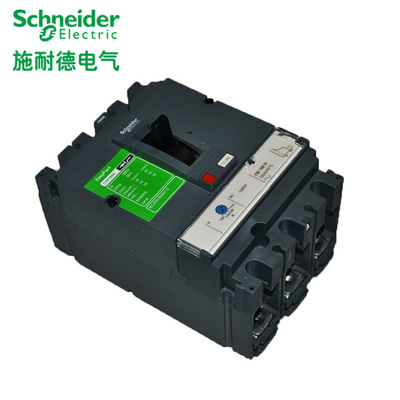

Schneider Electric EasyPact CVS Molded-case circuit breakers from 16 to 630 A 25kA,36kA,50kA,70kA 380V 415V Icu IEC-60947
Molded-case circuit breakers (MCCB) with adjustable settings, rated from 16 to 630 A, ideal for applications in small to medium-sized buildings.
The CVS moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor.
Frame size:
CVS series moulded case circuit breaker:
E type: 15, 20, 25, 30, 40, 50, 60, 75, 80, 100
B/F/N/H type:16, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 600, 630
● Rated operational voltage: Ue (VAC): 400/415/500
● Breaking capacity code: E,M,S 25kA,36kA,50kA
● Number of poles: 3P, 4P
● Release type:
thermal magnetic fixed type;
electronic type - 630A
● Installation method: Fixed type; pulg-in type
|
range of product |
Easypact CVS100...250 |
|---|---|
|
product or component type |
Circuit breaker |
|
device short name |
CVS250F |
|
device application |
Distribution |
|
poles description |
4P |
|
protected poles description |
4d |
|
neutral position |
Left |
|
Earth leakage protection (Vigi add on) |
Without |
|
[In] rated current |
250 A at 40 °C |
|
breaking capacity code |
F |
|
network type |
AC |
|
[Icu] Breaking capacity |
36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
utilisation category |
Category A |
|
trip unit name |
TM-D |
|
trip unit technology |
Thermal-magnetic |
|
trip unit rating |
250 A at 40 °C |
|
protection type |
Overload protection (thermal) |
|
network frequency |
50/60 Hz |
|---|---|
|
control type |
Toggle |
|
mounting mode |
Fixed |
|
mounting support |
Backplate |
|
upside connection |
Front |
|
downside connection |
Front |
|
connections - terminals |
Screw connection |
|
[Uimp] rated impulse withstand voltage |
8 kV conforming to EN/IEC 60947-2 |
|
thermal protection adjustment range |
175…250 A |
|
[Ics] rated service breaking capacity |
18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
mechanical durability |
20000 cycles |
|
electrical durability |
10000 cycles 415 V In conforming to IEC 60947-2 |
|
connection pitch |
35 mm |
|
contact position indicator |
Yes |
|
neutral protection setting |
1 x Ir (4d) |
|
long time pick-up adjustment type Ir |
Adjustable |
|
long time pick-up adjustment range |
0.7...1 x In |
|
long time delay adjustment type |
Fixed |
|
instantaneous pick-up adjustment type Ii |
Fixed |
|
instantaneous pick-up adjustment range |
2500 A |
|
height |
161 mm |
|
width |
140 mm |
|
depth |
86 mm |
|
net weight |
2.6 kg |
|
electrical shock protection class |
Class II |
|---|---|
|
standards |
EN 60947-2 |
|
product certifications |
GOST |
|
IP degree of protection |
IP40 |
|
pollution degree |
3 conforming to IEC 60664-1 |
|
ambient air temperature for operation |
-25…70 °C |
|
ambient air temperature for storage |
-50…85 °C |
Features
EasyPact CVS range is the easy choice for quality and value.
Designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings, EasyPact CVS circuit breakers deliver a high level of performance and cost-saving functionality that is unusual in their price range.
Rated current from 16 to 630 A
Breaking capacity from 25 to 50 kA at 400/415 V
3 and 4 pole versions
3 frame sizes
Thermal-magnetic and electronic protection available for the entire range
Extended, adjustable thermal protection from 0.7 to 1 times (TMD) or 0.5 to 1 times (electronic) the rating of the trip unit
Common accessories and auxiliaries with other Schneider Electric MCCB offers
Suitable for isolation
Earth-leakage protection by associated Vigi Module
Switch-disconnector versions also available
Compliance with international standards: IEC 60947-2, CCC, EAC and other local certifications
Green Premium product
Benefits
Specifiers – Conforms to international standards: IEC60947-2, and meets the requirements of the majority of common protection applications
Panel builders – Ease of installation. Only three frame sizes up to 630 A. Common accessories for complete range. Economic and competitive solution, yet meets major requirements of specifiers and clients
OEMs – High endurance and maintenance free operation ensures continuous performance of machines
Clients – Well balance of budget and quality, performance, reliability
Applications
Protection and management of low-voltage electrical installations:
Standard applications: industries, buildings
Earth-leakage protection
Motor protection
Generator protection
Switch-disconnectors
