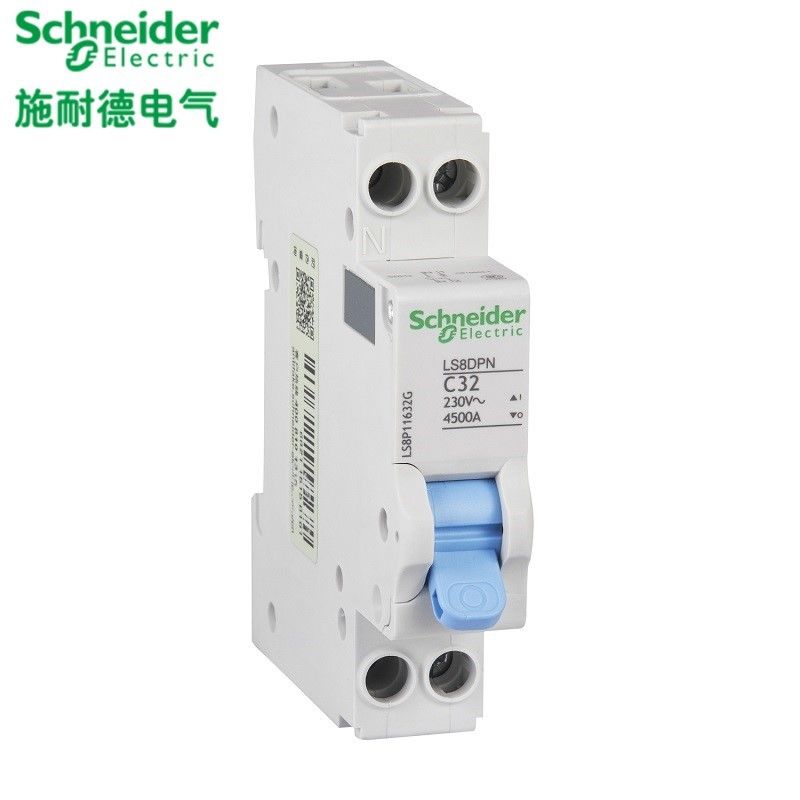

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution

  • LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution
  • LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution
  • LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution
  • LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution
LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution
Product Details:
Place of Origin: China
Brand Name: Schneider Electric
Certification: CE, CCC etc.
Model Number: LS8
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: USD2~50/unit
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (128)
Ultrafiltration Membrane Modules (49)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (123)
Moon Balloon Light (131)
Tripod LED Balloons (71)
Inflatable Light Tower (56)
Terminal Block Accessories (6)
Detailed Product Description
Model: LS8 Pole(s): 1,2,3,4, 1P+N
Volt: 220~240VAC, 380~400VAC Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC60898
Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A
Thermal Trip Curve: C,D Case Material: Nylon 66 Recylable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 20,000 Electrical Life: 10,000
Highlight:

industrial type circuit breaker

,

molded case circuit breaker

LS8 Terminal Distribution MCB, RCBO Schneider Electric Original Made In China Miniature Circuit Breakers 1~63 A



1,2,3, pole

1P+N

Residual Current Circuit Breaker with Overload Protection

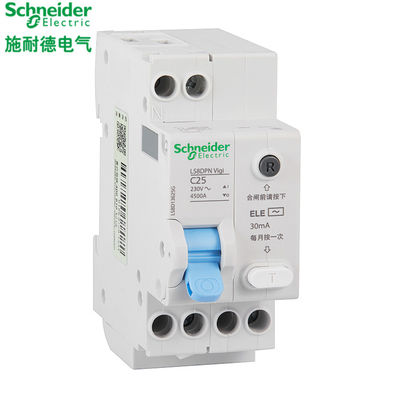

LS8 Vigi



main information
Applications Distribution protection
product type Miniature Circuit Breaker
product name LS8 miniature circuit breaker
Product short name Miniature circuit breaker LS8
Number of poles 1P
Number of protection poles 1
Rated current [In] 16 A in ... the 30 [deg.] C in line with GB 10963.1
Network Type AC
Trip unit type Thermal magnetic
Trip curve C
Breaking capacity 6000 A Icn in ... on 230 V AC 50 Hz in line with GB 10963.1
Isolation function Be applicable



Additional information
Network frequency 50 Hz
Rated operating voltage [ Ue ] 230 V
Magnetic trip limit 5...10 x In
Use breaking ability [ Ics ] 6000 A 100 % in accordance with GB 10963.1 - 230 V AC 50 Hz
Rated insulation voltage [ Ui ] 500 V AC 50 Hz
Rated impulse withstand voltage [ Uimp ] 4 kV
Control type handle
Local signal indication Combination, fault, fault trip
Installation type Locking clip locking
Installation method DIN rail mounting
Width ( multiple of 9mm ) 2
height 81 mm
width 17.7 mm
depth 79.1 mm
product weight 94...116 g
colour Light body : light grey (RAL 7035) handle : blue (Pantone 284C) locking buckle : white (B6)

Mechanical life 15,000 times
Electrical life 10,000 times
IP protection level IP20 ( terminal block )
IP40 ( front panel )
Stripping length 14 mm applied on the terminal or the lower terminal is connected
Wiring ability Wiring or lower wiring on tunnel terminals 1...25 mm2 Single-strand hard-wire without twisting terminal Terminal wiring on terminal or lower wiring 1...16 mm2 cord (optional) with or without cable terminal
Tightening torque Power supply circuit : 2 N.m in ... the screw terminals M5
Leakage current protection (required) additional assembly
The scope of products LS8 Vigi



surroundings
Standards compliant GB 10963.1  IEC60898
certified product CCC
Pollution level 2
Moisture resistance 2
Relative humidity 95 % in ... the 55 [deg.] C
Working elevation <= 2000 m
Operating temperature -25...60 °C
Storage ambient temperature -40...85 °C



LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 0

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 1

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 2

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 3

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 4

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 5

LS8 Miniature Circuit Breaker , MCB Circuit Breaker 1~63A 1 2 3 4P 1P+N Electrical Distribution 6
