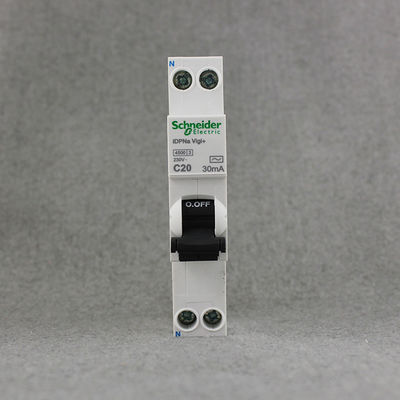

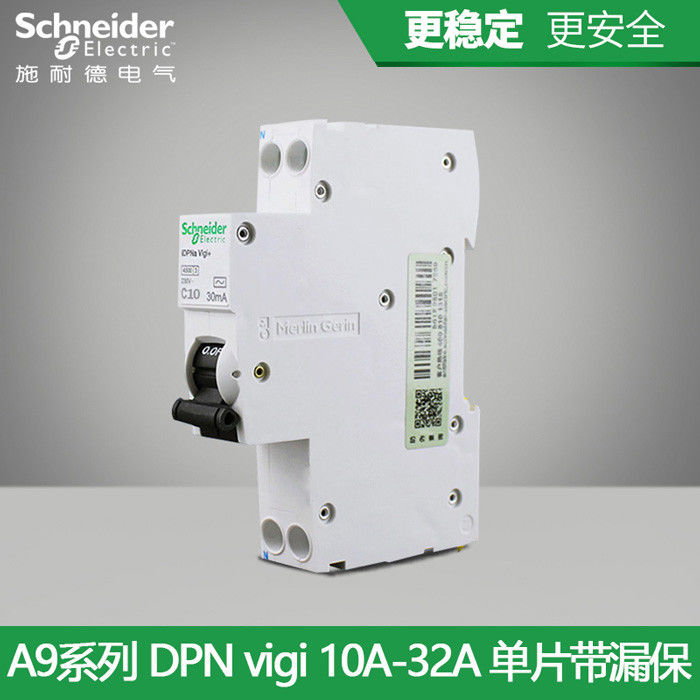

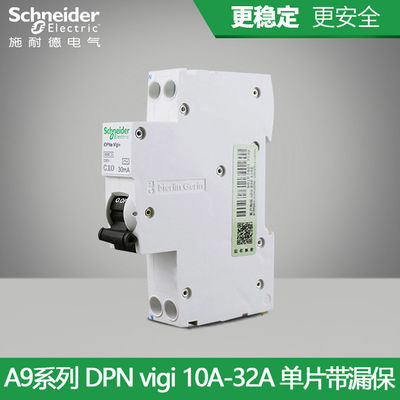

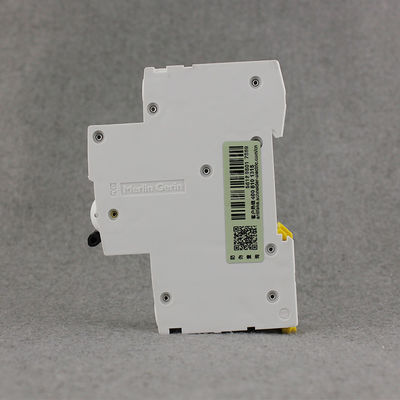

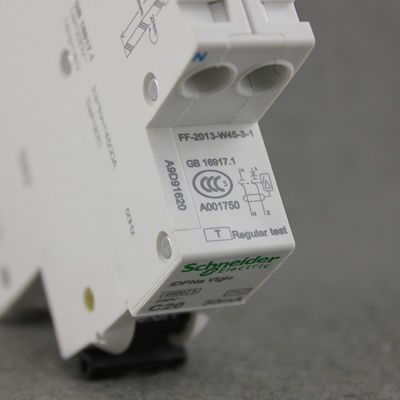

IDPNa Vigi+ Current Operated Circuit Breaker , Residual Circuit Breaker C - Curve 1P+N 230V 16A 4.5kA

Product Details:

Place of Origin:	China
Brand Name:	Schneider Electric
Certification:	CE, CCC etc.
Model Number:	Resi9

Payment & Shipping Terms:

Minimum Order Quantity:	12pcs / 1doz.
Price:	USD4~50/unit
Packaging Details:	standard in carton box
Delivery Time:	2~15days
Payment Terms:	T/T, Western Union
Supply Ability:	100,000 pcs/month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (160)

Ultrafiltration Membrane Modules (72)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (144)

Moon Balloon Light (145)

Tripod LED Balloons (122)

Inflatable Light Tower (76)

Terminal Block Accessories (6)

Detailed Product Description

Model:	Resi9	Pole(s):	1,2,3,4, 1P+N
Volt:	220~240VAC, 380~400VAC	Hz:	50~60Hz
Phase:	1/3	Standard:	EN/IEC61009
Certification:	CCC, CE, GS Etc.	Breaking Capacity:	Ics=Icn=6000A
Thermal Trip Curve:	C,D	Case Material:	Nylon 66 Recylable
Wiring:	Terminal Block, Busbar Duct Etc. IP20B	Electric Shock Protection:	Class II
Mechanical Life:	20,000	Electrical Life:	10,000
Highlight:	industrial type circuit breaker , electric circuit breaker

iDPNa, iDPNN series household circuit breaker

Schneider Electric's first miniature circuit breaker for retail channels

Schneider Electric Original Made In China

characteristic

Current Rating: 6, 10, 16, 20, 25, 32 A
Rated voltage: 230 V AC
Breaking capacity: according to IEC 61009, GB 16917, at 230 V AC
> iDPNa vigi+: 4.5 kA
> iDPNN vigi+: 6 kA
Remaining operating current: 30 mA, AC class, ELE
Tripping characteristics: C type, instantaneous trip range (5~10) In
Mechanical life: 20,000 times
surroundings
> Ambient temperature: -25°C to +55°C
> Storage ambient temperature: -30°C to +70°C
wiring
> Upper: 16 mm2 and below
> lower end: 10 mm2 and below
> Can realize the wiring method of up, down or down
Standards and certifications comply with IEC 61009-1 / GB 16917 and receive CCC certification
Warranty period: 18 months

Advantage

Outstanding, industry-leading

18mm width, which can greatly save distribution box space and cost
iDPNa vigi+ / iDPNN vigi+ can flexibly adopt the wiring method of up, down, and down to meet the special needs of customers.
iDPNa vigi+ / iDPNN vigi+ is highly integrated with circuit breaker and residual current action protection module for easy selection and installation

application

Widely used in terminal distribution systems for residential, commercial and industrial buildings

main information
Circuit breaker application	Distribution protection
Product Series	Acti 9
product type	Residual current action protection circuit breaker
product name	IDPN Vigi+
Product short name	IDPNa Vigi+
Number of poles	1P + N
Neutral position	Left side
Number of protection poles	1
Rated current [In]	16 A on 30 °C
Network Type	AC
Trip curve	C
Residual current sensitivity [IΔn]	30 mA
Selectivity of residual current action protection	Momentary type
Leakage current protection level	AC class
Breaking capacity	4500 A Icn complies with IEC 61009-1
Isolation function	Be applicable

Additional information
Distribution system location	Downstream distribution outlet
Network frequency	50 Hz
Rated working voltage [Ue]	230 V AC 50 Hz
Trip unit type	Thermal magnetic
Magnetic trip limit	5...10 x In
Residual current action function technology	The action function is related to the power supply voltage
Residual breaking and making capacity	4500 A complies with IEC 61009-1
Rated insulation voltage [Ui]	400 V in accordance with IEC 61009-1
Rated impulse withstand voltage [Uimp]	4 kV in accordance with IEC 61009-1
Contact position indication	Have
Control type	handle
Local signal indication	On/off indication
Installation method	DIN rail mounting
Busbar compatibility	Wiring: Compatible
Width (multiple of 9mm)	2
height	96.1 mm
width	18 mm
depth	65.8 mm
product weight	136 kg
Mechanical life	20000 times
Electrical life	10,000 times
Wiring ability	Tunnel terminal (upper wiring) - <= 16 mm2 - Single strand hard wire without twist terminal Tunnel terminal (lower wiring) - <= 10 mm2 - single strand hard wire without twist terminal
Stripping length	Power circuit: 15 mm for upper or lower wiring
Tightening torque	Power circuit: 2.5 Nm wiring Power circuit: 2 Nm wiring

surroundings
Standards compliant	GB 16917.1 IEC 61009-1
certified product	CCC
Moisture resistance	2
Relative humidity	95 % on 55 °C
Operating temperature	-25...55 °C
Storage ambient temperature	-30...70 °C
