Acti9 MCB Miniature Industrial Circuit Breaker 1~63A 1P 2P 3P 4P 1P+N IEC-EN60898
Product Details
| Model: | Acti9 IC65, IDPN | Pole(s): | 1,2,3,4, DPN/1P+N |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=4500/6000A 10kA |
| Thermal Trip Curve: | C,D | Case Material: | PC Thermal Formed |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 20,000 | Electrical Life: | 10,000 |
| Highlight |
industrial type circuit breaker,electric circuit breaker |
||
Product Description

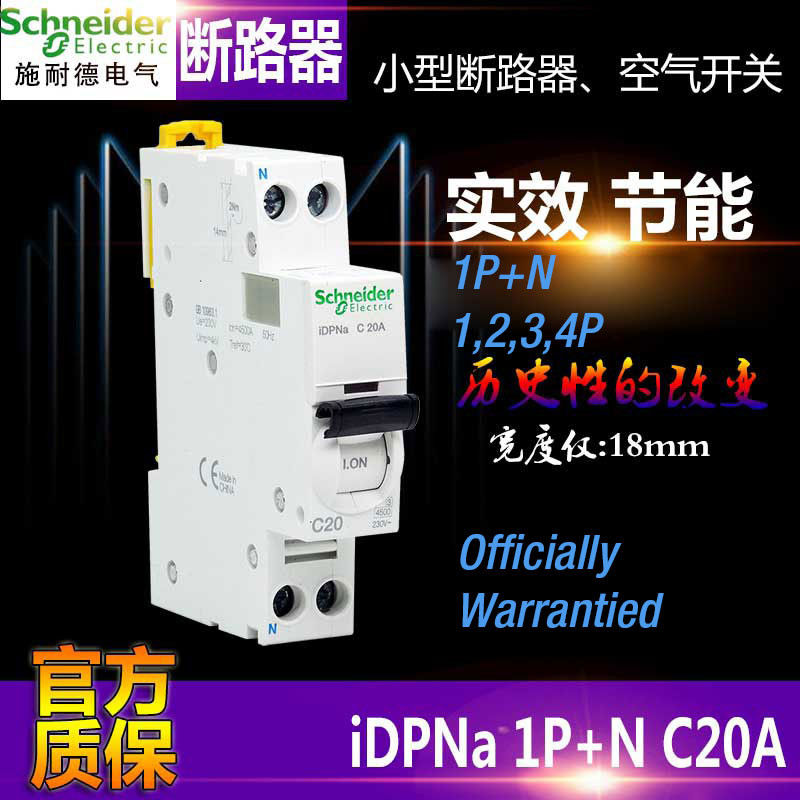

Acti9 MCB Schneider Electric Miniature Circuit Breaker 1~63A, 1P,2P,3P,4P,1P+N in compliance with IEC-EN60898
Acti9 iC65, iDPNa, iDPNN etc.
Schneider Electric Original Made In China
Miniature Circuit Breakers up to 63 A
characteristic
-
Product standard IEC60898-1/GB10963.1
-
Product Certification CCC CE
-
Product pole number 1+N, 1,2,3,4
-
Trip curve C (1P+N), Curve B,C,D (1,2,3,4P)
-
Breaking capacity 4.5/6/10kA
-
Rated current 2~40A
-
Protection class IP20B (terminal), IP40 (installed in the distribution box)
-
Ambient temperature -25 ̊C~+60 ̊C
-
Storage ambient temperature -40 ̊C~+85 ̊C
-
Double lock clip structure
-
Complete electrical accessories for remote indication of breaker status: Break/Close/Fault trip
-
Wiring method of "up and down" or "down and up"
-
Warranty period: 18 months
Advantage
Chuangqi wins and jumps to the top
-
Three-stage current limit
-
Quick closure
-
The green mark on the handle clearly indicates that the contact is in the off position
-
Front window in red indicates breaker tripping
-
The accessories are complete, powerful, and new over-pressure integrated protection accessories have been added;
application
-
It can be widely used in power distribution protection in civil, commercial buildings, and industrial sites.
|
Product Series |
Acti 9 |
|---|---|
|
Product Series |
Acti 9 |
|
product name |
IDPN |
|
product type |
Miniature Circuit Breaker |
|
Product short name |
IDPNN |
|
Number of poles |
1P + N |
|
Applications |
Distribution protection |
|
Number of protection poles |
1 |
|
Neutral position |
Left side |
|
Rated current [In] |
25 A on 30 °C |
|
Network Type |
AC |
|
Trip unit type |
Thermal magnetic |
|
Trip curve |
C |
|
Breaking capacity |
6000 A Icn on 230 V AC 50/60 Hz in accordance with IEC 60898-1 |
|
Use category |
AC class complies with IEC 60947-2 |
|
Isolation function |
Applicable to IEC 60947-2 |
|
Network frequency |
50/60 Hz |
|---|---|
|
Rated working voltage [Ue] |
230 V AC 50/60 Hz |
|
Magnetic trip limit |
5...10 x In |
|
Current limit |
3 in accordance with IEC 60898-1 |
|
Rated insulation voltage [Ui] |
400 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Rated impulse withstand voltage [Uimp] |
4 kV in accordance with IEC 60947-2 |
|
Contact position indication |
Have |
|
Control type |
handle |
|
Local signal indication |
On/off indication |
|
Installation type |
Locking clip locking |
|
Installation method |
DIN rail mounting |
|
Width (multiple of 9mm) |
2 |
|
height |
94 mm |
|
depth |
74 mm |
|
product weight |
122 g |
|
Mechanical life |
20000 times |
|
Electrical life |
10,000 times |
|
Wiring ability |
Wiring or lower wiring on tunnel terminals 1...16 mm2 cord (optional) with or without cord terminal |
|
Stripping length |
Power circuit: 14 mm |
|
Tightening torque |
Power circuit: 2 Nm |
|
Leakage current protection |
(required) additional assembly |
|
Standards compliant |
GB 10963.1 |
|---|---|
|
certified product |
CE |
|
IP protection level |
IP20 complies with IEC 60529 |
|
Pollution level |
2 in accordance with IEC 60947-2 |
|
Moisture resistance |
2 in accordance with IEC 60068-1 |
|
Relative humidity |
95 % on 55 °C |
|
Operating temperature |
-25...60 °C |
|
Storage ambient temperature |
-40...80 °C |
Product Highlights
Acti9 MCB Schneider Electric Miniature Circuit Breaker 1~63A, 1P,2P,3P,4P,1P+N in compliance with IEC-EN60898 Acti9 iC65, iDPNa, iDPNN etc. Schneider Electric Original Made In China Miniature Circuit Breakers up to 63 A characteristic Product standard IEC60898-1/GB10963.1 Product Certification CCC ...
