| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE, CCC etc. |
| Model Number: | FG60 |
| Minimum Order Quantity: | 12pcs / 1doz. |
|---|---|
| Price: | Negotiate |
| Packaging Details: | standard in carton box |
| Delivery Time: | 2~15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200,000 pcs/month |
| Model: | FG60 | Pole(s): | 1,2,3,4, DPN/1P+N |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| Highlight: | C60 3 phase circuit breaker,63A miniature circuit breaker mcb |
||

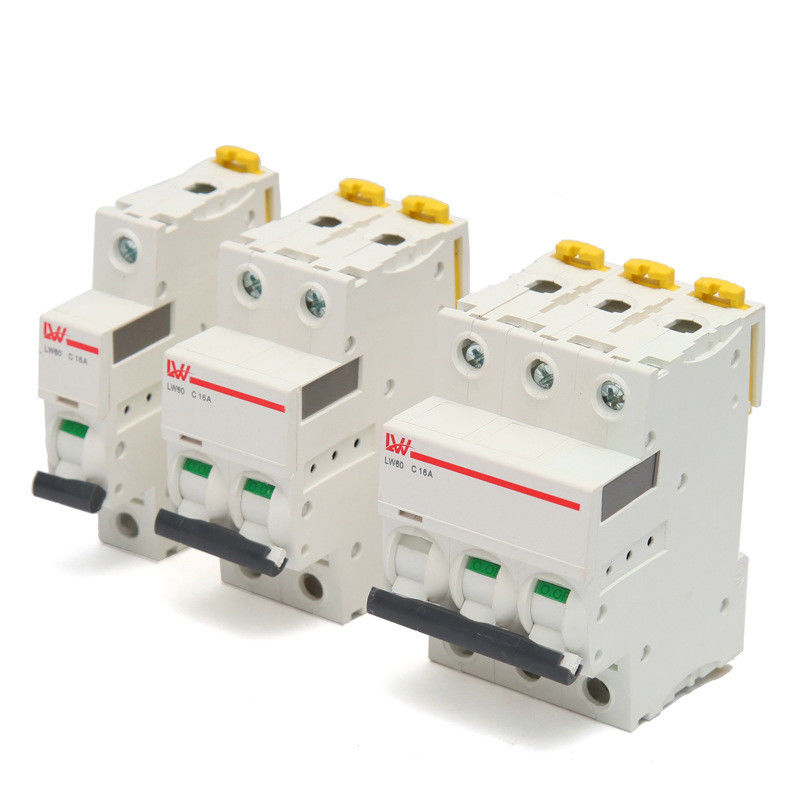

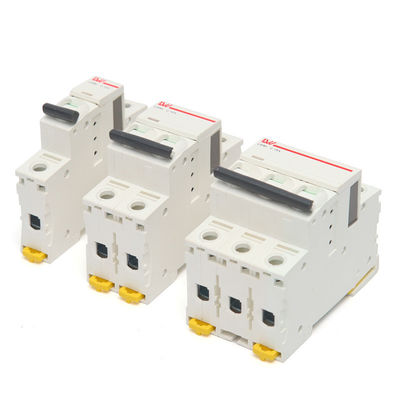

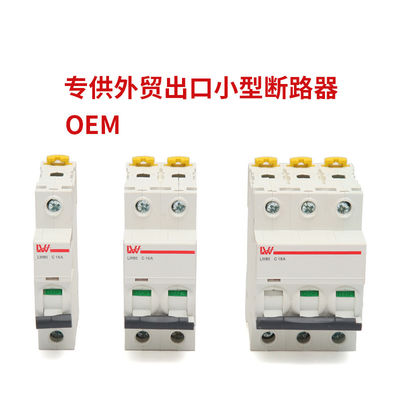

High Quality Ce RoHS CCC Miniature Circuit Breaker (FG-63)
Application
FG60 series Miniature Circuit Breaker is nice in appearance, reasonable in structure, sound in feature and high in breaking capacity. Installed with standard DIN rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 240V/415V, and rated current to 63A as protection against overload and short-circuit. It can be used as infrequent on-and-off operation and changeover.
It complies with standard of GB10963 and IEC/EN60898.
Product Detail
| Sequence NO. |
Release | Test current I/In |
Start state | Tripping time | Expected restlt |
| 1 | B, C, D | 1.13In | Cold state | t≤ 1h | Not tripping |
| 2 | B, C, D | 1.45In | Start right after the serial NO. 1 test |
t< 1h | Tripping |
| 3 | B, C, D | 2.55In | Cold state | 1s< t< 60s | Tripping |
| 4 | B C D |
3In 5In 10In |
Cold state | t≤ 0.1s | Not tripping |
| 5 | B C D |
5In 10In 20In |
Cold state | t< 0.1s | Tripping |
| Frame class | 63A |
| Rated working voltage | 240V/415V |
| Rated frequency | 50/60Hz |
| Rated working current | 1, 3, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Making and breaking capacity | 6000A(6~40A), 4500A(50, 63A) |
| Release type | B, C, D |
| Poles | 1, 2, 3, 4P |
| Mechanical life | 20000 |
| Electric life | 4000 |
