1P 2P 3P 4P Thermal Magnetic Industrial Circuit Breaker 63A 6kA 230V/400V
Product Details
| Model: | FGL-63 | Pole(s): | 1,2,3,4, DPN/1P+N |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| Highlight |
63A thermal magnetic circuit breaker,3P magnetic trip circuit breaker |
||
Product Description

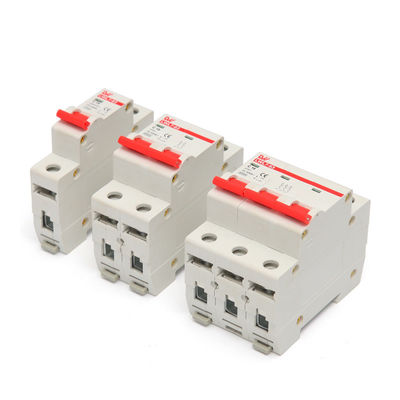

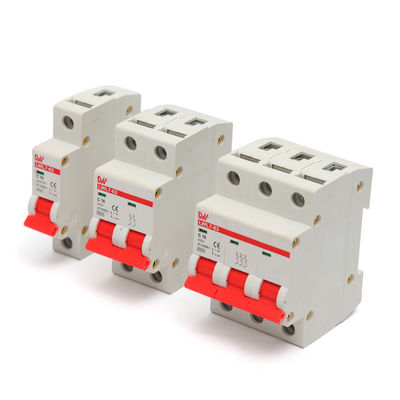

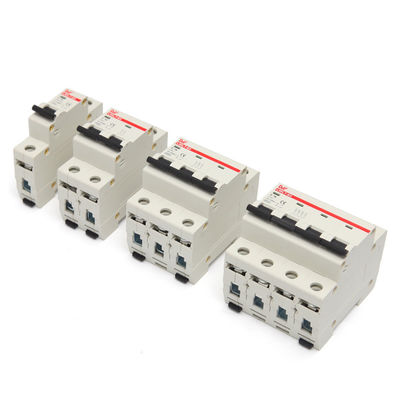

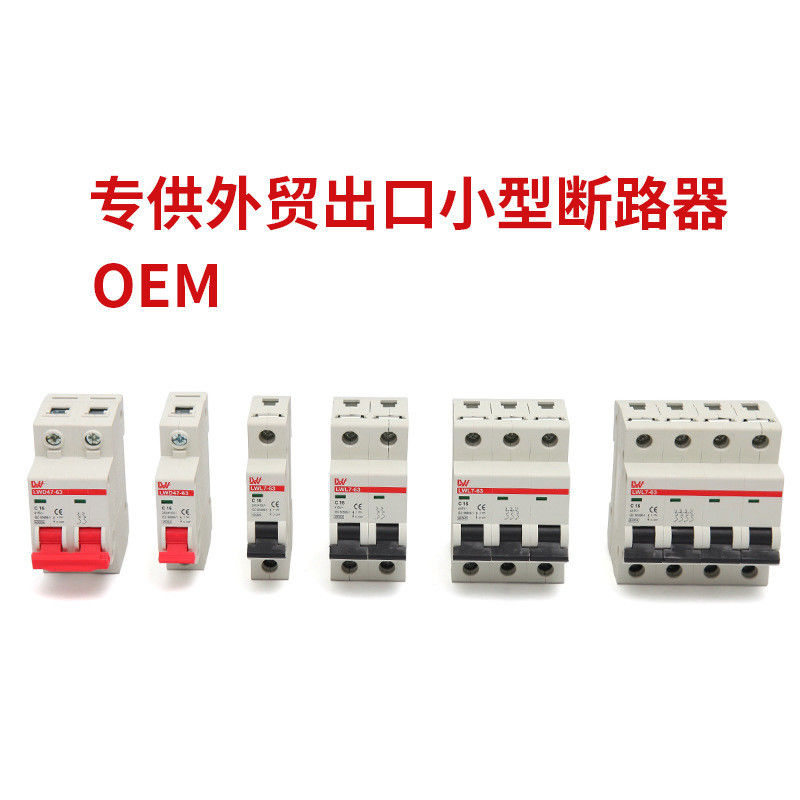

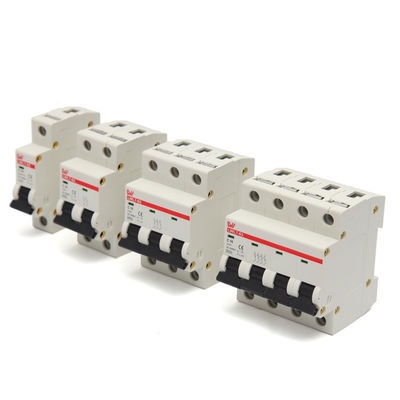

1P 2P 3P 4P thermal magnetic mcb circuit breaker 63A 6kA 230V/400V circuit protection device
FGL7-63 series Miniature Circuit Breaker is nice in appearance, reasonable in structure, sound in feature and high in breaking capacity. Installed with standard DIN rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 240V/415V, and rated current to 63A as protection against overload and short-circuit. It can be used as infrequent on-and-off operation and changeover.
It complies with standard of GB10963 and IEC/EN60898
Product Description
| Model | MINI CIRCUIT BREAKER | ||
| Code | C45 | ||
| Standard | IEC60898-1 | ||
| Electrical features |
Rated current in | A | 1 2 3 4 6 10 16 20 25 32 40 50 63 |
| Poles | 1P,1P+N, 2P, 3P,3P+N, 4P | ||
| Rated voltage Ue | V | 240/415 | |
| Insulation coltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 3000, 4500, 6000 | |
| Rated impulse withstand voltage (1.2/50)Uipm | V | 4000 | |
| Dielectric test voltage at and ind.Freq.for 1min | KV | 2 | |
| Pollution degree | 2 | ||
| Themo-magnetic release characteristic | B(3-5In) ,C(5-10In),D(10-20In) | ||
| Mechanical features |
Electrical life | 4000 | |
| Machanical life | 10000 | ||
| Protection degree | IP 20 | ||
| Reference temperature of setting of thermal element | °C | 30 | |
| Ambient temperature(with daily average≤35°C) | °C | -5~+40 | |
| Storage temperature | °C | -25...+70 | |
| Installation | Terminal connection type | Cable/Pin-type busbar | |
| Terminal size top/bottom for cable | mm² | 25 | |
| Terminal size top/bottom for busbar | mm² | 25 | |
| Tightening torque | N*m | 2.0 | |
| Mounting | 35mm DIN rail | ||
| Connection | From top and bottom | ||
Packing details:
| NAME | SPECIFICATIONS | UNIT | PCS/CARTON | CARTON VOLUME(MM) L*W*H | G.W(KG) | N.W(KG) |
| DZ47-63 | 1P 1-63A 3KA/6KA | PCS | 240 | 423*340*238 | 22.45 | 21.00 |
| DZ47-63 | 2P 1-63A 3KA/6KA | PCS | 180 | 423*340*238 | 22.45 | 21.00 |
| DZ47-63 | 3P 1-63A 3KA/6KA | PCS | 80 | 423*340*238 | 22.45 | 21.00 |
| DZ47-63 | 4P 1-63A 3KA/6KA | PCS | 60 | 423*340*238 | 22.45 | 21.00 |
