| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE, CCC etc. |
| Model Number: | FGID |
| Minimum Order Quantity: | 12pcs / 1doz. |
|---|---|
| Price: | Negotiate |
| Packaging Details: | standard in carton box |
| Delivery Time: | 2~15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200,000 pcs/month |
| Model: | FGID | Pole(s): | 2,4 |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC61008 |
| Certification: | CCC, CE Etc. | Rated Conditinal Short Circuit Capacity: | 6000A |
| Earth Leakage Current: | 30mA, 100mA, 300mA | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| High Light: | 63A rcd power breaker,30mA rccb circuit breaker |
||

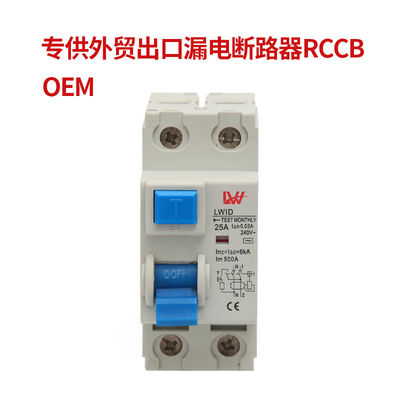

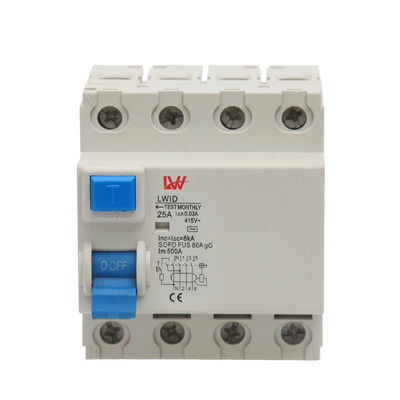

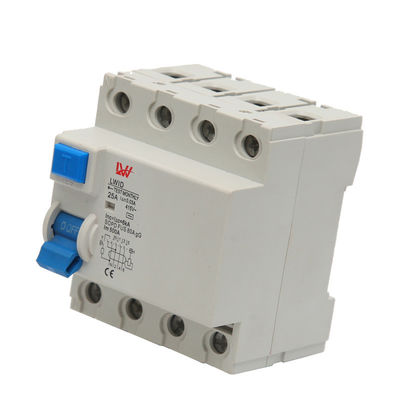

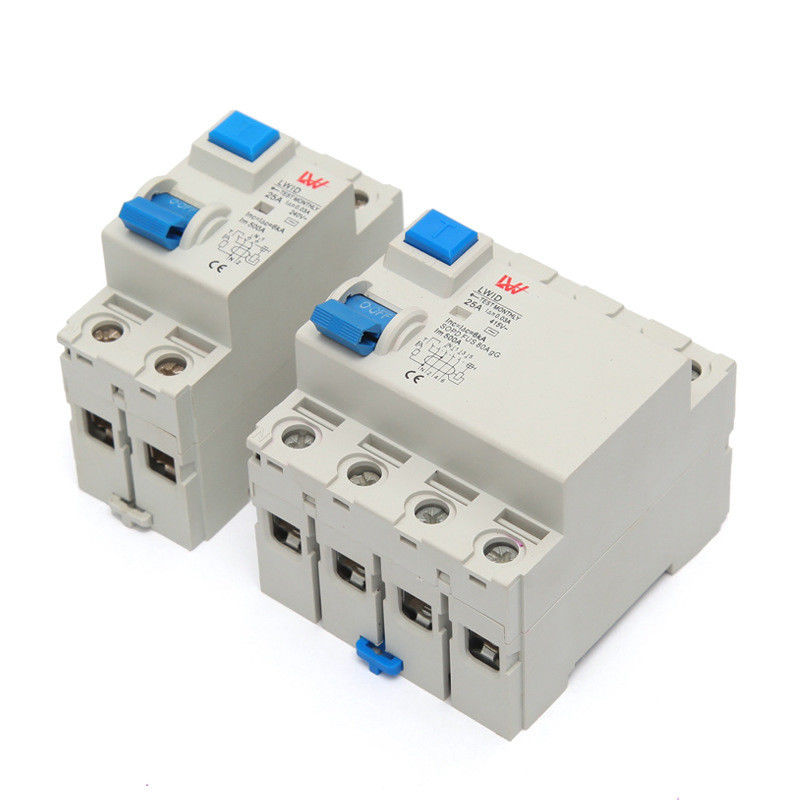

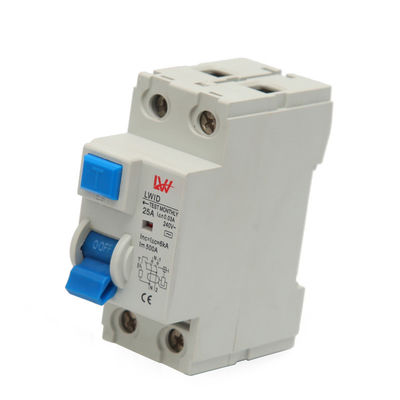

FGID series Residual current circuit breaker(without over-current protection) is suitable for the line of A and S 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A.When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage.It can be used as infrequent changeover of the line in normal situation.It is applicable to industrial site, commercial site, tall building and civil house.
It complies with standard of IEC/EN61008.1 and GB16916.1.Each phase of conductor at the circuit breaker passes through the zero-sequence current transformer, and the secondary side of coil connects with the electromagnetic tripper.Under normal condition, the vector sum of each phase of current passing through zerosequence current transformer is zero.The flux of the zero-sequence current transformer is zero.And the secondary output voltage is zero and the circuit breaker doesn't zero, and the zero-sequence current transformer would produce the magnetic flux, and the secondary side of coil would output the voltage.Once the leak current increases to drive the output voltage at the secondary side to grow to certain level, the electromagnetic release would activate to drive the operation mechanism to act to break the contact that connects the power, finally to realize the leak protection.
| Frame | 63A |
| Rated working voltage | 240/415V |
| Rated frequency | 50/60Hz |
| Rated working current | 16,20,25,32,40,50,63A |
| Rated residual operating current | 0.03,0.1,0.3A |
| Rated residual un-operating current | 0.015,0.05,0.15A |
| Sensibility | A Type,AC Type,S Type |
| Maximum operating time | IΔn t≤0.1s , 5IΔn t≤0.04 |
| Rated making and breaking capacity | In≤50A 500A,In=63A 630A |
| Limiting value of un-operating current | 6In |
| Rated limiting short-circuit current | 6000A |
| Pole number | 2,4P |
| Mechanical life | 10000 |
| Electric life | 4000 |
Residual Current Circuit Breaker
Catalogue Number |
Rated Current (A) |
Number of Pole |
Rating |
Type |
Un(V) |
IΔc(A) |
FGID-63/2P |
16,20,25,32, 40,50,63 |
2P |
10,30, 100,300 |
AC,A |
230VAC |
6000 |
FGID-63/4P |
16,20,25,32, 40,50,63 |
4P |
10,30, 100,300 |
AC,A |
400VAC |
6000 |
