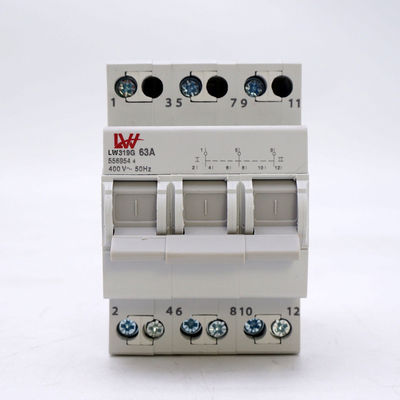

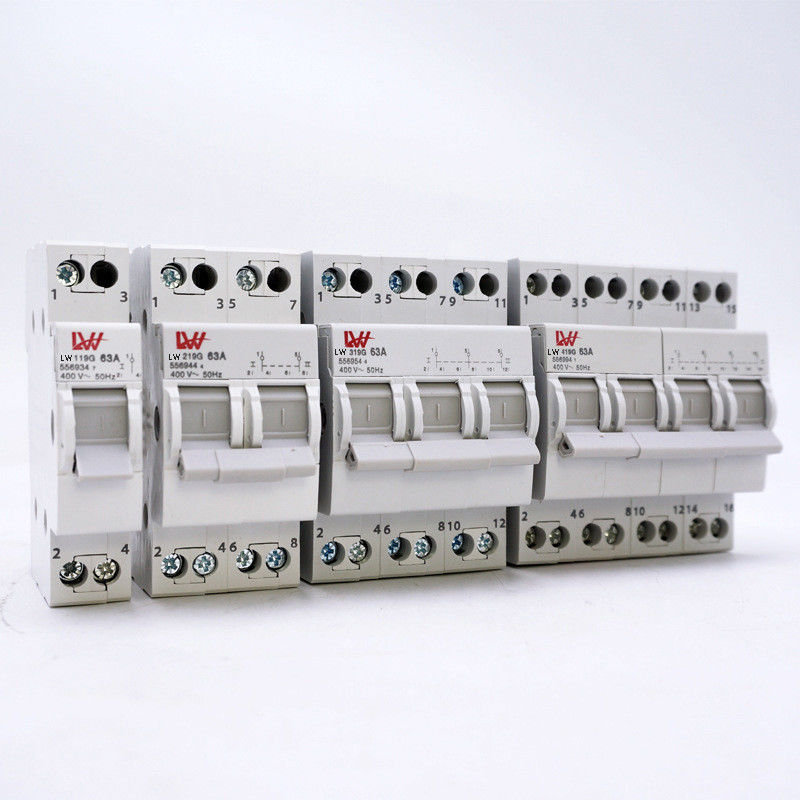

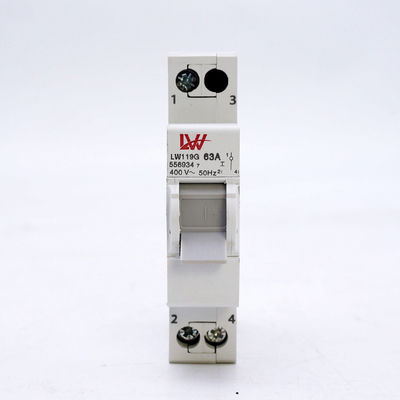

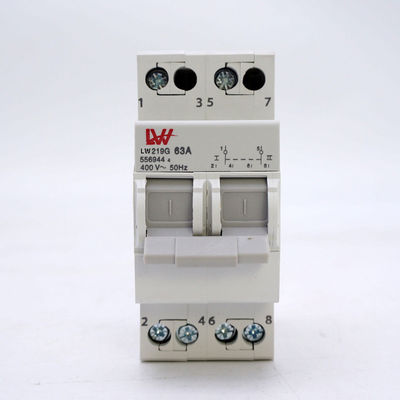

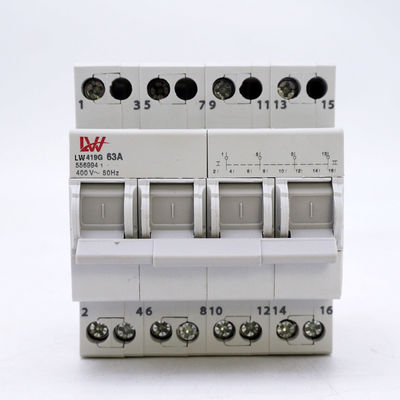

63A 1P 2P 3P 4P 230V 400V Manual Changeover Switch
Product Details
| Model: | FG19G | Pole(s): | 2,4 |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC61008 |
| Certification: | CCC, CE Etc. | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| Highlight |
63A manual phase changer switch,400V sircover changeover switch |
||
Product Description
Manual Changeover Switch 63A 1P 2P 3P 4P 230/400V China Made DIN Mounted
CHANGEOVER SWITCH 2 POLE 63 AMP 240V 50HZ DIN MOUNTED
Changeover switch.
What is a change over switch? A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))
Technical Properties
- Rated current 63 A
- Rated operational AC voltage 400 V
- Frequency 50/60 Hz
- type of connection with screw
- Connection cross-sect. rigid cable 25mm²
- Connection cross-sect. flexible cable 16mm²
- Number of mechanical operations 100000
- Electrical durability at nominal load in AC21in
- operating cycles 5000
- Operating temperature -20 to 50 °C
- Storage temperature -40 to 80 °C
- Protection index IP 20
- Number of modules 4
| Frame | 63A |
| Rated working voltage | 240/415V |
| Rated frequency | 50/60Hz |
| Rated working current | 16,20,25,32,40,50,63A |
| Rated residual operating current | 0.03,0.1,0.3A |
| Rated residual un-operating current | 0.015,0.05,0.15A |
| Sensibility | A Type,AC Type,S Type |
| Maximum operating time | IΔn t≤0.1s , 5IΔn t≤0.04 |
| Rated making and breaking capacity | In≤50A 500A,In=63A 630A |
| Limiting value of un-operating current | 6In |
| Rated limiting short-circuit current | 6000A |
| Pole number | 2,4P |
| Mechanical life | 10000 |
| Electric life | 4000 |
Residual Current Circuit Breaker
Catalogue Number |
Rated Current (A) |
Number of Pole |
Rating |
Type |
Un(V) |
IΔc(A) |
FGID-63/2P |
16,20,25,32, 40,50,63 |
2P |
10,30, 100,300 |
AC,A |
230VAC |
6000 |
FGID-63/4P |
16,20,25,32, 40,50,63 |
4P |
10,30, 100,300 |
AC,A |
400VAC |
6000 |
