Hot Water Sanitizable Electrodeionization (EDI) Stacks E-CellMK-3PharmHT
Product Details
| Resistivity: | ≥ 16 MOhm-cm | Sodium: | ≤ 3 Ppb |
|---|---|---|---|
| Silica (SiO2): | As Low As 5 Ppb | Boron: | As Low As 0.08 Ppb |
| Voltage: | 0–300 VDC | Amperage: | 0–5.2 ADC |
| Highlight |
edi module water treatment,electrodeionization module,water treatment edi modules |
||
Product Description

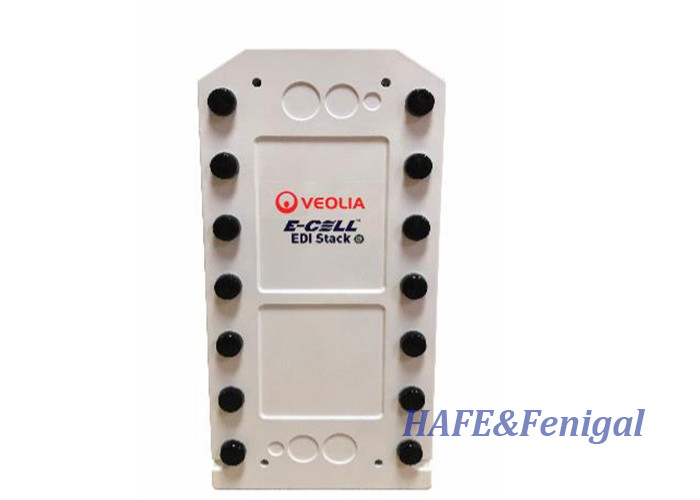

Hot Water Sanitizable Electrodeionization (EDI) Stacks E-CellMK-3PharmHT
General Description
As part of the E-Cell* electrodeionization product line,the E-Cell MK-3PharmHT Stack is designed to:
• Use electrical current to provide ultrapure water for the pharmaceutical and biotechnology industries.
• Be hot water sanitizable up to 185ºF (85ºC) for 160 cycles.
• Deliver premium performance including both the highest levels of product water quality and the lowest energy consumption.
• Minimize cleaning requirements at higher feed water hardness levels using counter-current operation.
• Be leak free, guaranteed with standard 3-year prorated warranty.
• Operate continuously and require no caustic or acid for regeneration of ion exchange resin within the stack.
• Require no brine injection or concentrate recirculation.
Typical Applications
The product water from the E-Cell MK-3PharmHT can be relied upon to exceed USP, EP and other pharmacopeia required quality levels in applications
such as:
• Water for injection
• Pharmaceutical purified water
• Laboratory purified water systems
For ease of design and additional confidence in your EDI application, E-Cell performance projections and guarantees are available in the Winflows* software or by contacting Veolia
Quality Assurance
• CE, RoHS, CSA and EAC marked
• Materials in contact with fluids processed by the E-Cell MK-3PharmHT stack meet FDA requirements
• Certified with UKCA
• Manufactured in an ISO 9001 and ISO 14001facility
• E-Cell MK-3PharmHT Stacks are Halal certified by the Islamic Food and Nutrition Council of America (IFANCA®)
| MK-3PharmHT Stack Specifications | |
| Nominal Flow | 3.4 m3/h (15 gpm) |
| Flow Rate Range | 1.6–5.4 m3/h (7.0–23.8 gpm) |
| Shipping Weight | 100 kg (220 lbs) |
|
Dimensions (width x height x depth) |
30 cm x 61 cm x 54 cm 12’’ x 24” x 22” |
| Product Water Quality Note 1 | |
| Guarantees Available | |
| Resistivity | ≥ 10 MOhm-cm |
| Typical Removal Efficiencies | |
| Sodium | ≥ 99.9% removal |
| Silica (SiO2) | Up to 99% removal |
| Operating Parameters | |
| Recovery | Up to 96% |
| Voltage | 0–300 VDC |
| Amperage | 0–5.2 ADC |
| Inlet Pressure Note 2 | ≤ 6.9 bar (100 psi) |
| Pressure Drop Note 3 | 1.4–2.8 bar 20–40 psi |
| Hot Water Sanitization Cycles | 160 |
| Maximum Sanitization Temperature | 85ºC (185ºF) |
| Maximum Sanitization Inlet Pressure | 2.1 bar (30 psi) |
| Feed Water Specifications Note 4 | |
| Total Exchangeable Anions (TEA as CaCO3) Note 5 | ≤ 63.6 ppm |
| Conductivity Equivalent | ≤ 109 μS/cm |
| Temperature | 4.4–40˚C (40–104˚F) |
| Total Hardness (as CaCO3) Note 6 | ≤ 1.0 ppm |
| Silica (SiO2) Note 7 | ≤ 1.0 ppm |
| Total Organic Carbon (TOC as C) | ≤ 0.5 ppm |
| Total Chlorine | ≤ 0.05 ppm |
| Fe, Mn, H2S | ≤ 0.01 ppm |
| Boron Note 8 | ≤ 1.0 ppm |
| pH | 4 to 11 |
| Oil & Grease | None detectable |
| Particulate Note 9 | RO permeate |
| Oxidizing Agents | None detectable |
| Color Note 10 | ≤ 5 APHA |
