Hot Water Sanitizable E-Cell For Pharmaceutical Applications E-Cell* MK-3PharmHT Stack

Product Details:

Place of Origin:	China
Brand Name:	VEOLIA
Certification:	CE
Model Number:	E-Cell-3X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	standard export packing
Delivery Time:	5- 8 work days
Supply Ability:	60000 Unit/Units per Month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (132)

Ultrafiltration Membrane Modules (52)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (123)

Moon Balloon Light (131)

Tripod LED Balloons (71)

Inflatable Light Tower (56)

Terminal Block Accessories (6)

Detailed Product Description

Resistivity:	≥ 16 MOhm-cm	Sodium:	≤ 3 Ppb
Silica (SiO2):	As Low As 5 Ppb	Boron:	As Low As 0.08 Ppb
Voltage:	0–300 VDC	Amperage:	0–5.2 ADC
Highlight:	Pharmaceutical Applications E-Cell , Hot Water Sanitizable E-Cell , MK-3PharmHT Stack E-Cell

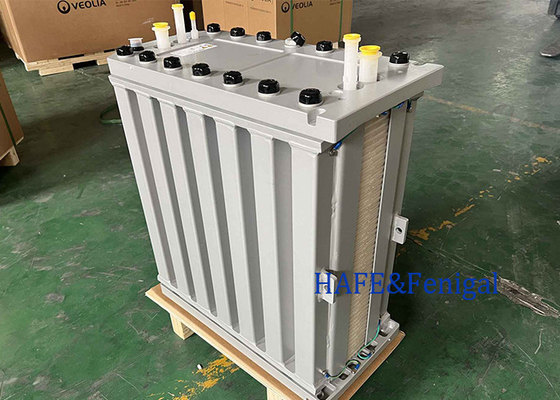

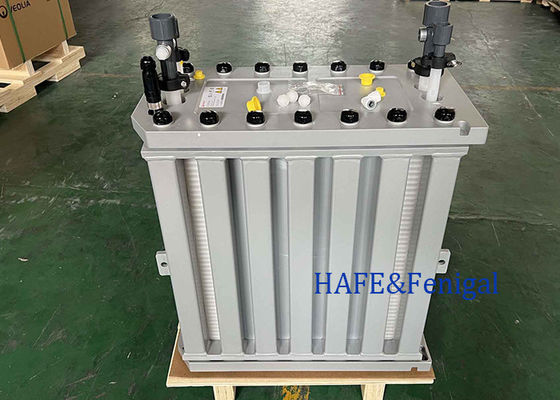

Hot Water Sanitizable E-Cell for Pharmaceutical Applications E-Cell* MK-3PharmHT Stack

E-Cell MK-3PharmHT is the only pharmaceutical electrodeionization (EDI) stack designed to:

• Provide ultrapure water for pharmaceutical applications

• Hot Water Sanitizable up to 185ºF (85ºC) for 160 cycles

• Operate with no concentrate recirculation and no brine injection

• Require no stack bolt tightening

• Be leak free, guaranteed

• Operate at low power, <300VDC

Description and Use

E-Cell MK-3PharmHT Stacks are hot water sanitizable EDI stacks, which use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water quality for the system is at greater than USP quality levels required in today’s pharmaceutical applications.

Typical Application

• Pharmaceutical

• Laboratory

Quality Assurance

• CE, UL & CSA marked

• Manufactured in a ISO 9001:2000 facility

MK-3PharmHT Stack Specifications
Nominal flow	4.1 m3/h	18.0 gpm
Flow rate range	1.6 to 4.6 m3/h	7.0 to 20.0 gpm
Shipping weights	92 kg	202 lbs
Dimension (width x height x depth)	30cm x 61cm x 48cm	12” x 24” x 19”

Typical Performance
Product Quality
Resistivity	≥ 10 MOhm-cm
TOC (as C)	< 500 ppb
Hot Water Sanitization
No. of 1hr sanitization cycles	160 cycles
Sanitization temperature	176 to 185ºF	80 to 85ºC
Max. sanitization inlet pressure	2.1 bar	30 psi
Operating Parameters
Recovery	Up to 95%
Concentrate flow	Counter current - Standard Co-current – <0.1ppm (as CaCO3) feed hardness
Voltage	0 to 300 VDC
Amperage	0 to 5.2 ADC
Inlet Pressure (Counter current) (Co-current)	4.1 to 6.2 bar 3.1 to 6.2 ba	60 to 90 psi 45 to 90 psi
Pressure drop at nominal flow	1.4 to 2.4 bar	20 to 35 psi

Maximum Feedwater Specifications
Feedwater - Total Exchangeable Anions (TEA as CaCO3)	<25 mg/l	<25 ppm
Feedwater – Conductivity, NaHCO3 equivalent	< 43 µS/cm	< 43 µS/cm
Temperature	4.4 to 40ºC	40 to 104ºF
Total hardness (as CaCO3)	< 1.0 mg/l	< 1.0 ppm
Silica (SiO2)	< 1.0 mg/l	< 1.0 ppm
Total Organic Carbon, TOC as C	< 0.5 mg/l	< 0.5 ppm
Total Chlorine	< 0.5 mg/l	< 0.05 ppm

Hot Water Sanitizable E-Cell For Pharmaceutical Applications E-Cell* MK-3PharmHT Stack 0
