Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack

Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack

  • Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack
  • Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack
  • Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack
Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack
Product Details:
Place of Origin: China
Brand Name: VEOLIA
Certification: CE
Model Number: MK-3MiniHT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Supply Ability: 60000 Unit/Units per Month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (132)
Ultrafiltration Membrane Modules (52)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (123)
Moon Balloon Light (131)
Tripod LED Balloons (71)
Inflatable Light Tower (56)
Terminal Block Accessories (6)
Detailed Product Description
Resistivity: ≥ 16 MOhm-cm Sodium: ≤ 3 Ppb
Silica (SiO2): As Low As 5 Ppb Boron: As Low As 0.08 Ppb
Voltage: 0–150 VDC Amperage: 0–5.2 ADC
Highlight:

Pharmaceutical Applications E-Cell

,

Hot Water Sanitizable E-Cell

,

Lab E-Cell

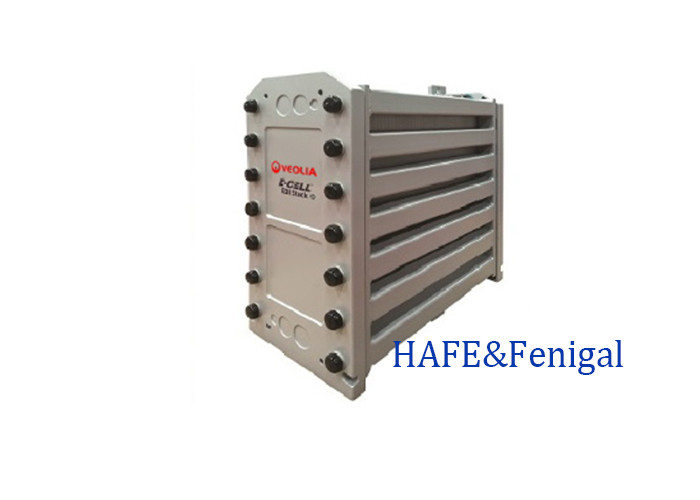

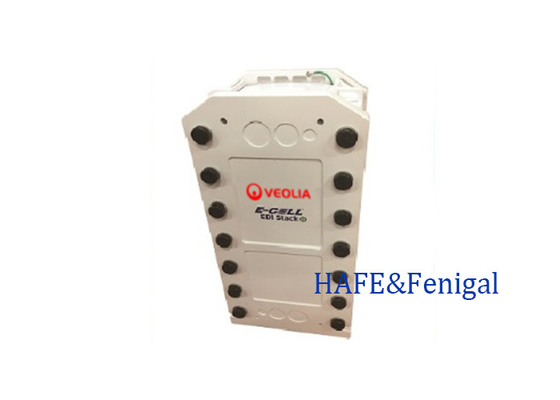

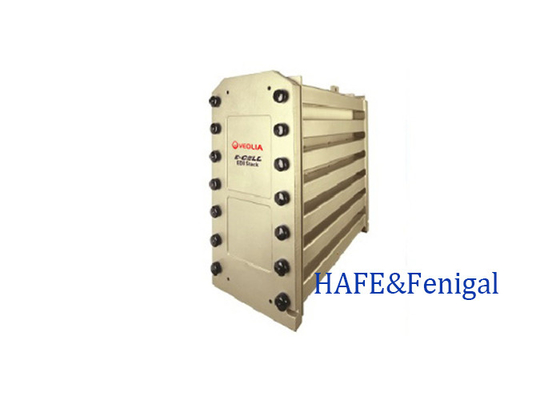

Hot Water Sanitizable E-Cell for Lab & Pharmaceutical Applications E-Cell* MK-3MiniHT Stack


E-Cell MK-3MiniHT is the only lab & pharmaceutical electrodeionization (EDI) stack designed to:

• Provide ultrapure water for pharmaceutical applications.

• Hot water sanitizable up to 185ºF (85ºC) for 160 cycles.

• Operate with no concentrate recirculation and no brine injection.

• Require no stack bolt tightening.E-Cell* EDI MK-3MiniHT Stack

• Be leak free, guaranteed.

• Operate with low power, <150VDC.



Description and Use

E-Cell MK-3MiniHT stacks are hot water sanitizable EDI stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water for the MK-3MiniHT is at greater than USP quality levels required in today’s Pharmaceutical applications.



Typical Application

• Pharmaceutical

• Laboratory



Quality Assurance

• CE, UL & CSA marked

• Manufactured in a ISO 9001:2000 facility

Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack 0

Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack 1

Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack 2



MK-3MiniHT Stack Specifications
Nominal flow 1.14 m3/h 5.0 gpm
Flow rate range 0.5 to 1.52 m3/h 2.2 to 6.7 gpm
Shipping weights49 kg 07 lbs

Dimension (width x height x depth)

30cm x 61cm x 28cm

12” x 24” x 11”



Typical Performance
Product Quality
Resistivity > 10 MOhm-cm
TOC (as C) < 500 ppb
Hot Water Sanitization
No. of 1hr sanitization cycles 160 cycles
Sanitization temperature176 to 185ºF80 to 85ºC
Max. sanitization inlet pressure2.1 bar 30 psi
Operating Parameters
Recovery Up to 93%
Concentrate flowCounter current - Standard Co-current – <0.1ppm (as CaCO3) feed hardness
Voltage0 to 150 VDC
Amperage0 to 5.2 ADC
Inlet Pressure (Counter current) (Co-current)4.1 to 6.2 bar 3.1 to 6.2 ba60 to 90 psi 45 to 90 psi
Pressure drop at nominal flow1.4 to 2.4 bar20 to 35 psi



Maximum Feedwater Specifications
Feedwater - Total Exchangeable Anions (TEA as CaCO3)<25 mg/l<25 ppm
Feedwater – Conductivity, NaHCO3 equivalent< 43 µS/cm< 43 µS/cm
Temperature4.4 to 40ºC40 to 104ºF
Total hardness (as CaCO3)< 1.0 mg/l< 1.0 ppm
Silica (SiO2)< 1.0 mg/l< 1.0 ppm
Total Organic Carbon, TOC as C< 0.5 mg/l< 0.5 ppm
Total Chlorine< 0.5 mg/l< 0.05 ppm






Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack 3Hot Water Sanitizable E-Cell For Lab & Pharmaceutical ApplicationsE-Cell* MK-3MiniHT Stack 4
