Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection

Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection

  • Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection
  • Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection
  • Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection
  • Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection
Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection
Product Details:
Place of Origin: China
Brand Name: Suez
Certification: CE
Model Number: MK-3PharmHT
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: Western Union, T/T
Supply Ability: 60000 Unit/Units per Month
Contact Now
Detailed Product Description
Gas: Filled By Helium Compatible Wire Size: 12-14 AWG
Flow Rate Range: 4.2 – 7.8 M3 /h (18 – 34 Gpm) Recovery: Up To 97%
Data Format: Supports Various Data Formats Such As EDIFACT, ANSI X12, Etc. Data Format Support: Flat Files, CSV, XML, EDI
Remote Mode: DMX512, 2.4GHz Remote Controller, APP Scene: Indoor Or Outdoor
Resistivity: ≥ 16 MOhm-cm Outside Dimension: 33x39x15cm
Shape: Round Or Square Sodium: <3 Ppb
Application: Indoor/Outdoor Oem: OEM
Data Transmission: Enables Secure And Efficient Transmission Of Data
High Light:

Suez EDI E-Cell Stack

,

MK-3PharmHT EDI E-Cell Stack

E-Cell MK-3PharmHT is the sole pharmaceutical electrodeionization (EDI) stack designed to:

• Offer ultrapure water for pharmaceutical uses.

• Be hot water sanitizable up to 185ºF (85ºC) for 160 cycles.

• Operate without Concentrate re-circulation and without brine injection.

• Not require stack bolt tightening.

• Be leak-free, guaranteed.

• Operate at low power, <300VDC.

Description and Use:

E-Cell MK-3PharmHT Stacks are hot water sanitizable EDI stacks that utilize electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water quality of the MK-3PharmHT exceeds the USP quality levels necessary in contemporary pharmaceutical applications.

Typical Applications:

• Pharmaceutical

• Laboratory

SPECIFICATIONS

Manufacturer Suez
Series E-Cell Stack
Model Number MK-3PharmHT
Part Number E-Cell Stack
Description Nominal Flow: 18 gpm
Flow Rate Range: 7 - 20 gpm
Shipping Weight 202 lbs (92 kg)
Key Features Typical Performance -Product Quality
Resistivity: >10 MOhm-cm
TOC: < 500 ppb
Hot Water Sanitization -
No. of 1hr sanitization cycles: 160 cycles
Sanitization temperature: 176 to 185ºF - 80 to 85ºC
Max. sanitization inlet pressure: 2.1 bar / 30 psi
Operating Parameters -
Recovery: Up to 96%
Concentrate flow Counter current - Standard Co-current – <0.1 ppm (as CaCO3) feed hardness
Voltage: 0 to 300 VDC
Amperage: 0 to 5.2 ADC
Inlet Pressure: Counter current- 4.1 to 6.2 bar Co-current- 3.1 to 6.2 bar 60 to 90 psi 45 to 90 psi
Pressure drop at nominal flow: 1.4 to 2.4 bar - 20 to 35 psi
Overall Length 19" (48 cm)
Overall Width 12" (30 cm)
Overall Height 24" (61 cm)

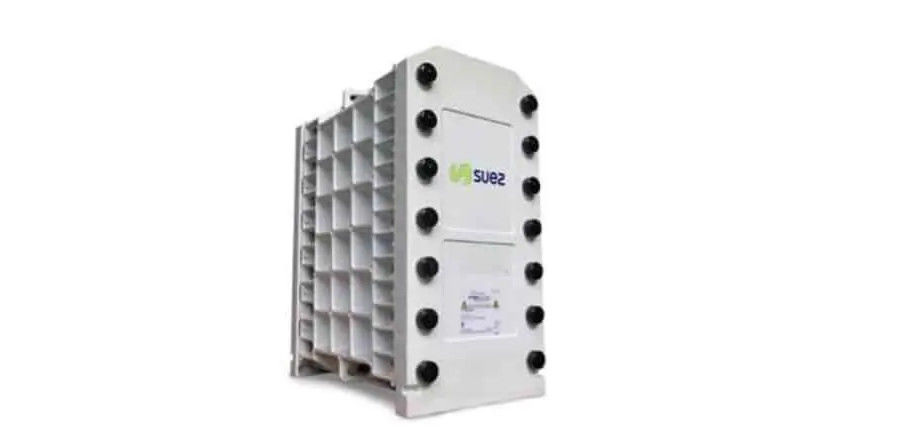

The following figure shows GE, Suez and Veolia from left to right (all the same product: Veolia EDI Module)


Typical Applications

The E-Cell MK-3PharmHT Stack produces ultrapure water that consistently surpasses the quality standards set by USP, EP, and other pharmacopeias in a range of applications. Its trusted usage includes:

* Producing water for injection purposes.

* Supplying pharmaceutical-grade purified water.

* Serving as a source for laboratory-grade purified water systems.

To simplify the design process and further enhance confidence in your EDI application, Veolia offers performance projections and guarantees for the E-Cell MK-3PharmHT through the Winflows* software or by direct contact.

Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection 1

Quality Assurance

The E-Cell MK-3PharmHT Stack assures exceptional quality with multiple certifications and compliances:

* CE, RoHS, CSA, and EAC markings for safety and environmental compliance.

* All materials in contact with fluids processed by the stack adhere to FDA regulations, ensuring safety for pharmaceutical and biotechnology applications.

* UKCA certification for conformity with British standards.

* Manufactured in an ISO 9001 and ISO 14001 facility, guaranteeing high-quality production processes and environmental sustainability.

* Halal certification by the Islamic Food and Nutrition Council of America (IFANCA®), ensuring compliance with Islamic dietary laws.

These assurances provide peace of mind in adopting the E-Cell MK-3PharmHT Stack for your ultrapure water needs.

Suez EDI E-Cell Stack Model MK-3PharmHT Ultrapure Water For Injection 2

MK-3PharmHT Stack Specifications
Nominal Flow 3.4 m3/h (15 gpm)
Flow Rate Range 1.6–5.4 m3/h (7.0–23.8 gpm)
Shipping Weight 100 kg (220 lbs)

Dimensions

(width x height x depth)

30 cm x 61 cm x 54 cm

12’’ x 24” x 22”

Product Water Quality Note 1
Guarantees Available
Resistivity 10 MOhm-cm
Typical Removal Efficiencies
Sodium 99.9% removal
Silica (SiO2) Up to 99% removal
Operating Parameters
Recovery Up to 96%
Voltage 0–300 VDC
Amperage 0–5.2 ADC
Inlet Pressure Note 2 6.9 bar (100 psi)
Pressure Drop Note 3 1.4–2.8 bar 20–40 psi
Hot Water Sanitization Cycles 160
Maximum Sanitization Temperature 85ºC (185ºF)
Maximum Sanitization Inlet Pressure 2.1 bar (30 psi)
Feed Water Specifications Note 4

Total Exchangeable Anions

(TEA as CaCO3) Note 5



63.6 ppm

Conductivity Equivalent 109 μS/cm
Temperature 4.4–40˚C (40–104˚F)
Total Hardness (as CaCO3) Note 6 1.0 ppm
Silica (SiO2) Note 7 1.0 ppm
Total Organic Carbon (TOC as C) 0.5 ppm
Total Chlorine 0.05 ppm
Fe, Mn, H2S 0.01 ppm
Boron Note 8 1.0 ppm
pH 4 to 11
Oil & Grease None detectable
Particulate Note 9 RO permeate
Oxidizing Agents None detectable
Color Note 10 5 APHA

Notes on Operating and Using the E-Cell MK-3PharmHT Stack:

1. Performance Variations: Actual performance may deviate based on specific site conditions. Use the Winflows projection software to assess the expected water quality, resistivity, sodium, and silica performance guarantees tailored to your design conditions. For boron or additional guarantees, please contact Veolia.

2. Inlet Pressure Determination: Inlet pressure is influenced by the downstream pressure requirements for the product and concentrate streams, the choice of counter-current or co-current operation, and the pressure drop across the stack.

3. Nominal Conditions: All specifications are given at nominal flow rates and 25°C. Refer to the Winflows projection software for design-specific verification.

4. Feed Water Specifications: Verify the feed water specifications for your design conditions using the Winflows projection software and the E-Cell Stack Owner’s Manual.

5. TEA (Total Exchangeable Anion): TEA represents the collective concentration of all anions present in the feed water, including contributions from OH-, CO2, and SiO2. It's essential to use Winflows to ensure the feed water TEA is acceptable under the specific operating conditions of the application. The tabulated value is provided at minimum flow and maximum temperature.

6. Feed Water Hardness Limits: The 1.0 ppm as CaCO3 feed water hardness limit applies specifically to standard counter-current flow operation. When operating in co-current flow, the allowable feed water hardness decreases to 0.1 ppm as CaCO3.

7. Silica Limit Considerations: The permissible silica limit decreases as flow exceeds nominal values. Additionally, if the feedwater hardness exceeds 0.5 ppm as CaCO3, the allowable silica limit decreases to 0.5 ppm.

8. Boron Feed Level: The boron feed level must not exceed 0.3 ppm as B whenever there is a silica guarantee requirement or a resistivity guarantee requirement above 10 MOhm-cm. Higher boron levels can compromise performance. In the absence of these requirements, the limit is 1.0 ppm boron.

9. Reverse Osmosis or Equivalent Feed Water: RO is recommended as it provides EDI feed water that is largely free of particulate matter, colloidal material, and high molecular weight organic substances that can foul ion exchange media. This is crucial as EDI stacks cannot be backwashed/fluidized to remove particulate matter. Systems with an open configuration between RO (or another source) and the E-Cell must include filters upstream of the E-Cell to protect against particulate contamination. Typically, a 5 µm absolute or 1 µm nominal filter is suitable.

10. APHA Color Standard: APHA refers to the color standard/scale named for the American Public Health Association and is defined by ASTM D1209.

Please refer to the Winflows projection software and other relevant documentation for detailed and specific information regarding the operation and maintenance of the E-Cell MK-3PharmHT Stack.

For more models, please click: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html

E-Cell EDI Technology Performance Examples


E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.


For application cases, please click:https://www.fgwater.com/Industries/
