GE MK3PHARMHT-EDI CELL Input Power 300w Constant Demineralized Water 2.1 Bar

MK3pharmHT - EDI cell

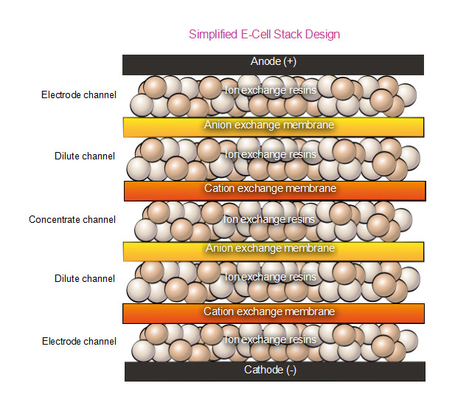

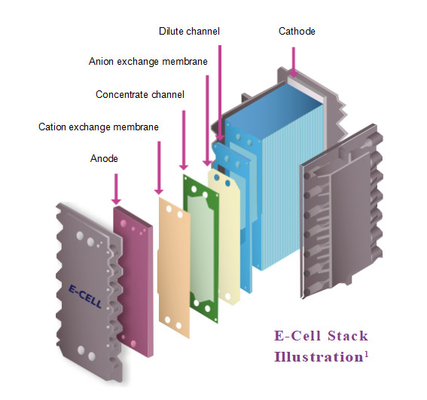

The MK-3pharmHT module is an EDI cell capable of generating demineralized water at an extremely high level of purity for pharmaceutical applications. The ions are eliminated through an ion-exchange resin, which is regenerated continuously by electric current. Therefore, process interruptions and regenerating chemicals are not required to restore its functionality.

In addition, the module can undergo heat sanitization (160 cycles at T < 85 ºC - P < 2.1 bar). In this manner, it is possible to optimize the quality of the produced water also from a microbiological perspective.

Technical data:

Performance:

The water supplied must meet the following requirements:

* TEA represents the total anionic load, thus including CO2

In any event, the module must be safeguarded against components that might harm the resin or the membranes. The module must also be protected from excess pressure and water-hammer phenomena.

Note: The feed to the module must be reverse-osmosis permeate or water presenting equivalent characteristics. In any case, the parameters indicated above are to be regarded as maximum values for each individual contaminant, and the quality of the inlet water compatible with a specific application must be determined on a case-by-case basis.

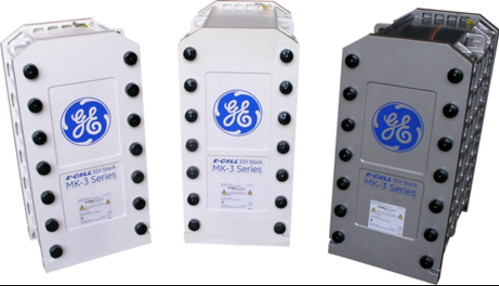

The following figure shows GE, Suez and Veolia from left to right (all the same product: Veolia EDI Module)

Typical Applications

The E-Cell MK-3PharmHT Stack produces ultrapure water that consistently surpasses the quality standards set by USP, EP, and other pharmacopeias in a range of applications. Its trusted usage includes:

* Producing water for injection purposes.

* Supplying pharmaceutical-grade purified water.

* Serving as a source for laboratory-grade purified water systems.

To simplify the design process and further enhance confidence in your EDI application, Veolia offers performance projections and guarantees for the E-Cell MK-3PharmHT through the Winflows* software or by direct contact.

Quality Assurance

The E-Cell MK-3PharmHT Stack assures exceptional quality with multiple certifications and compliances:

* CE, RoHS, CSA, and EAC markings for safety and environmental compliance.

* All materials in contact with fluids processed by the stack adhere to FDA regulations, ensuring safety for pharmaceutical and biotechnology applications.

* UKCA certification for conformity with British standards.

* Manufactured in an ISO 9001 and ISO 14001 facility, guaranteeing high-quality production processes and environmental sustainability.

* Halal certification by the Islamic Food and Nutrition Council of America (IFANCA®), ensuring compliance with Islamic dietary laws.

These assurances provide peace of mind in adopting the E-Cell MK-3PharmHT Stack for your ultrapure water needs.

Notes on Operating and Using the E-Cell MK-3PharmHT Stack:

1. Performance Variations: Actual performance may deviate based on specific site conditions. Use the Winflows projection software to assess the expected water quality, resistivity, sodium, and silica performance guarantees tailored to your design conditions. For boron or additional guarantees, please contact Veolia.

2. Inlet Pressure Determination: Inlet pressure is influenced by the downstream pressure requirements for the product and concentrate streams, the choice of counter-current or co-current operation, and the pressure drop across the stack.

3. Nominal Conditions: All specifications are given at nominal flow rates and 25°C. Refer to the Winflows projection software for design-specific verification.

4. Feed Water Specifications: Verify the feed water specifications for your design conditions using the Winflows projection software and the E-Cell Stack Owner’s Manual.

5. TEA (Total Exchangeable Anion): TEA represents the collective concentration of all anions present in the feed water, including contributions from OH-, CO2, and SiO2. It's essential to use Winflows to ensure the feed water TEA is acceptable under the specific operating conditions of the application. The tabulated value is provided at minimum flow and maximum temperature.

6. Feed Water Hardness Limits: The 1.0 ppm as CaCO3 feed water hardness limit applies specifically to standard counter-current flow operation. When operating in co-current flow, the allowable feed water hardness decreases to 0.1 ppm as CaCO3.

7. Silica Limit Considerations: The permissible silica limit decreases as flow exceeds nominal values. Additionally, if the feedwater hardness exceeds 0.5 ppm as CaCO3, the allowable silica limit decreases to 0.5 ppm.

8. Boron Feed Level: The boron feed level must not exceed 0.3 ppm as B whenever there is a silica guarantee requirement or a resistivity guarantee requirement above 10 MOhm-cm. Higher boron levels can compromise performance. In the absence of these requirements, the limit is 1.0 ppm boron.

9. Reverse Osmosis or Equivalent Feed Water: RO is recommended as it provides EDI feed water that is largely free of particulate matter, colloidal material, and high molecular weight organic substances that can foul ion exchange media. This is crucial as EDI stacks cannot be backwashed/fluidized to remove particulate matter. Systems with an open configuration between RO (or another source) and the E-Cell must include filters upstream of the E-Cell to protect against particulate contamination. Typically, a 5 µm absolute or 1 µm nominal filter is suitable.

10. APHA Color Standard: APHA refers to the color standard/scale named for the American Public Health Association and is defined by ASTM D1209.

Please refer to the Winflows projection software and other relevant documentation for detailed and specific information regarding the operation and maintenance of the E-Cell MK-3PharmHT Stack.

For more models, please click: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
