Ionpure LX-Z IP-LXM24Z-5 CEDI Module – High-Purity Water Treatment

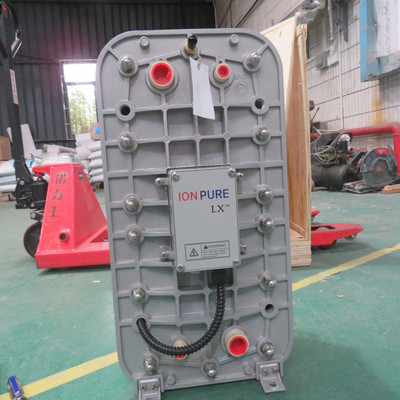

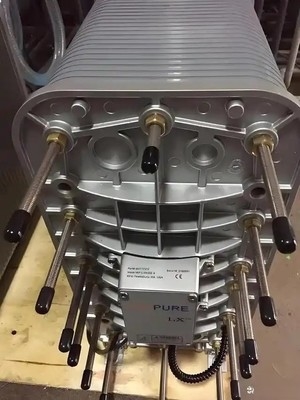

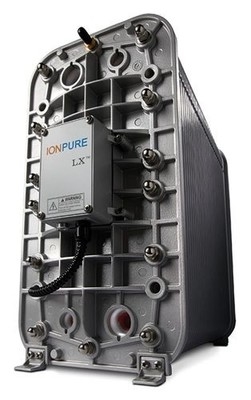

Ionpure LX-Z — Industrial CEDI Module

Product Overview​​

The ​​Ionpure® CEDI LX-Z IP-LXM24Z-5​​ is a high-performance ​​continuous electrodeionization (CEDI)​​ module designed for ​​chemical-free production of ultra-pure water (UPW)​​ in industrial and pharmaceutical applications. With a standard flow rate of ​​5 L/min​​, it delivers consistent ​​high-purity water (resistivity >15 MΩ·cm)​​ while eliminating the need for hazardous chemical regeneration.

​​Key Features & Benefits​​

✔ ​​High Purity Output​​ – Produces ​​<0.1 µS/cm conductivity water​​, meeting ​​USP, EP, and ASTM​​ standards for critical applications.
✔ ​​Chemical-Free Operation​​ – No acid/alkali regeneration required, reducing operational costs and environmental impact.
✔ ​​Robust & Long-Lasting​​ – Advanced ion-exchange membranes and durable spacers ensure ​​low maintenance​​ and ​​extended service life​​.
✔ ​​Energy Efficient​​ – Optimized electrical consumption for cost-effective operation.
✔ ​​Compact & Scalable​​ – Modular design allows easy integration into existing ​​pharma, power, and microelectronics​​ water systems.

​​Typical Applications​​

• ​​Pharmaceutical & Biotech​​ (WFI, purified water)
• ​​Power Generation​​ (boiler feedwater, demineralization)
• ​​Semiconductor & Electronics​​ (ultra-high-purity process water)
• ​​Food & Beverage​​ (ingredient water, CIP systems)

​​Why Choose Ionpure® CEDI LX-Z?​​

✅ ​​Proven Siemens/Suez Water Technology​​ – Reliable performance in global installations.
✅ ​​Lower Operating Costs​​ – Reduced chemical handling, waste disposal, and downtime.
✅ ​​Sustainable & Safe​​ – Supports green manufacturing and regulatory compliance.

LX-Z Series Features

• Wide range of ffow from 0.22 m3/h (1 gpm) to 10m3/h (44 gpm) per module

• Signiffcantly lower operating costs than conventional ion exchange

• Generates mixed-bed quality deionized water without the use of chemicals

• Continuous production instead of batch, with consistent quality

• Double O-ring seal guarantees* leak-free operation

• No need for acid/caustic, neutralization system or exchangable DI tanks

• Resin fflled concentrate for optimal performance and ease of operation

• Continuous operation

• Up to 0.05 ppm (total CI 2) feed

• Wetted materials of construction comply with NSF® 14 and NSF® 61 requirements

QUALITY ASSURANCE STANDARDS

CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.

About the operating environment of the IONPURE LX-Z module:

The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.

* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
