Ionpure CEDI LX-Z IP-LXM18Z-5 For Industrial Deionized Water Applications
Ionpure LX-Z — Industrial CEDI Module
Product Overview

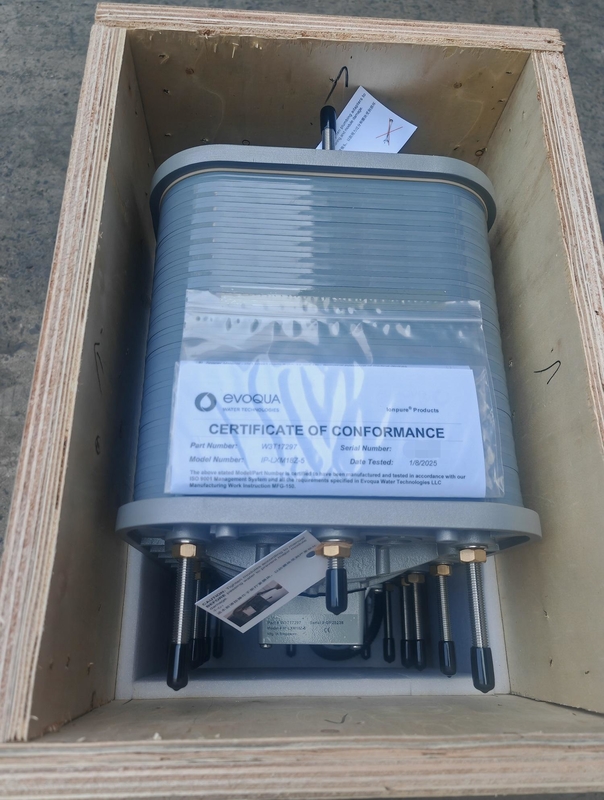

The Ionpure® LX-Z IP-LXM18Z is an industrial-grade Continuous Electrodeionization (CEDI) membrane stack engineered for high-purity water production. Manufactured by Ionpure (a subsidiary of SUEZ Water Technologies & Solutions), it integrates electrochemistry and ion-exchange technologies to deliver resin-quality water without chemical regeneration. It is widely deployed in power generation, electronics, pharmaceuticals, food and beverage processing, and laboratory applications.
Key Features & Innovations
Chemical-Free Operation
Eliminates acids, alkalies, and neutralizing systems, reducing operational hazards and waste disposal costs.
Patented "fully filled" concentrate chamber design requires no brine recirculation or salt addition.
Consistent High-Purity Output
Produces water with resistivity >16 MΩ·cm (surpassing mixed-bed ion exchange) and silica removal efficiency of 90–99%.
Adaptive rectifier optimizes DC voltage (0–240V) and current (0–6A) to stabilize output against feedwater variations.
Robust Engineering
Dual O-ring seals support leak-free operation at 7 bar (100 psi) pressure and 45°C (113°F) temperature.
Large-flow spacers and fouling-resistant resin enhance tolerance to feedwater contaminants.
Operational Efficiency
Independent power control per module enables continuous operation during maintenance.
System recovery rates of 90–95% reduce wastewater volume, lowering operational costs by >30% versus traditional ion exchange.
QUALITY ASSURANCE STANDARDS

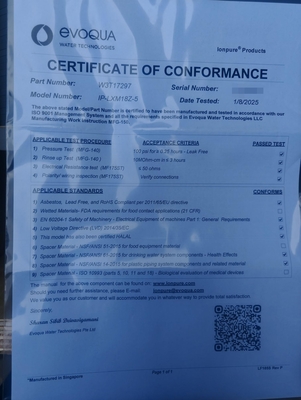

CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
| TYPICAL MODULE PERFORMANCE |
| Operating Parameters |
|
| Recovery |
90–95% |
| DC Voltage |
0–400 |
| DC Amperage |
1.0–6.0 |
| Product Water Quality |
|
| Product Resistivity |
Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal |
90–99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
| FEED WATER SPECIFICATIONS |
| Feed Water Conductivity Equivalent, including CO2 and Silica |
< 40 μS/cm |
| Feed Water Source |
RO permeate |
| Temperature |
5–45˚C (41–113˚F) |
| Inlet Pressure |
1.4–6.9 bar (20–100 psig) |
| Maximum Total Chlorine (as Cl2) |
< 0.05 ppm |
| Iron (as Fe) |
< 0.01 ppm |
| Manganese (as Mn) |
< 0.01 ppm |
| Sulfide (S2-) |
< 0.01 ppm |
| pH |
4–11 |
| Total Hardness (as CaCO3) |
< 1.0 ppm |
| Dissolved Organics (TOC as C) |
< 0.5 ppm |
| Silica (SiO2) |
< 1.0 ppm |
| PHYSICAL SPECIFICATIONS |
| Item Number |
L +/- 6.4 mm (0.25") |
C +/- 3.2 mm (0.13") |
| LXM04Z |
257 mm (10.12") |
146.8 mm (5.78") |
| LXM10Z |
347.7 mm (13.69") |
235.7 mm (9.28") |
| LXM18Z |
488.2 mm (19.22") |
353.8 mm (13.93") |
| LXM24Z |
601.7 mm (23.69") |
442.7 mm (17.43") |
| LXM30Z |
696.5 mm (27.42") |
531.3 mm (20.92") |
| LXM45Z |
907.3 mm (35.72") |
747.7 mm (29.44") |
| LX8000Z |
1062 mm (41.81") |
888 mm (34.95") |
| LX-Z FLOW RANGE AND WEIGHTS |
| Ordering Part # |
Model Number |
Minimum Flow Rate m3/hr (gpm) |
Design Flow Rate m3/hr (gpm) |
Shipping Weight kg (lbs)** |
Operating Weight kg (lbs) |
| W3T17286 |
IP-LXM04Z-5 |
0.22 (1.0) |
0.44-0.67 (2.0-3.0) |
59 (130) |
31 (69) |
| W3T17291 |
IP-LXM10Z-5 |
0.57 (2.5) |
1.1-1.65 (5.0-7.5) |
78 (171) |
51 (113) |
| W3T17297 |
IP-LXM18Z-5 |
1.02 (4.5) |
2.0-3.1 (9.0-13.5) |
99 (217) |
74 (163) |
| W3T17303 |
IP-LXM24Z-5 |
1.36 (6.0) |
2.8-4.2 (12.5-18.8) |
115 (254) |
92 (103) |
| W3T17312 |
IP-LXM30Z-5 |
1.70 (7.5) |
3.3-5.11 (15.0-22.5) |
132 (291) |
110 (243) |
| W3T17314 |
IP-LXM45Z-5 |
2.57 (11.3) |
5.1-7.67 (22.5-33.8) |
205 (451) |
157 (345) |
| W3T584543 |
IP-LX8000Z-5 |
3.13 (13.75) |
7.5 - 10 (33 - 44) |
225 (496) |
190 (419) |
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
