Ionpure CEDI LX-Z IP-LXM30Z-5 EDI Module For Semiconductor & Electronics

Ionpure CEDI LX-Z IP-LXM30Z-5 Electrodeionization Module

The IP-LXM30Z-5 is a high-performance industrial EDI (Electrodeionization) module from the IONPURE® LX-Z series, leveraging Continuous Electrodeionization (CEDI) technology to produce ultrapure water without chemical regeneration. Designed for large-scale industrial applications, it delivers consistent water quality exceeding mixed-bed resin performance while eliminating hazardous acid/base handling.

Key Features

• Chemical-Free Operation: Produces ultrapure water continuously without acid/alkali consumption or resin regeneration downtime.

• Robust Design: Dual O-ring seals ensure leak-free operation; high electrical insulation withstands rigorous industrial environments.

• Patented "Full-Fill" Technology: Eliminates need for brine recirculation pumps or salt dosing systems, reducing operational complexity.

• Stable Output: Maintains water resistivity >16 MΩ·cm and conductivity ≤0.06 μS/cm with 90–99% silica (SiO₂) removal (feed-dependent).

• High Efficiency: Operates at 90–95% recovery, reducing water waste by 30% compared to conventional ion exchange.

QUALITY ASSURANCE STANDARDS

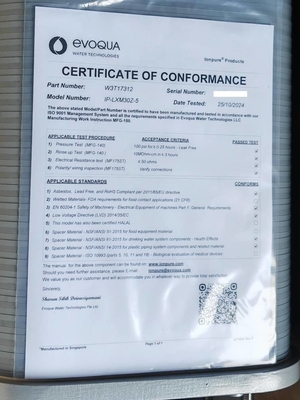

CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.

About the operating environment of the IONPURE LX-Z module:

The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.

* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
