Ionpure CEDI LX-Z IP-LXM10Z-5 For All High Purity Water Demands

Ionpure CEDI LX-Z IP-LXM10Z-5 For All High-purity Water Demands

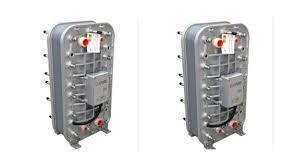

Ionpure LX-Z — Industrial CEDI Module

The Ionpure CEDI LX-Z IP-LXM10Z-5 is an advanced electrodeionization module designed to reliably and continuously produce high-purity water. As part of the SUEZ Water Technologies & Solutions LX-Z Series, this specific model is designed to provide a steady flow rate of 10 gallons per minute (gpm).

Its core technology combines ion exchange resins, ion-selective membranes, and direct current to continuously remove ions and weakly ionized species from feed water, typically after reverse osmosis. The process achieves high-purity water without the use of hazardous chemical regenerants, significantly reducing operating costs and environmental impact compared to traditional mixed-bed deionization.

Key features of the IP-LXM10Z-5 module include its rugged and compact LX-Z design, high ion and silica removal, excellent TOC removal, and stable long-term performance. The module is designed for demanding applications in industries such as pharmaceutical, microelectronics, power generation, and laboratories that require consistent ultrapure water. With low maintenance requirements and easy operation, the module is a cornerstone technology for modern high-purity water systems.

LX-Z Series Key Features & Advantages:

• Significant Cost Savings: Drastically reduces operating expenses versus conventional ion exchange systems.

• Chemical-Free Purity: Produces mixed-bed quality deionized water consistently without requiring acids, bases, or chemical regenerants.

• Continuous, Consistent Performance: Delivers stable, high-purity water output 24/7 through continuous operation, eliminating batch processing variability.

• Enhanced Reliability: Features a robust double O-ring seal design for leak-free performance and dependable long-term operation.

• Simplified Operation & Maintenance: Removes the need for hazardous chemical handling, neutralization systems, and frequent DI tank replacements.

• Optimized Design: User-friendly resin-filled concentrate chambers ensure peak efficiency and straightforward operation.

• Robust Feed Tolerance: Capable of processing feedwater containing total chlorine (Cl₂) levels up to 0.05 ppm.

• Flexible Flow Range: Offers broad operational flexibility, accommodating flow rates from 0.22 m³/h (1 gpm) to 7.67 m³/h (33.8 gpm) per module.

• Compliant Materials: All water-contacting components meet NSF®/ANSI 14 and 61 standards for material safety in plumbing and drinking water applications.

Quality Assurance & Certification:

• Rigorous Manufacturing: Each LX-Z module undergoes strict factory testing to ensure industry-leading performance standards.

• Certified Systems: Manufactured under ISO 9001 (Quality Management) and ISO 14000 (Environmental Management) certified systems.

• CE Mark Compliance: Modules carry the CE mark, signifying conformity with European health, safety, and environmental protection standards.

Optimal Operating Environment:

• Indoor Installation Required: Modules must be installed indoors, protected from direct sunlight.

• Temperature Control: Ambient temperature must not exceed 113°F (45°C) for stable, efficient operation.

• Enhanced Performance & Longevity: Maintaining these conditions ensures reliable water quality, maximizes module lifespan, and prevents premature degradation.

* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
