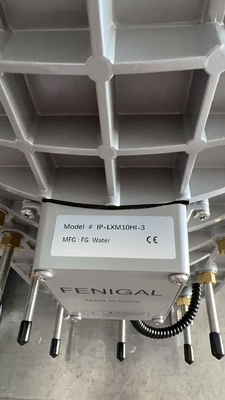

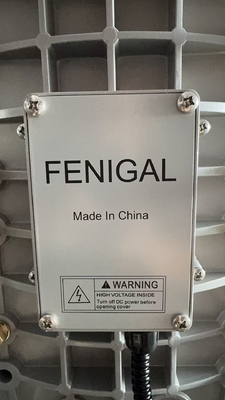

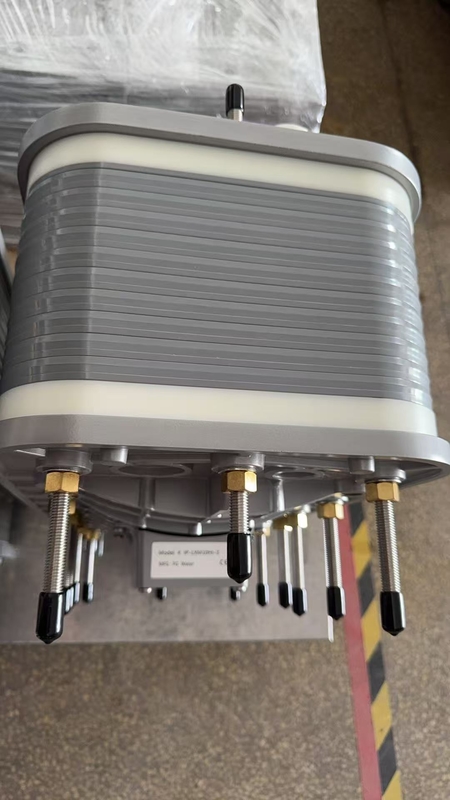

China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization

China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization

  • China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization
  • China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization
  • China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization
China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization
Product Details:
Place of Origin: China
Brand Name: China brand
Certification: CE
Model Number: IP-LXM10HI-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: T/T
Supply Ability: 60000 Units per Month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (147)
Ultrafiltration Membrane Modules (52)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (130)
Moon Balloon Light (131)
Tripod LED Balloons (109)
Inflatable Light Tower (56)
Terminal Block Accessories (6)
Detailed Product Description
Minimum / Nominal / Maximum: 0.55 / 1.1 / 1.65 M³/h Product Conductivity: < 0.1 MΩ·cm
Sanitization Temperature: 85° Maximum Feed Temperature: 60°
Recovery: 90–95% Advantages: Cost-effective
PH: 4-11 Application: Hot Water Sanitizable

China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization

Product Overview

Hot water sanitizable at 85°C ± 5°C
• Continuous operation up to 60°C
• US Patented technology for instant hot water
capability – no ramp up/down required
• Higher sanitization pressures 2.0 bar
• Double O-ring seal guarantees leak-free
operation
• Proven performance after 150+ sanitizations
• Concentrate recirculation and brine injection not

• Laboratory Semiconductor

Category Parameter Specification / Value Notes
Physical Specifications Shipping Weight 91 kg

Operating Weight 68 kg

Dimensions (D x H x W) 348 x 605 x 318 mm
Flow Rates Minimum / Nominal / Maximum 0.55 / 1.1 / 1.65 m³/h
Typical Performance Product Conductivity < 0.1 MΩ·cm

Silica (SiO₂) Removal 90 - 99 % Depends on feed water¹
Operating Parameters Recovery 90 – 95 %

Maximum Feed Pressure 7 bar

DC Voltage* 0 – 133 VDC *Depends on module size

DC Amperage 0 – 10 Amp

Pressure Drop (at Nominal Flow) 1.4 – 2.1 bar

Maximum Feed Temperature 60 °C

Sanitization Temperature 85 °C At 2.0 bar inlet pressure
Maximum Feedwater Specifications Feed Water Conductivity (incl. CO₂, SiO₂) < 40 µS/cm

Temperature 5 to 60 °C

Inlet Pressure 1.4 - 7 bar

pH 4 - 11

Maximum Contaminant Levels


- Free Chlorine (as Cl) < 0.02 ppm

- Iron (as Fe) < 0.01 ppm

- Manganese (as Mn) < 0.01 ppm

- Sulfide (as S⁻) < 0.01 ppm

- Total Hardness (as CaCO₃) < 1.0 ppm

- Dissolved Organics (TOC as C) < 0.5 ppm

- Silica (SiO₂) < 1.0 ppm

E-Cell EDI 技术性能示例


E-Cell EDI技术已成功应用于电力,石油,化工,钢铁,制药,电子等各个行业.

China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization 1

应用案例请点击:https://www.fgwater.com/Industries/


China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization 2


关于我们

FG水处理技术公司(www.fgwater.com)现为无锡芬尼格尔科技有限公司的有机组成部分,是一家集水处理设备设计,制造,贸易和运输为一体的高科技实体,服务于主要工业部门.


HAFE-FG水处理技术有限公司专注于水处理技术研究,设备开发与制造,检测及国际运输等业务,与中国高新技术开发区多家领先的大型或中小型原始设备制造商合作,致力于研发,生产和质量检测.

我们的主要产品包括各种水净化及处理设备,例如海水反渗透(SWRO)系统,苦咸水反渗透(BWRO),超滤(UF)系统,电去离子/EDI设备,介质压力过滤器和离子交换软化器.目前,我公司已成为食品饮料,制药,化工,电力,城镇供水,市政及工业废水处理等行业的主要水处理设备供应商,并出口到亚洲,欧洲,美洲,非洲等20多个国家和地区.

我们的客户

China Brand Cost-effective IP-LXM10HI-3 For Hot Water Sanitization 3

生产系统

我们的生产体系​​由遍布全国的多家行业专业合作工厂组成.部分工厂占地面积超过10,000平方米,其中包括5,000平方米的厂房及仓库以及1,500平方米的办公楼.我们所有的技术人员均拥有超过10年的水处理系统设计经验,因此我们能够为各种水净化和污水处理应用提供完美的解决方案.

自成立以来,公司始终视质量为企业生命.我们只选用最优质的部件,生产各种水处理系统.我们的系统易于使用和维护,即使在最恶劣的条件下也能保持高度可靠.



Tag:

Ultra Pure Water EDI Modules,

Reverse Osmosis EDI Modules,

97% Recovery EDI Modules
