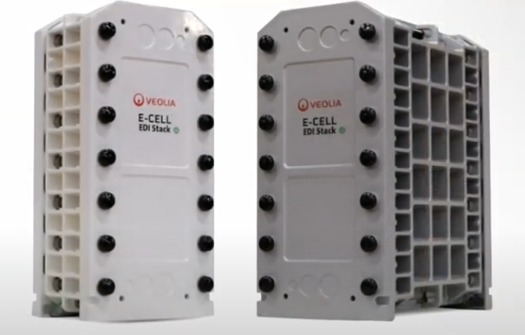

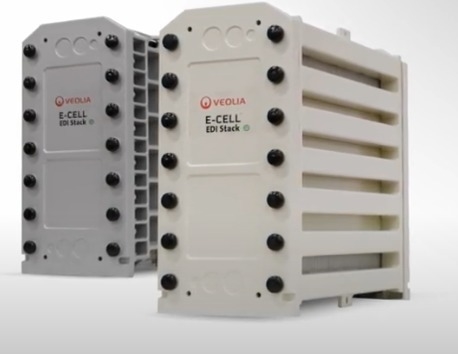

8.0m3/h Veolia MK-9 Suez EDI Stacks Boiler Feed Water For Power Plants
The Veolia MK-9 Suez EDI Stack is an advanced Electrodeionization (EDI) module engineered to deliver 8.0 cubic meters per hour (m³/h) of consistent, chemical-free ultrapure water for critical industrial processes. Building on the legacy of Suez Water Technologies & Solutions (now integrated into Veolia), the MK-9 represents the latest evolution in EDI technology, combining proven reliability with cutting-edge efficiency.
Key Features & Benefits:
-
Optimized Flow Rate (8.0 m³/h):
Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production at this specific flow rate. Ideal for central purification loops and continuous operations.
-
Veolia/Suez Advanced EDI Technology:
Incorporates next-generation membrane and spacer design (MK-9) for superior ion removal efficiency, achieving stable product water resistivity > 15 MΩ·cm (typically up to 18.2 MΩ·cm).
-
Zero Chemical Regeneration:
Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs, safety risks, and environmental footprint compared to traditional ion exchange.
-
Enhanced Energy Efficiency:
Optimized stack hydraulics and electrode configuration minimize power consumption per liter of purified water, lowering total operating costs (OPEX).
-
Robust Design & Reliability:
Engineered for 24/7 continuous operation with high resistance to scaling and fouling. Features durable construction materials ensuring long service life and reduced maintenance frequency.
-
Smart Operation & Integration:
Compatible with modern PLC/SCADA systems for real-time monitoring of performance parameters (voltage, current, pressure, resistivity), enabling predictive maintenance and optimized system control.
Typical Applications:
-
Pharmaceutical & Biotech (WFI pre-treatment, Purified Water)
-
Microelectronics & Semiconductor Manufacturing
-
High-Pressure Boiler Feedwater (Power Generation)
-
Laboratory Ultra-Pure Water Systems
-
Specialty Chemicals & Precision Rinsing
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia’s global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia’s worldwide service and support network.
The E-Cell MK-* module is an electrodeionization (EDI) module that uses electric current to deionize and polish reverse osmosis (RO) water. The MK-9 produces ultrapure water, suitable for today's most demanding water quality industries.
The E-Cell MK-9 module is used for
● Provide ultrapure water for industries such as power, electronics and general industry.
● Continuously produce ultrapure water of mixed bed water quality.
● No acid and base regeneration of the ion exchange resin in the module is required.
● Guaranteed to be leak-proof.
● No brine injection and concentrated water circulation are required, simplifying system design.
Typical applications
● Power generation (NOx, boiler feed water)
● Electronics
● General industry
| Parameter |
Value |
| Brand |
Veolia EDI |
| Exchangeable ppm |
36 |
| Inlet Pressure |
6.9 bar (100 psi) |
| Max Temperature |
40°C (104°F) |
| Pressure Drop |
2.4-3.4 bar (35-50 psi) |
| Recovery |
Up to 97% |
| Conductivity |
< 62 µs/cm |
| pH Range |
4-11 |
| Flow Rate |
8.0m3/h |
| Power Voltage |
0-400 VDC |
| Shipping Weight |
165 kg (364 lbs) |
| Application |
Water for Injection, Pharmaceutical, Laboratory |
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
