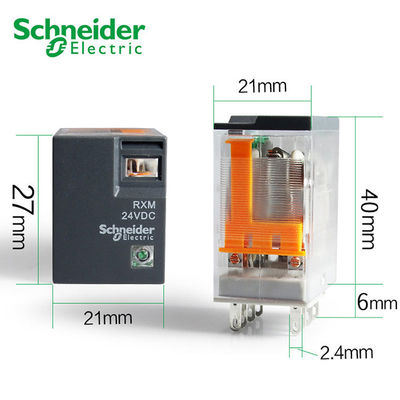

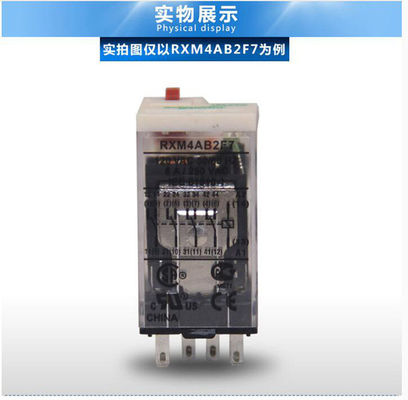

Industrial Control Electromagnetic Relay Plug In RXM2 8 14 Pin 6A 3A Coil 12V 24V 230V
Product Details
| Product Name: | Plug-in Electromagnetic Power Relay | Type: | Industrial Control Components |
|---|---|---|---|
| Series Name1: | Zelio | Coil Volt: | DC12V, DC24V, AC230V |
| Rated Current: | 12A,10A,6A,5A,3A | Contact Form: | 2 C/O, 3C/O, 4C/O |
| Highlight |
ac contactor switch,home ac contactor |
||
Product Description
Industrial Control Plug-in Electromagnetic Power Relay RXM2 8-pin, 14-pin 6A, 3A coil 12V, 24V, 230V Schneider Electric
Presentation of the range
The RXM miniature relay range comprises:
1 12 A relays with 2 C/O contacts, 10 A relays with 3 C/O contacts, 6 A relays with
4 C/O contacts, and 3 A “low level” relays with 4 C/O contacts. All these relays
have the same dimensions.
2 Sockets with mixed or separate contact terminals.
3 Protection modules (diode, RC circuit, or varistor) common to all sockets.
4 A metal maintaining clamp for all sockets.
5 A plastic maintaining clamp for all sockets.
6 A 2-pole bus jumper that can be used on sockets with separate contact terminals
in order to simplify cabling when creating an equipotential link between the coil
terminals.
7 Clip-in legends for all sockets except RXZE2M114 and RXZE2S114S.

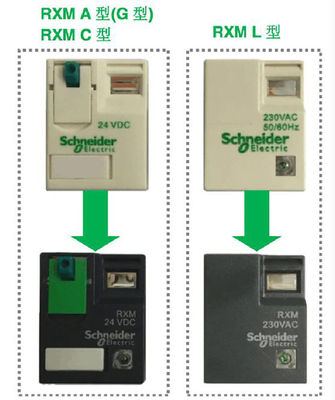

Relay description
1 Spring return pushbutton for testing the contacts (green: c, red: a).
2 Mechanical “relay status” indicator.
3 Removable lock-down door enabling forced maintaining of the contacts for test
sequences or maintenance purposes.
4 LED (depending on version) indicating the relay status.
5 Removable legend for relay identification.
6 Four notches for rail mounting adapter or panel mounting adapter with fixing lugs.
7 Eight, eleven, or fourteen Faston type pins.
8 Area by which the product can be easily gripped.
9 Mounting adapter enabling direct mounting of the relay on a panel.
10 Mounting adapter enabling direct mounting of the relay on a DIN rail.

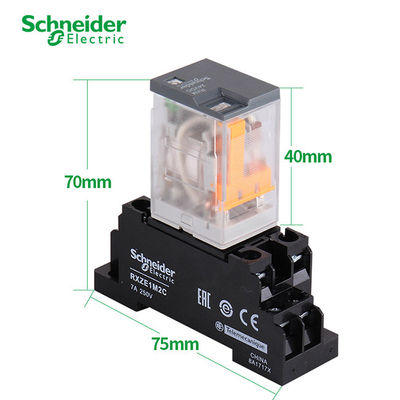

Socket description
Sockets with mixed contact terminals (1)
1 Connection by screw clamp terminals or screw connector.
2 Fourteen female contacts for the relay pins.
3 Location for protection modules.
4 Locking components for plastic and metal maintaining clamps.
5 Locating slot for mounting on DIN rail with its compression spring or fixing clip.
6 Two or four fixing holes for panel mounting.
|
Product Series |
Zelio Relay |
|---|---|
|
Serial Number |
Small |
|
product type |
Plug-in relay |
|
Product short name |
RXM |
|
Contact type |
4 OC |
|
Control loop voltage |
24 V DC |
|
Rated load current in the housing [Ithe] |
6 A on -40...55 °C |
|
LED status |
Have |
|
Control type |
Lock test button |
|
Utilization factor |
20% |
|
Pin type |
Flat |
|---|---|
|
Rated insulation voltage [Ui] |
250 V compliant with IEC |
|
Rated impulse withstand voltage [Uimp] |
2.5 kV at 1.2/50 μs |
|
Contact material |
AgNi |
|
Rated operating current [Ie] |
3 A on 28 V (DC) NC IEC compliant |
|
Maximum switching voltage |
250 V compliant with IEC |
|
Resistive rated load |
6 A on 250 V AC |
|
Maximum switching capacity |
1500 VA/168 W |
|
Minimum switching capability |
170 mW on 10 mA, 17 V |
|
Working rating |
<=1200 times/hour underload |
|
Mechanical life |
10000000 times |
|
Electrical life |
100000 times for resistive (load) load |
|
Average coil consumption in W |
0.9 W |
|
Pressure drop threshold |
>= 0.1 Uc |
|
Operate time |
20 ms |
|
Release time |
20 ms |
|
Average coil resistance |
650 Ω on 20 °C +/- 10 % |
|
Rated operating voltage limit |
19.2...26.4 V DC |
|
Safe and reliable data |
B10d = 100000 |
|
Type of protection |
RT I |
|
Test level |
Class A |
|
Operating position |
any position |
|
CAD total height |
82.8 mm |
|
CAD total depth |
80.35 mm |
|
product weight |
0.037 kg |
|
Equipment introduction |
Product (non-parts) |
|
Insulation performance |
1300 V AC contact and micro-break insulation |
|---|---|
|
certified product |
UL |
|
Standards compliant |
EN/IEC 61810-1 |
|
Storage ambient temperature |
-40...85 °C |
|
Ambient temperature |
-40...55 °C |
|
Vibration resistant |
3 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, in operation |
|
IP protection level |
IP40 complies with EN/IEC 60529 |
|
Impact resistance |
10 gn for operation |
|
Pollution level |
2 |
Applications
Market target
-
Industrial machines
-
Machines and building or medical equipement
-
Packaging machines
-
Textile machines
-
HVAC
Applications
-
Simple hard-wired logic control system cycles
-
Extra feature for industrial PLCs
Please send us email or leave us message online for more information and product availability.
