| Place of Origin: | China |
| Brand Name: | Chint |
| Certification: | CE,CCC etc. |
| Model Number: | ND16 |
| Minimum Order Quantity: | 12pcs |
|---|---|
| Price: | USD1~USD2/unit |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days or bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50,000pcs/month |
| Product Name: | ND16 Indicator Lamp | Type: | Pilot Device |
|---|---|---|---|
| Control Volt: | 380VAC, 220VDC | Mechanical Life: | 10 Million Cycles |
| Electrical Life: | 300 Thousand Cycles | Environment Temperature: | -15~60 Degree Celsius |
| Lamp: | LED | ||
| High Light: | ac contactor switch,home ac contactor |
||

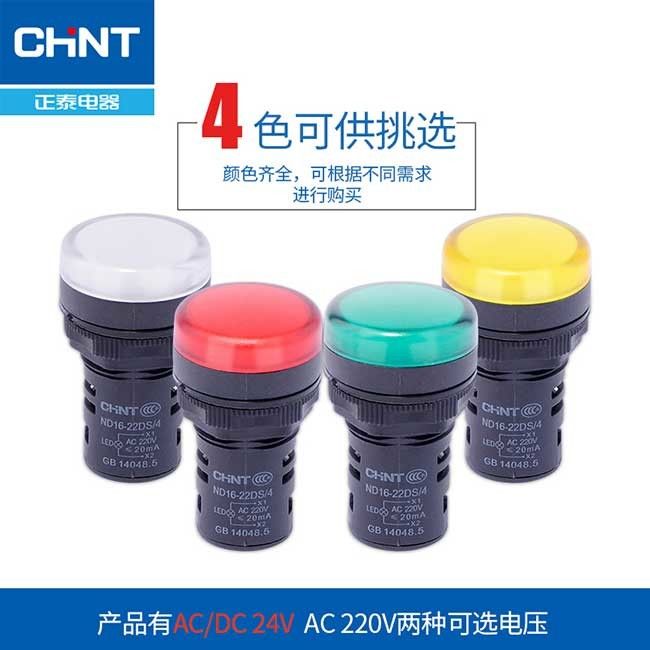

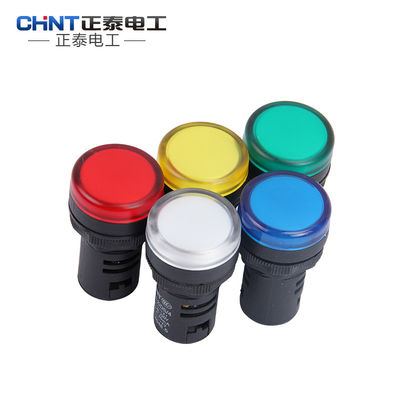

CHINT ND16 Series Indicator Lamp Buzzer Red,Green,Blue,Yellow,White 12v,24v,110v,230v LED Line AC380VDC220V
characteristic
Compliance with IEC, CCC certification standards
IP65, or IP66 (with protective cover)
Operating temperature -25°C to +70°C
Screw fastening method
Complete product range
Modular product design for custom installation and use
Warranty period: 18 months
Advantage
Simple and refined
Rugged and durable metal series for easy operation and quick and easy installation
application
Industry: Machine Manufacturing, Control System Panel Manufacturing, etc.
Downstream applications: transmission and distribution panels, utilities, buildings, airports, etc.
Working & mounting conditions
3. Technical data
2.1 Ambient temperature is -5℃~+40℃, the average temperature during 24 hours couldn't exceed +35℃.
2.2 Altitude: ≤2000m.
2.3 Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40℃; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20℃, the relative humidity is up to 90%. As for dews, which contingently appear due to change of temperature, special steps should be taken.
2.4 Pollution degree: 3
2.5 Overvoltage category: Ⅲ
|
Product Series |
ND16 |
|---|---|
|
product type |
Complete set of indicators |
|
Product short name |
ND16 Indicator Lamp |
|
Border material |
plastic |
|
Mounting diameter |
22 mm |
|
Separate sales quantity per piece |
1 |
|
Operating head or lens color |
red |
|
Light source |
LED bulb |
|
Lamp holder |
Built-in BA 9s base |
|
Rated power supply voltage [Us] |
24 V AC/DC 50/60 Hz |
|
device installation |
Mounting hole - Diameter: 22.5 mm |
|---|---|
|
signal type |
Constantly bright |
|
Power supply voltage range |
0.8...1.1 V AC/DC |
|
model |
XCE |
|
Protection process |
TC |
|---|---|
|
Storage ambient temperature |
-40...70 °C |
|
Operating temperature |
-25...55 °C |
|
Overvoltage type |
Class I in accordance with IEC 60356 |
|
IP protection level |
IP66 in accordance with IEC 60529 |
|
IK protection level |
IK05 complies with IEC 50102 |
|

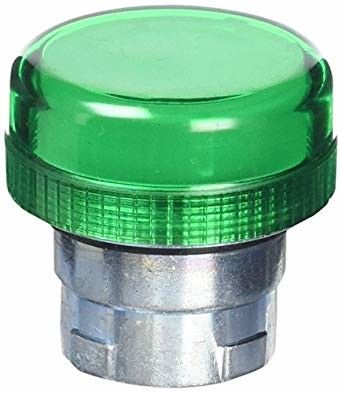

Product Series |
ND16 |
|---|---|
|
product type |
Complete set of indicators |
|
Product short name |
XB2B |
|
Border material |
plastic |
|
Mounting diameter |
22 mm |
|
Separate sales quantity per piece |
1 |
|
Operating head or lens color |
green |
|
Light source |
LED bulb |
|
Lamp holder |
Built-in BA 9s base |
|
Rated power supply voltage [Us] |
24 V AC/DC 50/60 Hz |
|
device installation |
Mounting hole - Diameter: 22.5 mm |
|---|---|
|
signal type |
Constantly bright |
|
Power supply voltage range |
0.8...1.1 V AC/DC |
|
model |
XCE |
|
Protection process |
TC |
|---|---|
|
Storage ambient temperature |
-40...70 °C |
|
Operating temperature |
-25...55 °C |
|
Overvoltage type |
Class I in accordance with IEC 60356 |
|
IP protection level |
IP66 in accordance with IEC 60529 |
|
IK protection level |
IK05 complies with IEC 50102 |
