| Place of Origin: | China |
| Brand Name: | Winston/ OEM |
| Certification: | CE,CCC etc. |
| Model Number: | WCT-63A-2P 2NO manual |
| Minimum Order Quantity: | 12pcs |
|---|---|
| Price: | USD8~USD25/unit |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days or bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs/month |
| Product Name: | AC Modular Contactor | Type: | Contactor |
|---|---|---|---|
| Mechanical Life: | 10 Million Cycles | Electrical Life: | 300 Thousand Cycles |
| Environment Temperature: | -5~60 Degree Celsius | Color: | White |
| Rated Current: | 63A | Rated Voltage: | 220/230 380/400 |
| Highlight: | contactor modular 63a,3 Pole modular contactor,2 Pole modular contactor |
||
General Introduction

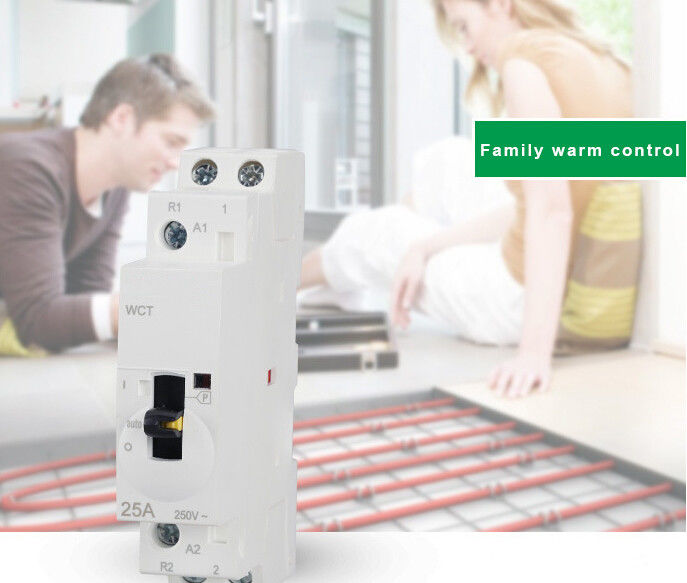

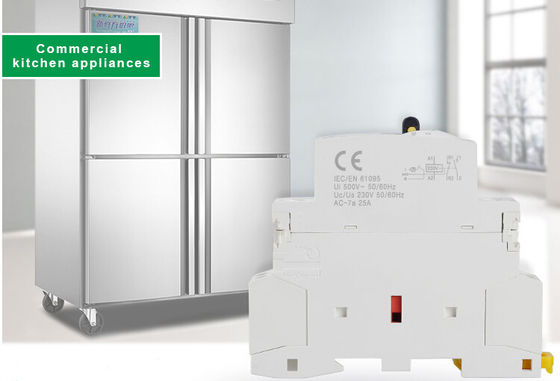

WCT series home AC contactor is a kind of control electric appliance which is used for long distance switch on and break off sense or low load. Electric resistance furnace, household appliances and similar application.
| 2P | Rating (In) AC7a | Control voltage (VAC)(50Hz) | Contact | |
| 63A | 24 | 2NO | 4 | |
| 220...240 | 2NO | 4 |
|
Power circuit
|
||
|
Voltage Rating(Ue) 1P, 2P
|
250VAC
|
|
|
3P, 4P
|
400VAC
|
|
|
Endurance(O-C)
|
||
|
Electrical
|
100000 cycles
|
|
|
Maximum number of switching operation a day
|
100
|
|
|
Additional characteristics
|
||
|
Insulation voltage(Ui)
|
500VAC
|
|
|
Pollution degree
|
2
|
|
|
Rated impulse withstand voltage(Uimp)
|
2.5kV(4 kV for 12/24/48V AC)
|
|
|
Degree of protection
(IEC 60529) |
Device only
|
IP20
|
|
Device in modular enclosure
|
IP40
|
|
|
Tropicalization (IEC 60068-1)
|
Treatment 2(relative humidity 95% at 55℃)
|
|
|
WCT contactors-50Hz
|
||||||
|
Raring(In)
|
Control voltage(V AC)(50Hz)
|
Consumption
|
Max.
power |
|||
|
AC7a
|
AC7b
|
Holding
|
Inrush
|
|||
|
2P
|
63A
|
20 A
|
24
|
4.6 VA
|
34 VA
|
1.6 W
|
|
220...240
|
4.6 VA
|
34 VA
|
1.6 W
|
|||
