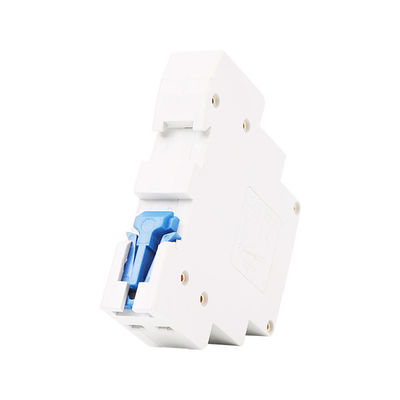

Modular 1 3 4 2 Pole AC Contactor , Home AC Contactor 20A 25A 40A 63A 230V/400V IEC 61095
Product Details
| Rated Current: | 20A, 25A, 40A, 63A | Rated Voltage: | 230/400VAC |
|---|---|---|---|
| Pole: | 2P,4P, 18mm-36mm-54mm | Insulation Voltage: | 500V |
| Install: | DIN Rail Mount | ||
| Highlight |
ac contactor switch,electrical control equipment |
||
Product Description

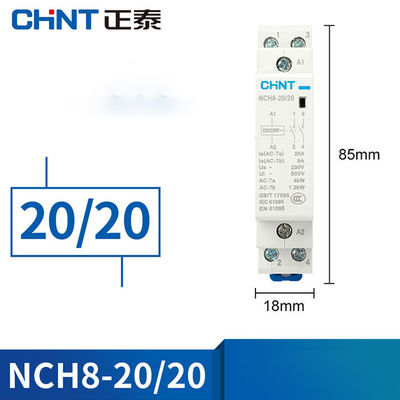

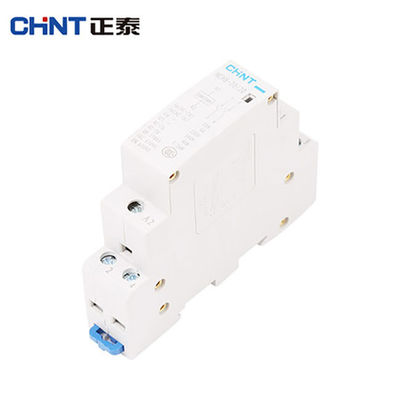

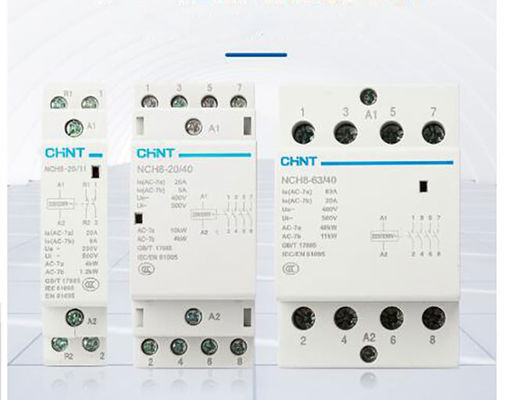

NCH8 1,2,3,4 Pole 20A,25A,40A,63A 230V/400V Modular AC Contactor Chint Home or Industrial Use IEC 61095
General
- Product standard IEC61095/GB17885
- Product Certification CCC CE
- Product poles 1,2,3,4
- Rated current 16,25,40A,63A,100A
- Main contact type NO, NC, NO+NC
- Protection class IP20B (terminal), IP40 (installed in the distribution box)
- Ambient temperature -5 ° C to +60 ° C (When the contactor is installed in a distribution box with an internal temperature range of 50 ° C to 60 ° C, there is a need to use a spacer between the contacts , its product number is A9A27062)
- Storage ambient temperature -40°C～+70°C
- Minimum noise
- Indicate mechanical position
Features
1.1 Electric ratings: up to 20A, 25A, 40A, 63A, 230V, 400V AC50/60Hz;
1.2 Utilization category: AC-1, AC-7a, AC-7b; 1
1.3 Standard: IEC/EN 61095
2.1 Compact design and modularization design;
2.2 Insulation material with excellent performances has been adopted to enhance the operation security to a great extent;
2.3 Elegant appearance. A mounting instruction diagram is appended for convenient operation; 2.4 No noise during operation
| Range of product |
Chint Modular
|
|---|---|
| product name |
modular AC Contactor
|
| product type |
Contactor
|
| Product short name |
NCH8
|
| Applications |
Motor heating and lighting
|
| Poles |
1P
|
| Rated operating current [Ie] |
25 A AC-7A
8.5 A AC-7B |
| Loop contact type |
1 NO
|
| Network Type |
AC
|
| Control type |
remote control
|
| Control loop voltage |
230...240 V AC 50 Hz
|
| Network frequency |
50 / 60Hz
|
|---|---|
| Rated working voltage [Ue] |
250 V AC 50 Hz
|
| Maximum power |
1.2 W on 250 V AC
|
| Rated insulation voltage [Ui] |
500 V AC 50/60 Hz
|
| Rated impulse withstand voltage [Uimp] |
4 kV
|
| Control signal type |
Self-holding
|
| operating frequency |
Number of switching operations / per day
|
| Local signal indication |
Trip indicator window
|
| Pulling power (VA) |
2.7 VA
|
| (~50Hz pull-in) power consumption (VA) |
9.2 VA
|
| Installation type |
Locking clip locking
|
| Installation method |
35 mm DIN rail
|
| Width (multiple of 9mm) |
2
|
| height |
81 mm
|
| width |
18 mm
|
| depth |
60 mm
|
| colour |
white
|
| Mechanical life |
1000000 times
|
| Electrical life |
100000 times IEC/EN 61095 25 A 50 Hz AC-7A
30000 times IEC/EN 61095 8.5 A 50 Hz AC-7B 30000 times IEC/EN 61095 50 Hz AC-7C 100000 EN/IEC 60947-4-1 50 Hz AC-1 30000 times EN/IEC 60947-4-1 50 Hz AC-3 30000 times EN/IEC 60947-4-1 50 Hz AC-5A 30000 times EN/IEC 60947-4-1 50 Hz AC-5B |
| Wiring ability |
Control circuit: tunnel terminal 2 cable 1.5 mm2 single strand hard wire
Power circuit: tunnel terminal 1 cable 1...4 mm2 cord Power circuit: tunnel terminal 1 cable 1.5...6 mm2 single strand hard wire Control circuit: tunnel terminal 1 cable 1.5...2.5 mm2 single strand hard wire Control circuit: tunnel terminal 2 cable 1.5...2.5 mm2 cord |
| Tightening torque |
Control loop: 0.8 Nm
Power circuit: 0.8 Nm |
